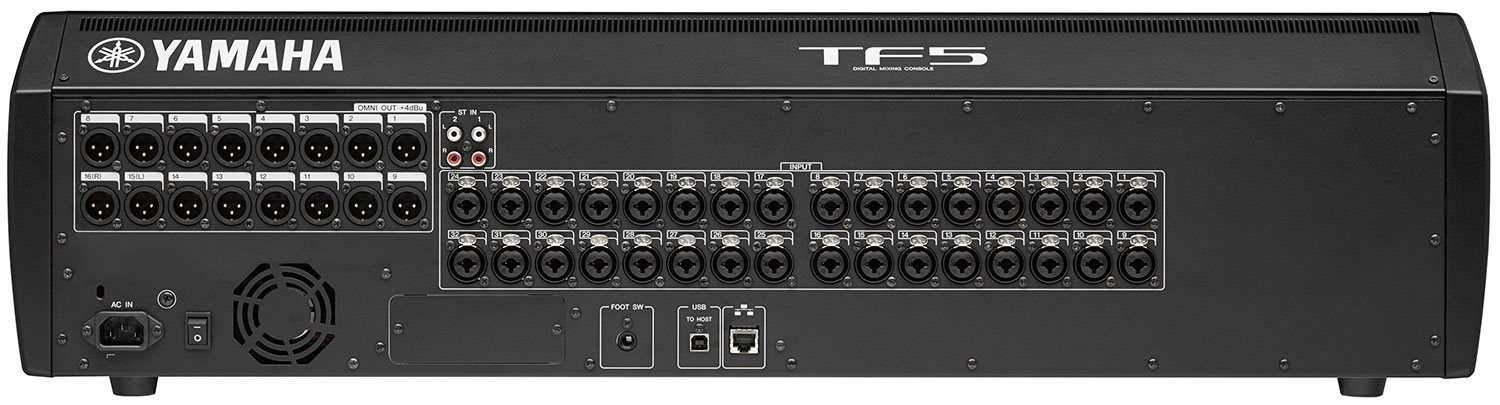

Yamaha TF5 Digital Mixing Console
Yamaha TF5 Digital Mixing Console
The TF Series Digital Mixing Consoles allow sound engineers to respond to the music; and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. The new TouchFlow Operation makes it easy for experienced engineers and newcomers alike to achieve a perfect mix in no time, while recallable D-PRE preamplifiers support sound quality that will satisfy the most discerning professional ears. High performance processors and effects, advanced live recording features, and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications.
Specifications:
- TouchFlow Operation™, Gesture Type
- Up to 48 Inputs
- 20 AUX (8 Mono, 6 Stereo)
- 8 DCA Groups
- 3 Master (L/R +Sub)
- 33 Motorised 100mm Faders
- 32 Recallable D-PRE™ preamplifiers on board
- Innovative GainFinder™
- 16 XLR Outputs
- Dynamics Effect Processors on each input channel
- 1-knob COMP™ and 1-knob EQ™
- 4 Band Parametric EQs on all Input channels, Master and AUX 1-8
- 31-Band Flex 12 GEQ on Master and AUX 1-8
- 2 SPX Type Global Effects
- 6 Insertable Effect Processors
- 34 x 34 channel recording and playback via USB 2.0
- 2 x 2 channel recording and playback with a USB storage device
Description
Yamaha TF5 Digital Mixing Console
The TF Series Digital Mixing Consoles allow sound engineers to respond to the music; and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. The new TouchFlow Operation makes it easy for experienced engineers and newcomers alike to achieve a perfect mix in no time, while recallable D-PRE preamplifiers support sound quality that will satisfy the most discerning professional ears. High performance processors and effects, advanced live recording features, and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications.
Specifications:
- TouchFlow Operation™, Gesture Type
- Up to 48 Inputs
- 20 AUX (8 Mono, 6 Stereo)
- 8 DCA Groups
- 3 Master (L/R +Sub)
- 33 Motorised 100mm Faders
- 32 Recallable D-PRE™ preamplifiers on board
- Innovative GainFinder™
- 16 XLR Outputs
- Dynamics Effect Processors on each input channel
- 1-knob COMP™ and 1-knob EQ™
- 4 Band Parametric EQs on all Input channels, Master and AUX 1-8
- 31-Band Flex 12 GEQ on Master and AUX 1-8
- 2 SPX Type Global Effects
- 6 Insertable Effect Processors
- 34 x 34 channel recording and playback via USB 2.0
- 2 x 2 channel recording and playback with a USB storage device
