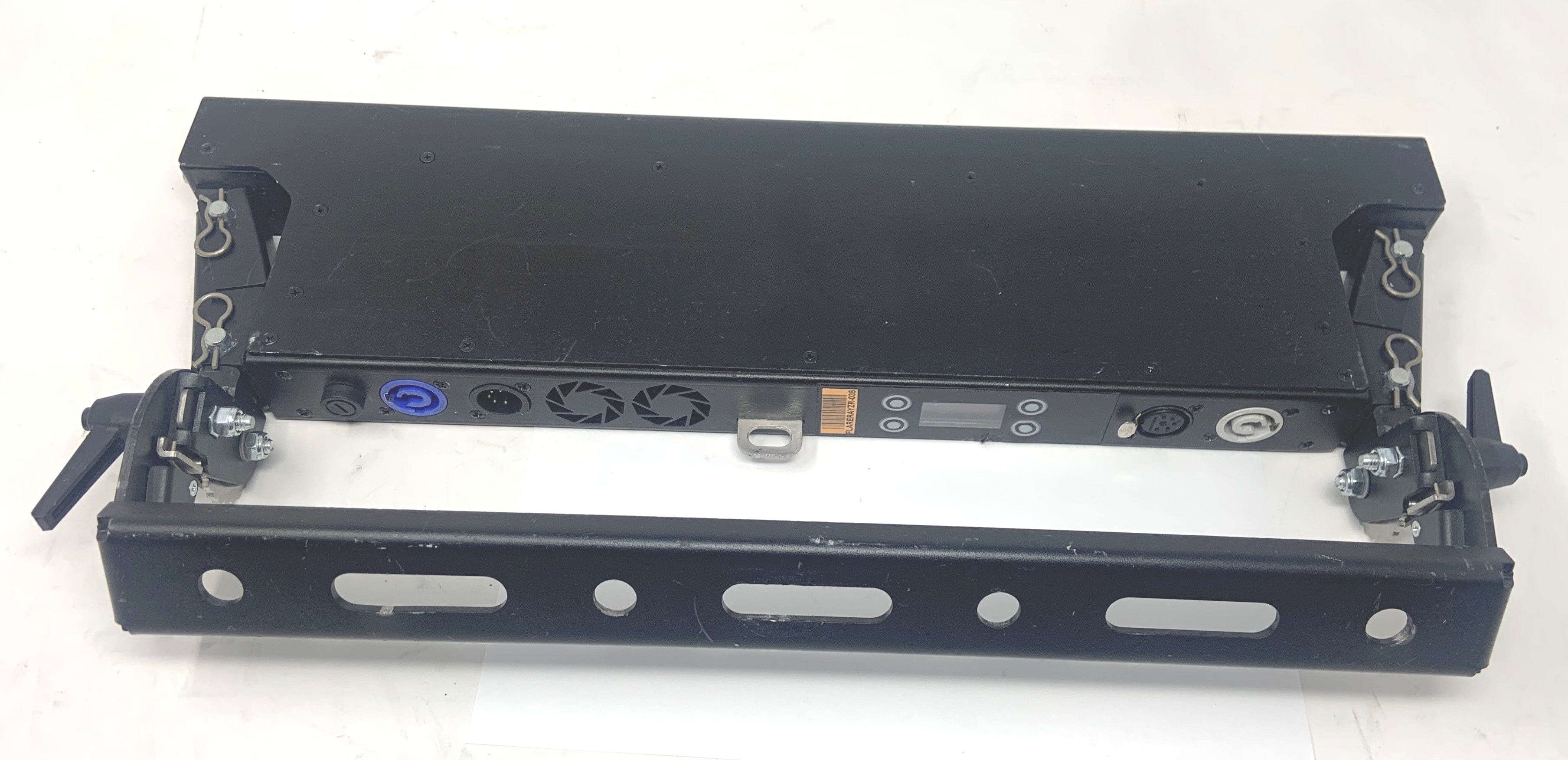

Solaris Flare RayZR RGBW Linear LED Strobe 50cm
Solaris Flare RayZR RGBW Linear LED Strobe 50 Centimetre
The TMB Solaris Flare Q+ Rayzr is a 18 or 36 x 10 Watt RGBW LED Linear Pixel-Mapping Luminaire that is available in either 20" or 40" versions, equipped with a 36 degree beam angle, 1200Hz Refresh Rate, and 16-Bit or 8-Bit intensity control.
Features:
- Available in 50 cm. 18 10W RGBW LEDs, 3-pixel groups.
- Q+ Technology™ for virtually silent operation + increased brightness!
- Function, Colors, and Brightness consistent with other Flare Q+ fixtures. Retrofit in existing systems.
- Mounting options for end-to-end alignment, hanging, wall mounting, and pipe attachment
- 36° beam angle optimized for most applications. 22°, 54°, and 70° options available.
- Intense, deep reds and blues. Ultra-bright greens. Brilliant camera-friendly whites.
- Simultaneous color wash and strobe in ONE fixture. All the features of the fabulous Flare.
Specifications:
- Light Sources: 18 CREE LEDs (Divided into 6 pixels, 50 CM Version)
- Beam Spread: 36 Degrees
- Colours: Red, Green, Blue, White
- Average Colour Wavelength: Red: 625 nm, Green: 530 nm, Blue: 460 nm, White: >5700K
- Refresh Rate: 1200 Hz
- Intensity Control: 16-Bit or 8-Bit
- Control: RDM, DMX-512, Demo, Manual Mode. Light output and fan controlling modes - Turbo (full output), Quiet (theatre mode), Compatible (matches regular Flare)
- AC Power: 100-277 VAC Universal Input, 50-60 Hz
- Fuse: 2A 250V slow-blow (5x20mm) (50CM Version)
- Cooling: Air cooling + fan
- Operating Temperatures: -4 °F - +104 °F (-20 °C - +40 °C)
- DMX Channels: 3-32 depending on control mode (50CM Version) / 3-56 depending on control mode (100CM Version)
- DMX Connectors: Input 5-pin XLR male, Thru 5-pin XLR female
- DMX Pin Configuration: pin 1 shield, pin 2 (data-), pin 3 (data+), pin 4 n/a, pin 5 n/a
- Max. Power Draw: 200W (50CM Version)
- Power Connectors: Input PowerCON 20A blue
- Fixing: Adjustable yoke
- Unit Dimensions: 19.60" x 1.61" x 7.91" (50CM Version)
- Unit Weight: 8 LB
$895.00
Solaris Flare RayZR RGBW Linear LED Strobe 50cm—
$895.00
Description
Solaris Flare RayZR RGBW Linear LED Strobe 50 Centimetre
The TMB Solaris Flare Q+ Rayzr is a 18 or 36 x 10 Watt RGBW LED Linear Pixel-Mapping Luminaire that is available in either 20" or 40" versions, equipped with a 36 degree beam angle, 1200Hz Refresh Rate, and 16-Bit or 8-Bit intensity control.
Features:
- Available in 50 cm. 18 10W RGBW LEDs, 3-pixel groups.
- Q+ Technology™ for virtually silent operation + increased brightness!
- Function, Colors, and Brightness consistent with other Flare Q+ fixtures. Retrofit in existing systems.
- Mounting options for end-to-end alignment, hanging, wall mounting, and pipe attachment
- 36° beam angle optimized for most applications. 22°, 54°, and 70° options available.
- Intense, deep reds and blues. Ultra-bright greens. Brilliant camera-friendly whites.
- Simultaneous color wash and strobe in ONE fixture. All the features of the fabulous Flare.
Specifications:
- Light Sources: 18 CREE LEDs (Divided into 6 pixels, 50 CM Version)
- Beam Spread: 36 Degrees
- Colours: Red, Green, Blue, White
- Average Colour Wavelength: Red: 625 nm, Green: 530 nm, Blue: 460 nm, White: >5700K
- Refresh Rate: 1200 Hz
- Intensity Control: 16-Bit or 8-Bit
- Control: RDM, DMX-512, Demo, Manual Mode. Light output and fan controlling modes - Turbo (full output), Quiet (theatre mode), Compatible (matches regular Flare)
- AC Power: 100-277 VAC Universal Input, 50-60 Hz
- Fuse: 2A 250V slow-blow (5x20mm) (50CM Version)
- Cooling: Air cooling + fan
- Operating Temperatures: -4 °F - +104 °F (-20 °C - +40 °C)
- DMX Channels: 3-32 depending on control mode (50CM Version) / 3-56 depending on control mode (100CM Version)
- DMX Connectors: Input 5-pin XLR male, Thru 5-pin XLR female
- DMX Pin Configuration: pin 1 shield, pin 2 (data-), pin 3 (data+), pin 4 n/a, pin 5 n/a
- Max. Power Draw: 200W (50CM Version)
- Power Connectors: Input PowerCON 20A blue
- Fixing: Adjustable yoke
- Unit Dimensions: 19.60" x 1.61" x 7.91" (50CM Version)
- Unit Weight: 8 LB
