Shure P3T=-G20 Shure P3T=-G20 PSM300 Wireless Transmitter - G20 Band
Shure P3T=-G20 Shure P3T=-G20 PSM300 Wireless Transmitter - G20 Band
The P3T is a wireless transmitter for use with the PSM 300 Personal Monitor System.

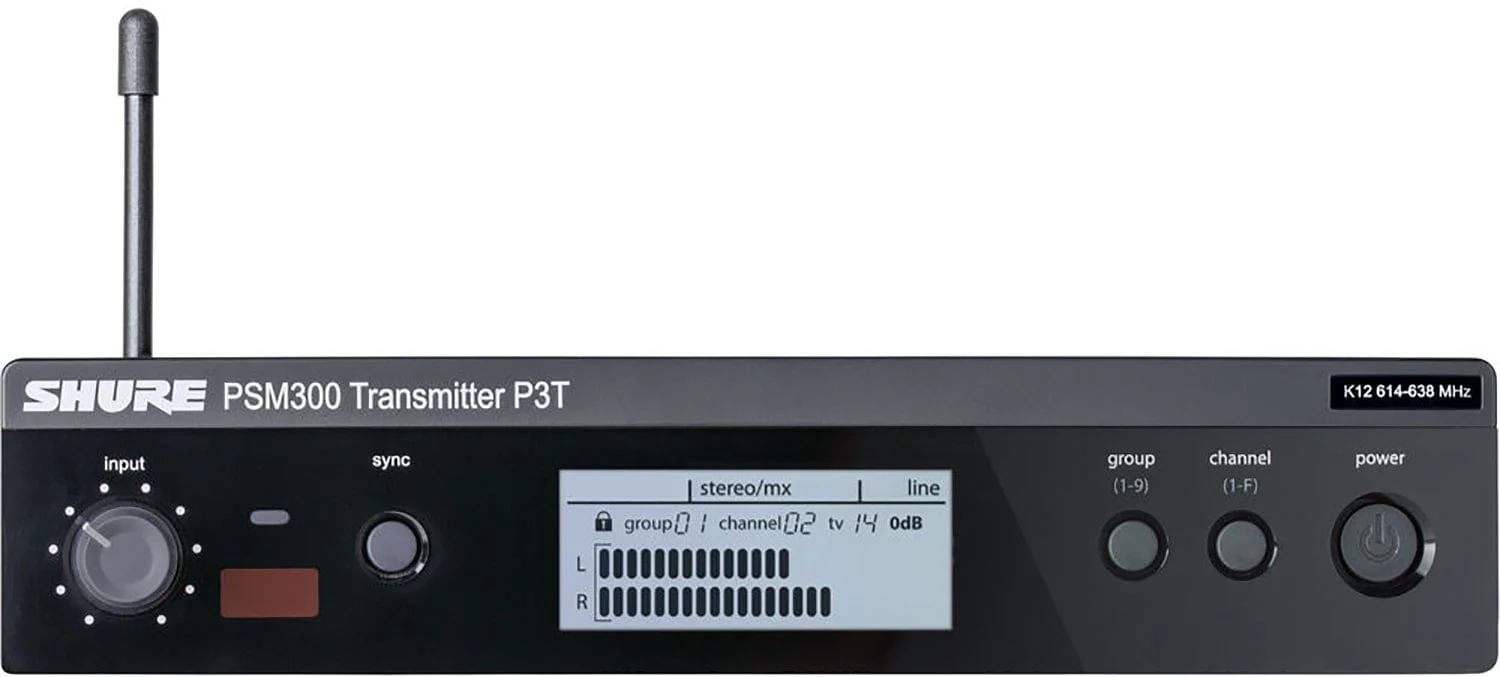

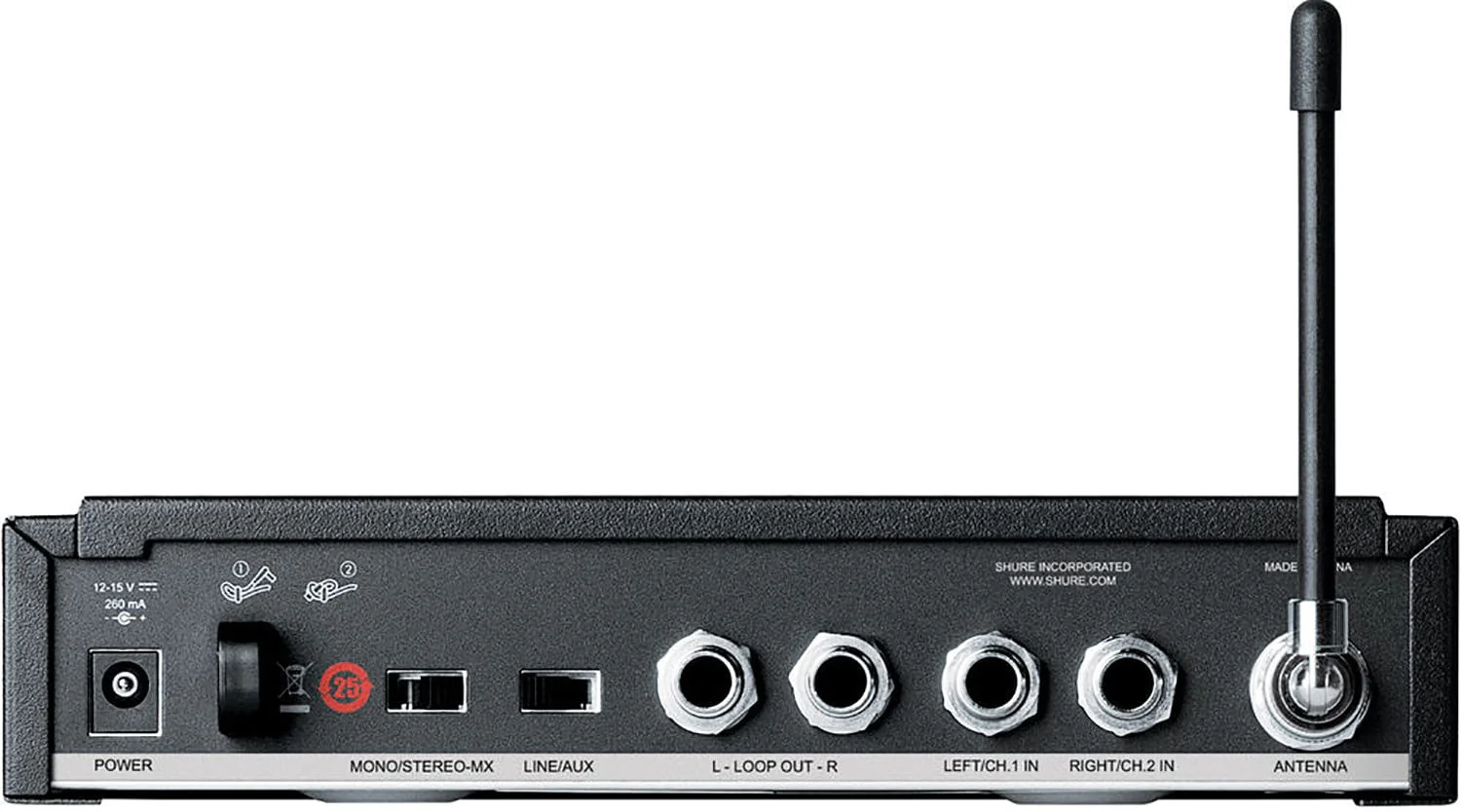

Dependable wireless transmission and 24-bit digital audio deliver a superior personal monitoring mix for every performance. Send 2 channels of audio to a bodypack receiver up to 90 meters away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts. The rugged, half rack transmitter features easy front-panel controls including one-touch sync and input level knob to enable quick setup and easy operation. Rear-panel balanced inputs and loop outputs provide versatile connectivity to audio sources and other P3T units.
Features:
- Single channel, half-rack transmitter with included rack mount kit
- Sends a stereo or mono mix wirelessly to performers onstage
- Rock-solid wireless connection to PSM300 receivers over a 90 meter range
- One-touch IR sync instantly links transmitter to receiver
- Up to 30 mW output power (region dependent)
- Up to 24 MHz tuning range (region dependent)
- ¼” (6.3 mm) TRS balanced inputs and loop outputs
- High-contrast LCD screen with left/right audio output meters
- Detachable ¼ wave antenna
- Selectable line/aux level
Specifications:
- RF Output Power: 10, 20, 30 mW Note: varies by region
- RF Output Impedance: 50 Ω (typical)
- Net Weight: 783 g (27.6oz.)
- Dimensions: 43 × 198 × 172 mm (1.7 × 7.8 × 6.8 in.), H × W × D
- Power Requirements: 12–15 V DC, 260 mA maximum
- Audio Input:
- Connector Type: 6.35 mm (1/4") TRS
- Polarity: Tip positive with respect to ring
- Configuration: Electronically balanced
- Impedance: 40 kΩ (actual)
- Nominal Input Level: Switchable, +4 dBu, -10 dBV
- Maximum Input Level: +4 dBu: +22 dBu, -10 dBV: +12.2 dBu
- Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground
- Phantom Power Protection: Up to 60 V DC
- Audio Output:
- Connector: Types 6.35 mm (1/4") TRS
- Configuration: Electronically balanced
- Impedance: Connected directly to inputs
