Sennheiser EM6000DANTE 2x UHF Receiver 470-714Mhz

Sennheiser EM6000DANTE 2x UHF Receiver 470-714Mhz

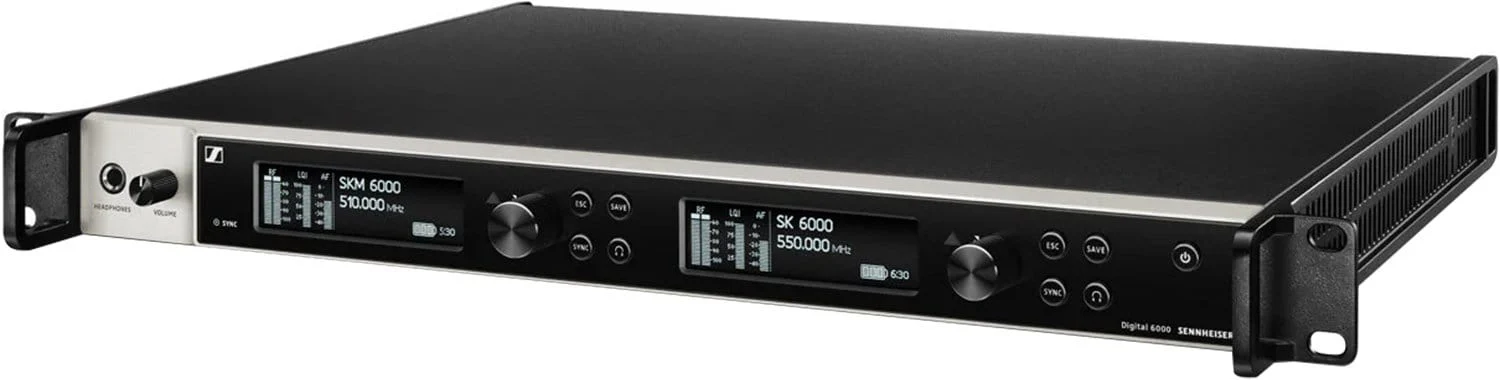

Digital 2-channel receiver for live productions and transmissions, even in the toughest environments. Huge spectral efficiency with equidistant frequency grid and true bit diversity. Analog and digital outputs (XLR, jack, AES-3, redundant Dante™,) high-contrast OLED display with LQI indicator.

Features:

• 19’’ 2-Channel receiver, 19 inch 1RU
• Large 244 MHz switching bandwidth
• Legendary Long Range mode (LR) with proprietary audio codec (SeDAC) from the masterpiece Digital 9000
• Link Density Mode (LD mode) with efficiency-optimized Audio Codec (SePAC) ensures up to 5 channels per MHz bandwidth
• Equidistant frequency grid for maximum channel density and simplest setup
• 32 superior quality RF pre-selection filters for optimal suppression of interference signals at antenna input
• Error correction and audio error masking
• AES-256 encryption
• Automatic frequency setup

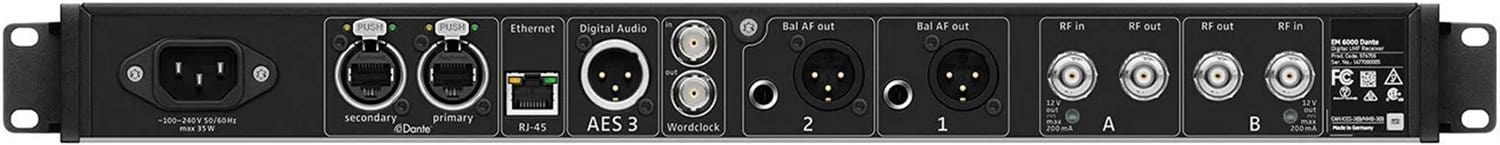

• Digital and transformer balanced analog outputs XLR, 6.3 mm jack, AES-3, EM 6000 Dante with Brooklyn II Card and Amphenol RJ-45
• Integrated antenna splitter for cascading of up to 8 systems

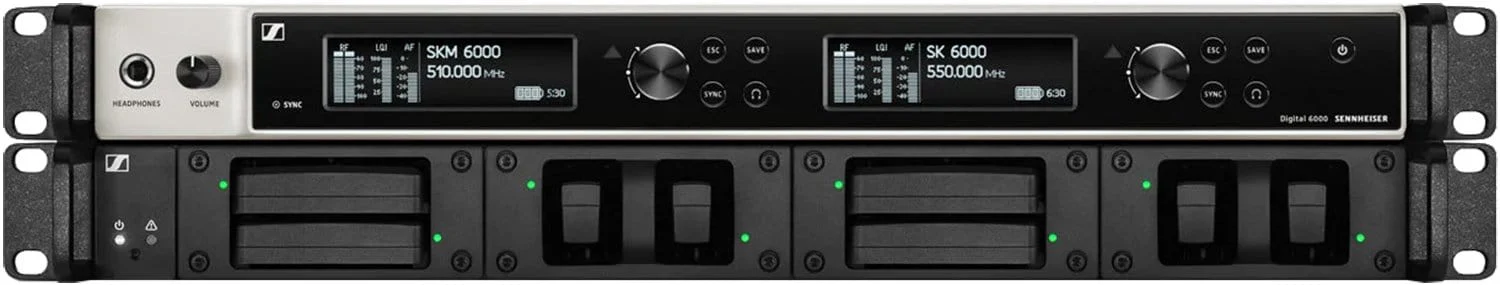

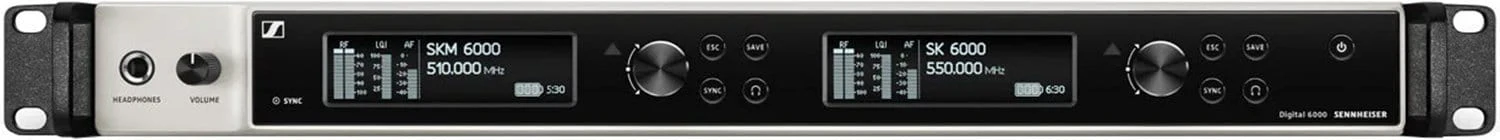

• One high-quality OLED display per channel
• Link Quality Indicator (LQI)
• Wireless Systems Manager (WSM) compatible
• Compatible with standard Sennheiser UHF antennas
• Compatible with Digital 9000 transmitters in Long Range mode

Specifications:

• Audio output:
  • Dante™, RJ-45: 48 kHz, 96 kHz, 24 bit
  • Digital Audio outputs: AES3-2003, XLR-3: 48 kHz, 96 kHz, 24 bit
  • Dante™, RJ-45: 48 kHz, 96 kHz, 24 bit
  • Can be externally synchronized using WCLK loop-through with BNC sockets
  • Analog Audio Outputs: XLR-3 and 6.3 mm jack per channel (transformer balanced)
  • -10 dBu to +18 dBu in steps of 1 dB (2 kΩ)
• Dimensions: 44 x 483 x 373 mm
• Frequency response: 30 Hz - 20 kHz (1.5 dB)
• THD, total harmonic distortion: < 0.03 % (@ 1 kHz)
• Weight: Approx. 5.2 kg
• Power consumption: Max. 35 W
• Storage temperature: -25°C to +70°C
• Operating temperature: -10°C to +50°C
• Switching bandwidth: 244 MHz
• Power supply: 100 - 240 V AC, 50/60 Hz
• Antenna connector: Input 2x BNC (50 Ω), 12 V DC, max. 200 mA each via antenna sockets, short circuit proof, Output 2 x BNC (50 Ω)
• Codecs: SePAC (Sennheiser Performance Audio Codec)
• Dynamic range: 111 dB (A) type
• Frequency range: 470 - 714 MHz
• Headphone output level: 6.3 mm jack, 2x 100 mW at 32 Ω
• Image rejection: > 100 dB typ.
• Sensitivity: -100 dBm typ.
• Word clock:
  • Input: BNC, 75 Ω
  • Output: BNC, 75 Ω
  • Sampling Rates: 48 kHz, 96 kHz
• Operating relative humidity:
  • Operation: Max. 85% at 40°C (non-condensing)
  • Storage: Max. 90% at 40°C (non-condensing)
• Transmission method: Digital modulation, “LR” mode Min. frequency spacing for equidistant grid: 325 kHz
• Latency:
  • Analog Audio Out: 3 ms
  • Digital Audio Out: 3 ms (AES/EBU)
• Audio codec: SeDAC (Sennheiser Digital Audio Codec)
• Network protocol: IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection
• Receiver Principle: Double superheterodyne
• Diversity principle: True bit diversity
• Encryption: AES 256
• Daisy chain outputs: 2x BNC (50 Ω) 0 dB +/- 0.5 dB amplification relative to antenna inputs
• Receiving channels: 2
• Daisy-chained receivers (RF): Max. 8 EM 6000 units
• Power plug: 3-pin, protection class I as per IEC/EN 60320-1
• Water Protection Code: The product must not be exposed to dripping and splashing (IP2X)
• Dante™: IEEE 802.3 (1000 Mbit/s), shielded RJ-45 connection
