Sennheiser EK 100 G4 Evolution Wireless Portable Camera Receiver

Sennheiser EK 100 G4 Portable Camera Receiver A1

EK 100 G4-A1 (Assembled in USA)

Powerful camera receiver, easily mounted on any kind of camera

Powerful camera receiver with a lightweight aluminum housing and for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications.

• EK 100 G4 camera receiver
• 2 AA batteries

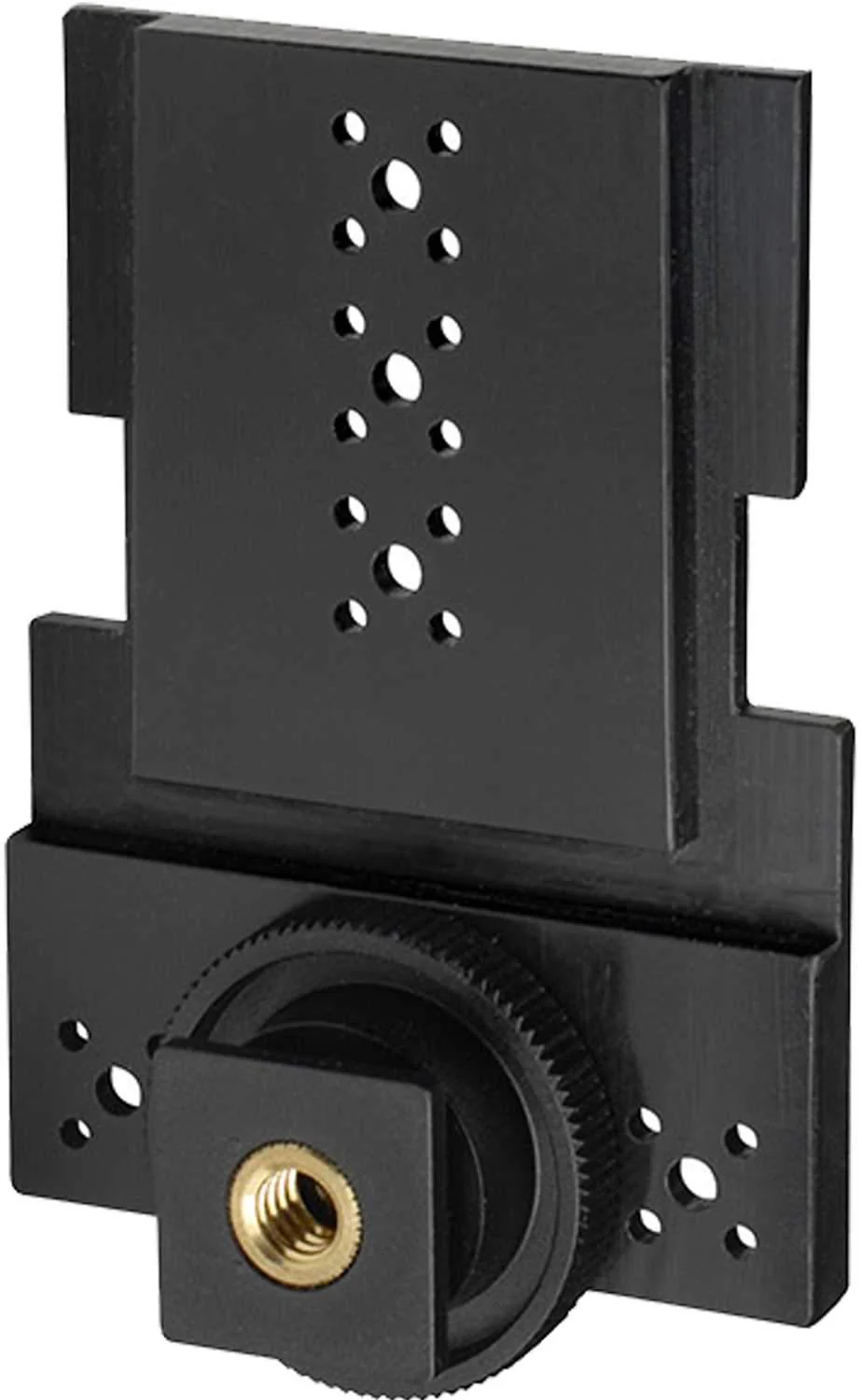

• CA 2 camera adapter
• CL 1 3.5 mm jack cable
• CL 100 XLR to 3.5 mm jack adapter cable
• quick guide
• safety guide
• manufacturer declaration sheet

Features:

• Powerful camera receiver, easily mounted on any kind of camera
• Excellent sound and construction quality
• Easy to use and fast setup time
• Powerful and reliable wireless transmission
• Range: up to 100 meters / 330 feet
• Up to 8 hours of operation time

Specifications:

• Frequency range: A1: 470 - 516 MHz
• Dimensions Approx.: 82 x 64 x 24 mm
• Compander Sennheiser: HDX
• THD, total harmonic distortion: ? 0.9 %
• Weight: (incl. batteries) approx. 160 g
• Audio output: 3.5 mm jack socket: +12 dBu (mono, unbalanced)
• Signal-to-noise ratio: ? 110 dBA
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA with receiver switched off: ? 25 µA
• Adjacent channel rejection: ? 65 dB
• Intermodulation attenuation: ? 65 dB
• Powering: 3 V battery / 2.4 V rechargeable battery
• Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• RF sensitivity: < 1.6 ?V for 52 dBA eff S/N
• Squelch low: 5 dBµV, middle: 15 dBµV, high: 25 dB?V
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: Adaptive diversity
• Blocking: ? 70 dB
