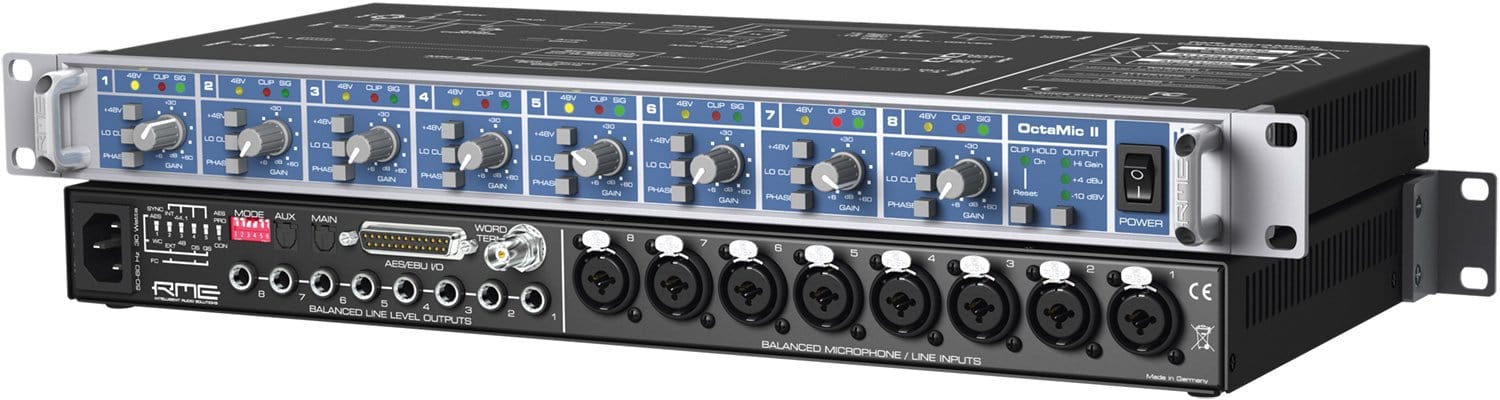

RME OCTAMIC II 8-Channel Microphone Preamplifier

RME OCTAMIC II 8-Channel Microphone Preamplifier

The OctaMic II provides 8-Channel 192 kHz / 24 bit AD conversion with eight hi-class microphone and line pre-amplification channels, featuring a combination of sophisticated components and approved RME technology.

Features:

• The balanced TRS inputs of the Neutrik Combo XLR jacks are phantom power-free and can be operated as real line inputs too. The improved design of the input circuits allows for a maximum input level of +21 dBu with a convenient gain range from 6 dB up to 60 dB.
• Improved signal to noise ratio (SNR) ADC 107.5 dB
• Improved THD, especially at higher gains
• Optimised heat dissipation by a new and larger housing with improved convection
• Internal wide range power supply with line filter, insensitive to voltage fluctuations
• Super-stable, short circuit proof 48 V phantom power

Specifications:

• 8 balanced XLR/TRS mic/line inputs
• 54 dB gain range
• Input impedance: XLR 2 kOhm, TRS 5 kOhm
• Analog input level: from -40 dBu up to +21 dBu
• Maximum output level: +21 dBu
• Output impedance: 75 Ohm
• Output level switchable Hi Gain / +4 dBu / -10 dBV
• Signal to noise ratio (SNR): 129 dB EIN @ 150 Ohm
• THD: < 0.0005 % @ 30 dB Gain
• Large frequency range (200 kHz) with special EMI input filtering
• Frequency response -0.5 dB: 5 Hz - 200 kHz
• Hi-pass filter: 80 Hz, 18 dB/oct.
• Line Out: 1/4" TRS (6.3 mm stereo jack), servo-balanced
• Phantom power: +48 Volt switchable per channel
• Internal wide range switching power supply 100-240 Volt AC
• Unbeatable price/performance ratio!
• AD conversion
• SNR: >110 dB(A)
• Supported sample rates: 28 kHz - 200 kHz
• THD: < 0.0003 %, < -110 dB
• Sync Sources: AES/EBU (also SPDIF coaxial), wordclock, internal
• SteadyClock(TM) ensures best sound quality even with jittery external clocks
