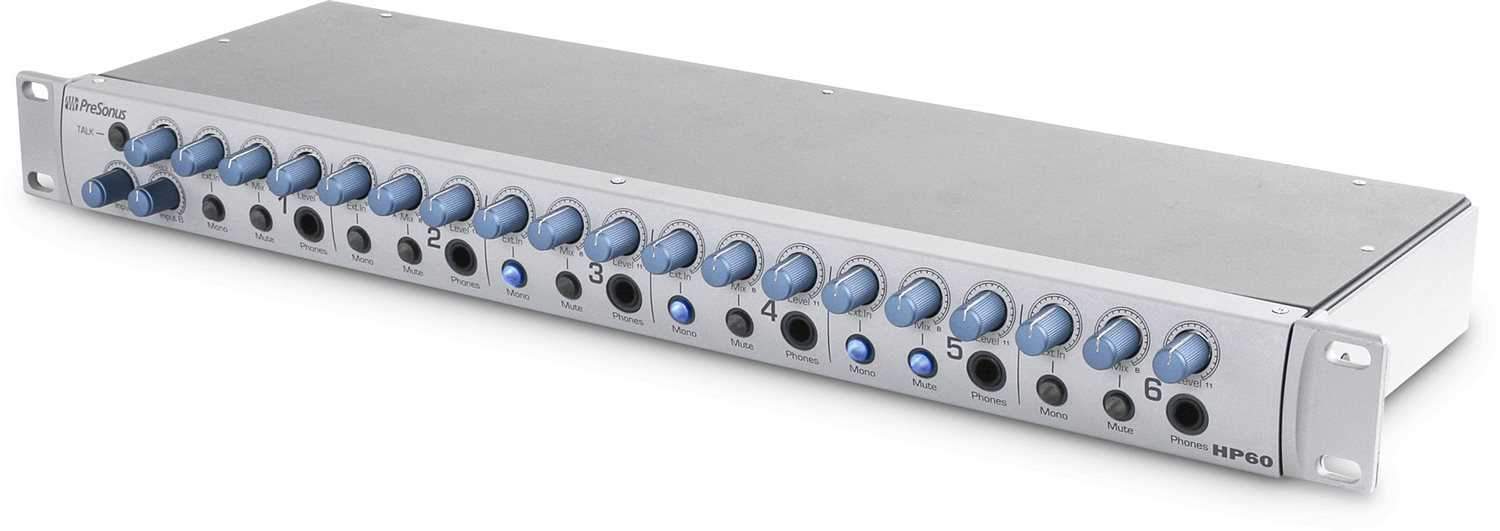

PreSonus HP60 6-Channel Headphone Mixing System

PreSonus HP60 6-Channel Headphone Mixing System

Features:

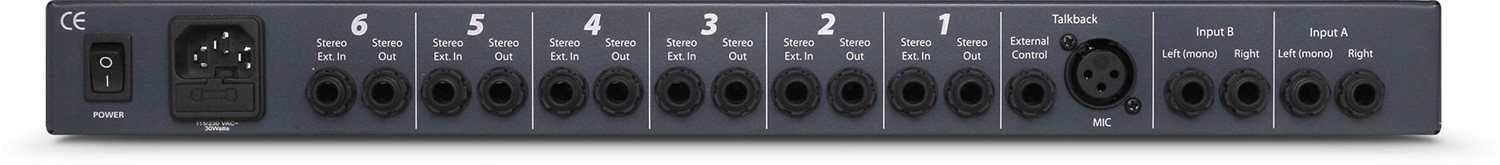

Input/Output

• 6 screaming-loud (150 mW/channel) headphone outputs (front panel)
• 6 unbalanced stereo 1/4" line outputs (1 per channel); carries a copy of the channel mix
• 6 unbalanced stereo 1/4" external analog line inputs (1 per channel) for "more me," with trim controls
• 4 balanced 1/4" analog line inputs (L/R Mix input pairs A and B)
• 1 balanced XLR Talkback input for external dynamic microphone
• 1 1/4" footswitch jack for hands-free Talkback operation
• Meters, Controls, and Features
• 2 stereo input channels (A and B)
• Channel controls
• External input level
• Headphone level control for each headphone output
• Mix A/B control (blends signals from input pairs A and B)
• Mono switch for external input
• Mute switch (mutes input pairs A and B)
• Master controls
• Input A level
• Input B level
• Talk button (momentary switch)
• Talkback-mic level

Physical

• 1U 19" rack-mountable, rugged steel chassis
• Internal power supply with standard IEC connector

Specifications:

Inputs

• Inputs A and B Connector Type: (2 ea.) 1/4" TRS balanced
• External Input Connector Type: 1/4" TRS stereo unbalanced
• Input Impedance: 10 kO

Headphone Outputs

• Connector type: 1/4" TRS stereo unbalanced:
• Max Output Power 150 mW/Ch.
• Frequency Response: 20 Hz - 20 kHz, ±0.5 dB, 60O load
• Headphone Impedance Working Range: 32O - 600O

Power

• Internal supply, standard IEC connector: 115 or 230 VAC

Physical

• Dimensions: 1/3U rack-mount (with standard rack tray, not included)
• Height: 1.75" (44.45 mm)
• Depth: 5.5" (139.7 mm)
• Width: 19" (482.6 mm)
• Weight: 8.0 lbs. (3.63 kg)
