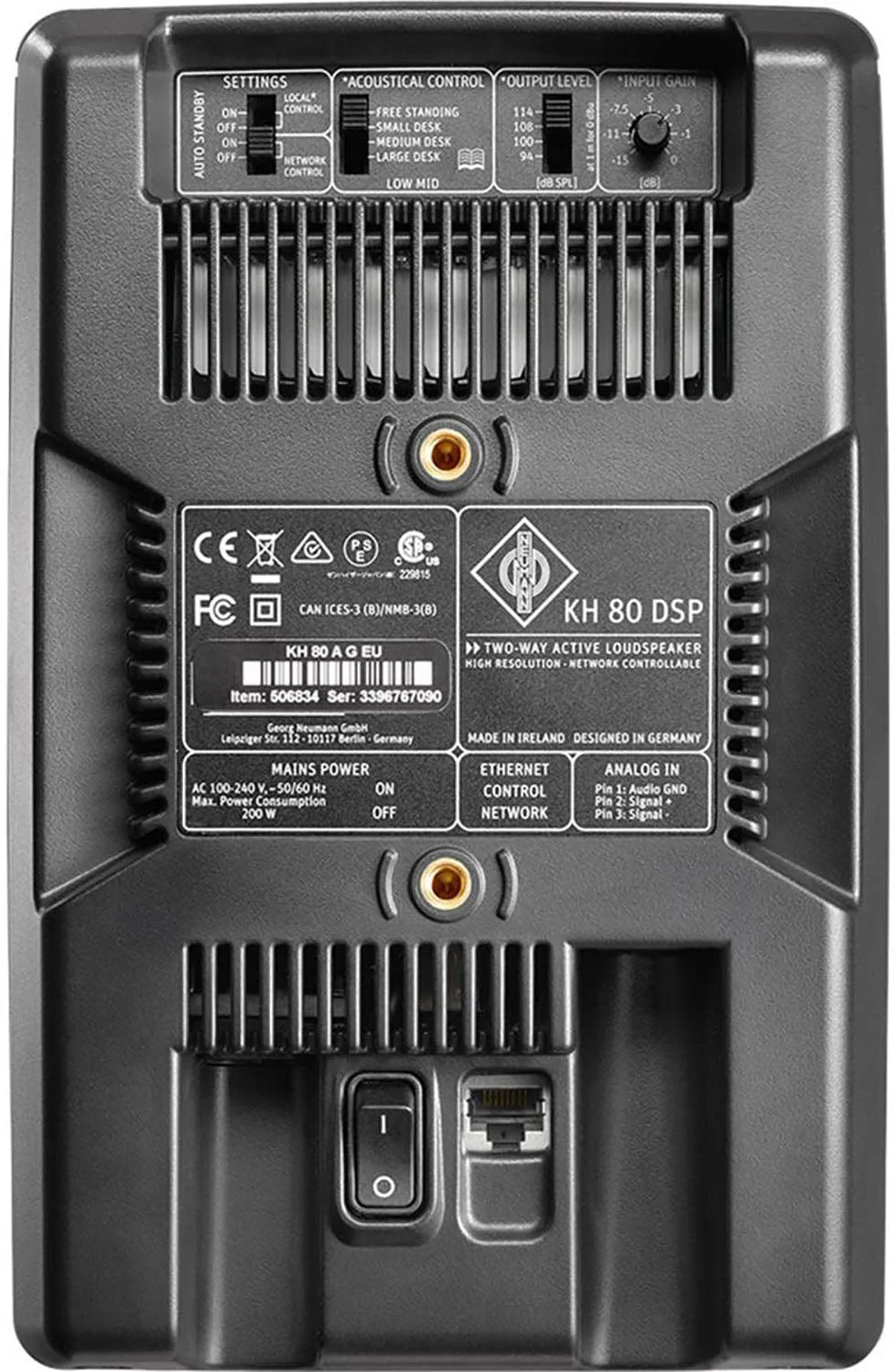

Neumann MONITOR-ALIGNMENT-KIT-2-US Monitor Alignment Kit with 1x MA 1 Mic and 2x KH 80 DSP Monitors

Neumann MONITOR-ALIGNMENT-KIT-2-US Monitor Alignment Kit with 1x MA 1 Mic and 2x KH 80 DSP Monitors

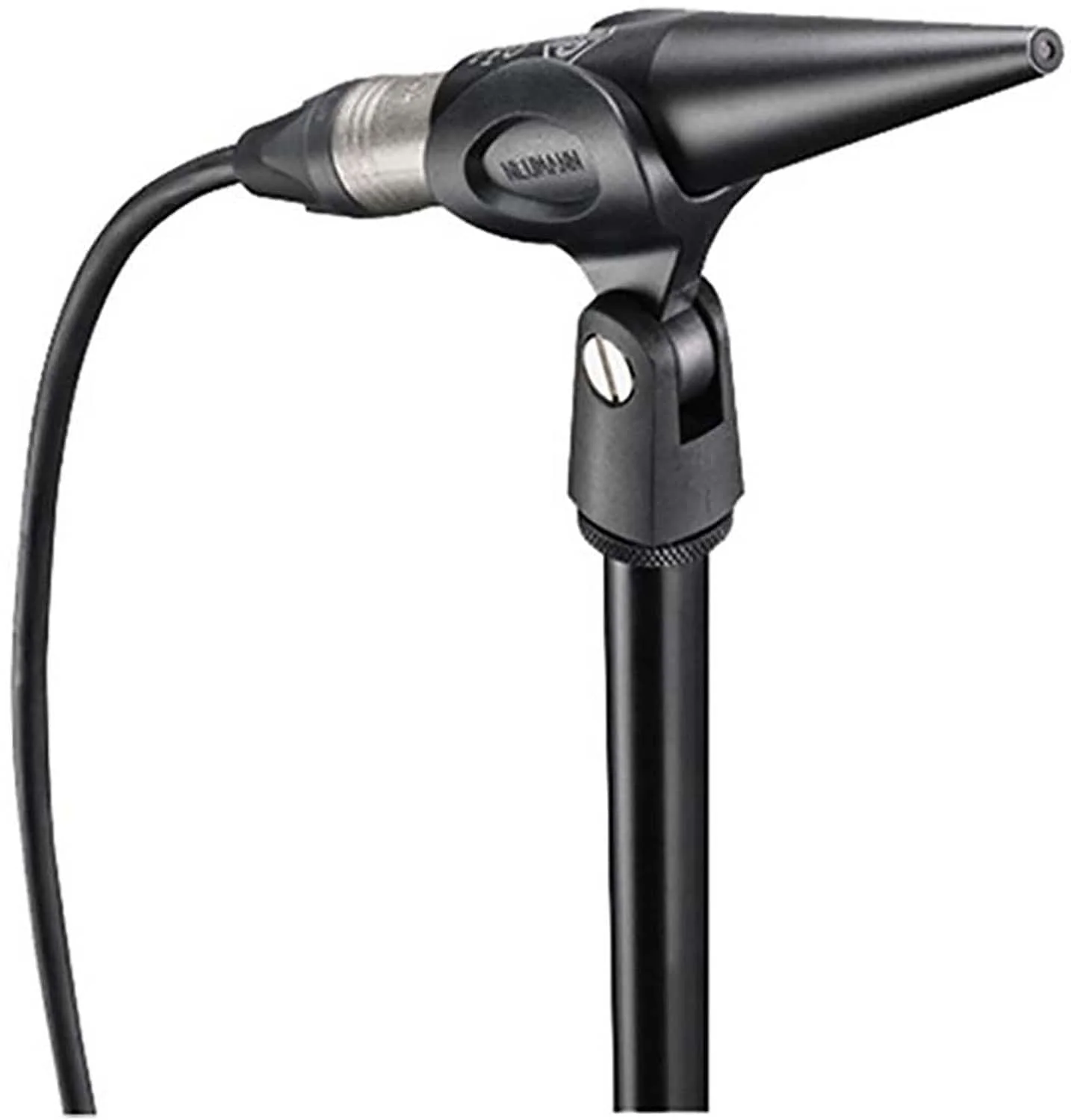

The Neumann MA 1 Monitor Alignment Microphone and Calibration System is designed to help engineers, musicians, and producers get more accurate and sonically consistent mixes from their Neumann KH 80 DSP monitors or non-DSP KH-Series monitors when used with the KH 750 DSP subwoofer. The system uses an omnidirectional measurement mic and a downloadable software for Mac and Windows with Fraunhofer IIS algorithms to calibrate and adjust the phase and amplitude of the speakers to compensate for room imperfections.

Specifications:

• Microphone:
  • Form Factor: Stand/Boom Mount
  • Sound Field: Mono
  • Element Type: 1x Electret Condenser
  • Polar Pattern: Omnidirectional
  • High-Pass Filter: No
• Performance:
  • Frequency Range: 20 Hz to 20 kHz
  • Maximum SPL: 132 dB SPL
  • Impedance: 50 Ohms
  • Load Impedance: 1000 Ohms
  • Sensitivity: 30 mV/Pa
  • Signal-to-Noise Ratio: 67 dB A-Weighted
  • Equivalent Noise Level: 27 dB A-Weighted
  • THD: 0.5%
• Connectivity:
  • Analog Output: 1x XLR 3-Pin Male (on Mic)
• Power:
  • Power Sources: Phantom Power
  • Operating Voltage: 48 V
• Physical:
  • Color: Black
  • Dimensions: ø: 0.9 x L: 4.6" / ø: 23 x L: 117 mm
  • Weight: 1.3 oz / 37 g
