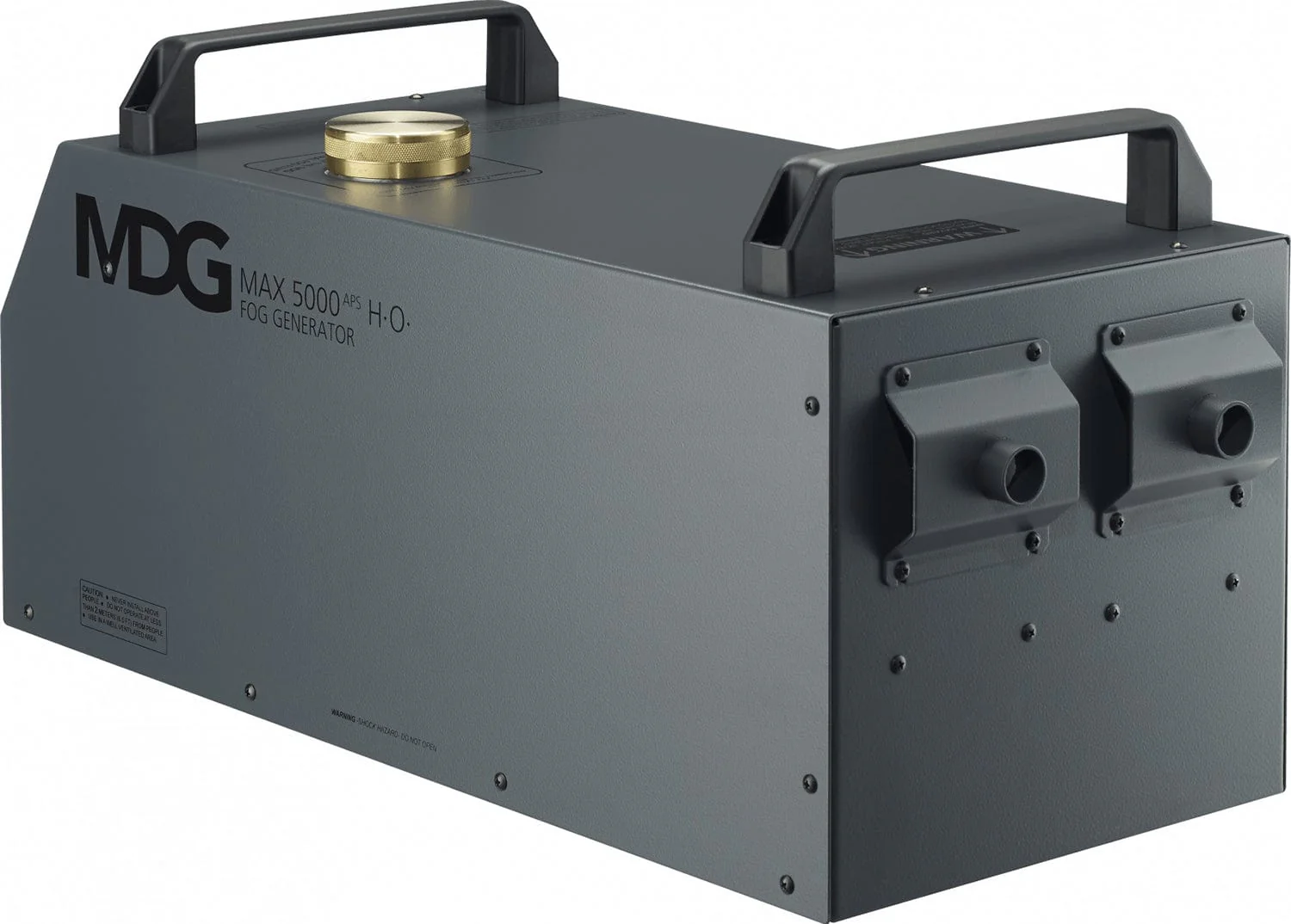

MDG MAX 5000 High Output Fog Generator - 208 Volt

MDG MAX 5000 High Output Fog Generator - 208 Volt

The largest of the MAX series, very powerful and always ready, the MAX 5000^APS H.O. gives you maximum fog the moment you need it.

Features:

• Maximum fog output up to 445 m³ (15,715 ft³) per minute. 100% duty cycle.
• APS™ (Automatic Purging System) to prevent build-up and clogging.
• Virtually noiseless, with the finest fog and the longest hanging time.
• Detachable remote control and 8 m (26 ft) cable included.
• Compatible with DMX interface and remote control timer.
• Huge, manually adjustable fog output.

Specifications:

• Fluid consumption: 4.5 L (1.2 US gallon) per hour at 4.14 bar (60 psi)
• Gas type: N2
• Gas consumption: 5 kg (11 lb) per hour at 4.14 bar (60 psi)
• Reservoir capacity: 6.5 L (1.7 US gallon)
• APS™ (Automatic Purging System): Standard
• Fog colour: Pure white
• Particle size: 0.5 - 0.7 micron
• Warm-up time: 8 minutes (maximum)
• Fluid type: MDG Neutral
• Operating voltage: 208 or 230 VAC, 50/60 Hz single phase
• Power consumption: 2,815 W
• Maximum fog output per minute: 445 m3 (15,715 ft3)
• Length: 68.5 cm (27”)
• Width: 28 cm (11”)
• Height: 30 cm (12”)
• Weight: 33 kg (72 lb)
• Shipping weight: 44 kg (97 lb) with flight case
• Approval: CE certified and ETL field approved
