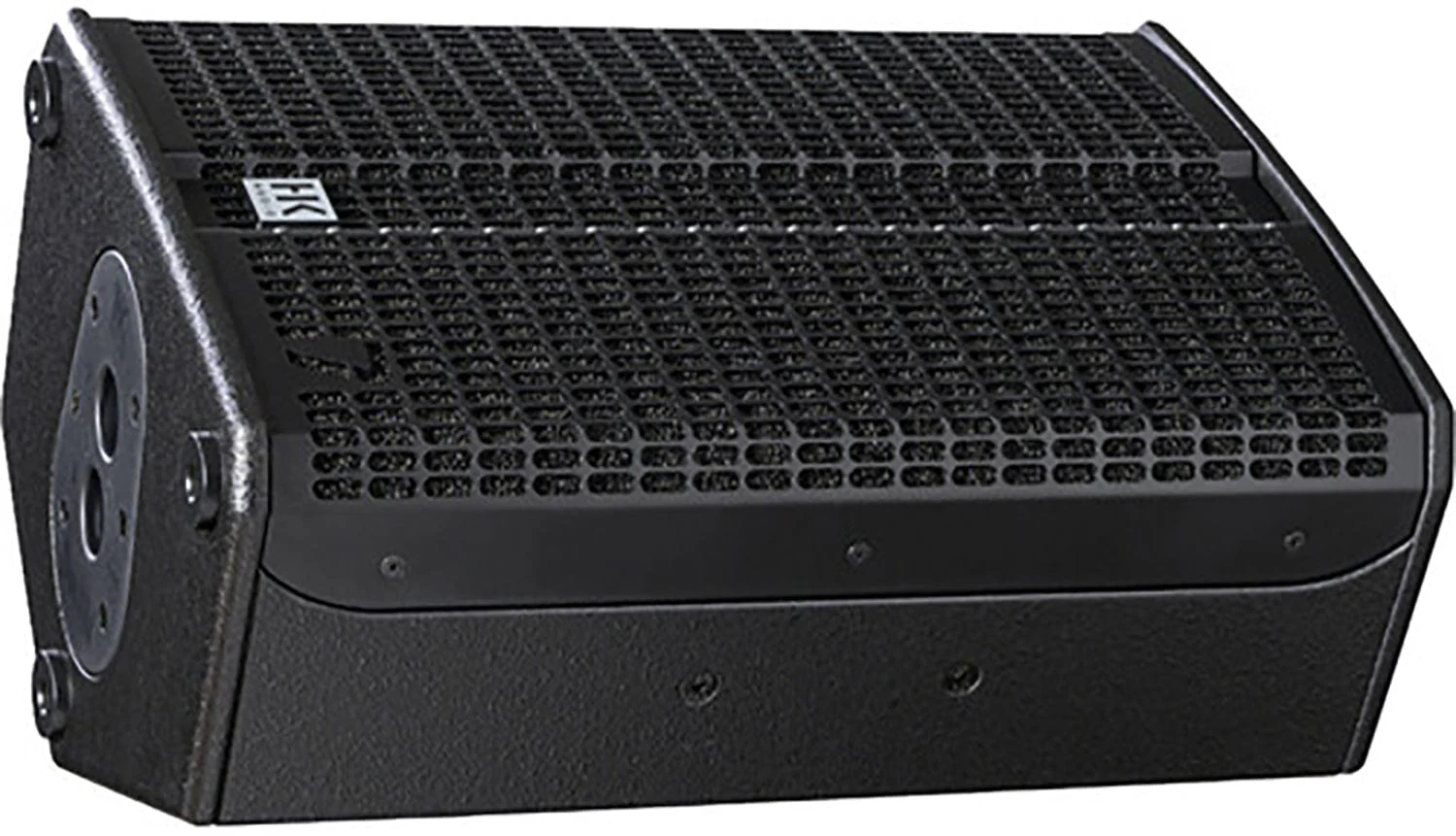

HK Audio Linear 7 110 XA Active Multifunctional 2000 Watt 10 Inch Speaker
HK Audio Linear 7 110 XA Active Multifunctional 2000 Watt 10 Inch Speaker
Thanks to its cabinet shape with integrated 30° slant, the LINEAR 7 110 XA active and network-compatible multifunctional speaker is also suitable for use as a transverse stage monitor. It offers a preset optimised for use as a monitor, which compensates for the overemphasis of the low frequencies caused by contact with the ground in transverse operation.
Features:
- 2000W (Peak) Class-D Amplifier
- 10" Woofer + 1" High-Frequency Driver
- 70 Hz to 19 kHz Frequency Response
- 129 dB Max SPL, 80° x 60° Dispersion
- DSP Platform with Modern Network Tech
- 10-Band Parametric EQ, Delay & Limiting
- Selectable Presets, High-Res AD/DA, FIR
- Combo XLR-1/4" Input, XLR Thru + DSP Out
- DuoTilt Pole Cup: 3°/7°
Specifications:
- Max. SPL @ 10% THD: 126 dB half space (70 Hz – 12 kHz averaged)
- Max. SPL peak @ 10 % THD: 129 dB half space
- Frequency response +/-3 dB: 70 Hz – 19 kHz
- Frequency response -10 dB: 65 Hz – 20 kHz
- Power amp output (peak power): 2000 W
- Amp type: Class D - biamped
- Low-/mid speaker: 1x 10", 2.5" voice coil
- HF driver: 1", 1.4" voice coil
- Horn directivity: 80° x 60° CD horn, rotatable
- Active crossover frequency: 2 kHz FIR X-over with 60 dB/oct.
- Maximum input level: +20 dBu
- Analog inputs: 1x XLR combo balanced
- Analog thru: 1x XLR balanced
- DSP Out: 1x XLR
- Network port: Ethercon RJ45, 1x In, 1x Thru
- Filter presets: Flat, Monitor, Low Cut, Remote
- Remote software: DSP CONTROL (Windows, Mac OS)
- DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
- Sample rate: 96 kHz
- System latency: Less than 2.6 ms
- Mains connector: 1x Powercon NAC3 In, 100–240 V
- Power consumption: 1 A / 100–240 V nominal according to EN 62368-1
- Angels up (Monitor angle): 30°
- Pole mount: DuoTilt 3°/7°
- Rigging points: 5x M8 (AP-8)
- Carrying handles: 2x SingleGrip
- Housing: Hybrid (birch multiplex/MDF)
- Finish: Black acrylic enamel
- Front grille: 2 mm metal grille backed with black acoustic foam
- Dimensions (WxHxD): 36 x 54 x 31 cm 14-11/64 x 21-1/4 x 12-13/64"
- Weight: 17 kg / 37.5 lbs
$1,619.00
HK Audio Linear 7 110 XA Active Multifunctional 2000 Watt 10 Inch Speaker—
$1,619.00
Description
HK Audio Linear 7 110 XA Active Multifunctional 2000 Watt 10 Inch Speaker
Thanks to its cabinet shape with integrated 30° slant, the LINEAR 7 110 XA active and network-compatible multifunctional speaker is also suitable for use as a transverse stage monitor. It offers a preset optimised for use as a monitor, which compensates for the overemphasis of the low frequencies caused by contact with the ground in transverse operation.
Features:
- 2000W (Peak) Class-D Amplifier
- 10" Woofer + 1" High-Frequency Driver
- 70 Hz to 19 kHz Frequency Response
- 129 dB Max SPL, 80° x 60° Dispersion
- DSP Platform with Modern Network Tech
- 10-Band Parametric EQ, Delay & Limiting
- Selectable Presets, High-Res AD/DA, FIR
- Combo XLR-1/4" Input, XLR Thru + DSP Out
- DuoTilt Pole Cup: 3°/7°
Specifications:
- Max. SPL @ 10% THD: 126 dB half space (70 Hz – 12 kHz averaged)
- Max. SPL peak @ 10 % THD: 129 dB half space
- Frequency response +/-3 dB: 70 Hz – 19 kHz
- Frequency response -10 dB: 65 Hz – 20 kHz
- Power amp output (peak power): 2000 W
- Amp type: Class D - biamped
- Low-/mid speaker: 1x 10", 2.5" voice coil
- HF driver: 1", 1.4" voice coil
- Horn directivity: 80° x 60° CD horn, rotatable
- Active crossover frequency: 2 kHz FIR X-over with 60 dB/oct.
- Maximum input level: +20 dBu
- Analog inputs: 1x XLR combo balanced
- Analog thru: 1x XLR balanced
- DSP Out: 1x XLR
- Network port: Ethercon RJ45, 1x In, 1x Thru
- Filter presets: Flat, Monitor, Low Cut, Remote
- Remote software: DSP CONTROL (Windows, Mac OS)
- DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
- Sample rate: 96 kHz
- System latency: Less than 2.6 ms
- Mains connector: 1x Powercon NAC3 In, 100–240 V
- Power consumption: 1 A / 100–240 V nominal according to EN 62368-1
- Angels up (Monitor angle): 30°
- Pole mount: DuoTilt 3°/7°
- Rigging points: 5x M8 (AP-8)
- Carrying handles: 2x SingleGrip
- Housing: Hybrid (birch multiplex/MDF)
- Finish: Black acrylic enamel
- Front grille: 2 mm metal grille backed with black acoustic foam
- Dimensions (WxHxD): 36 x 54 x 31 cm 14-11/64 x 21-1/4 x 12-13/64"
- Weight: 17 kg / 37.5 lbs
