ETC SELD22L-I1 D22 Lustr+ Install Canopy Washlight - White
ETC SELD22L-I1 D22 Lustr+ Install Canopy Washlight - White

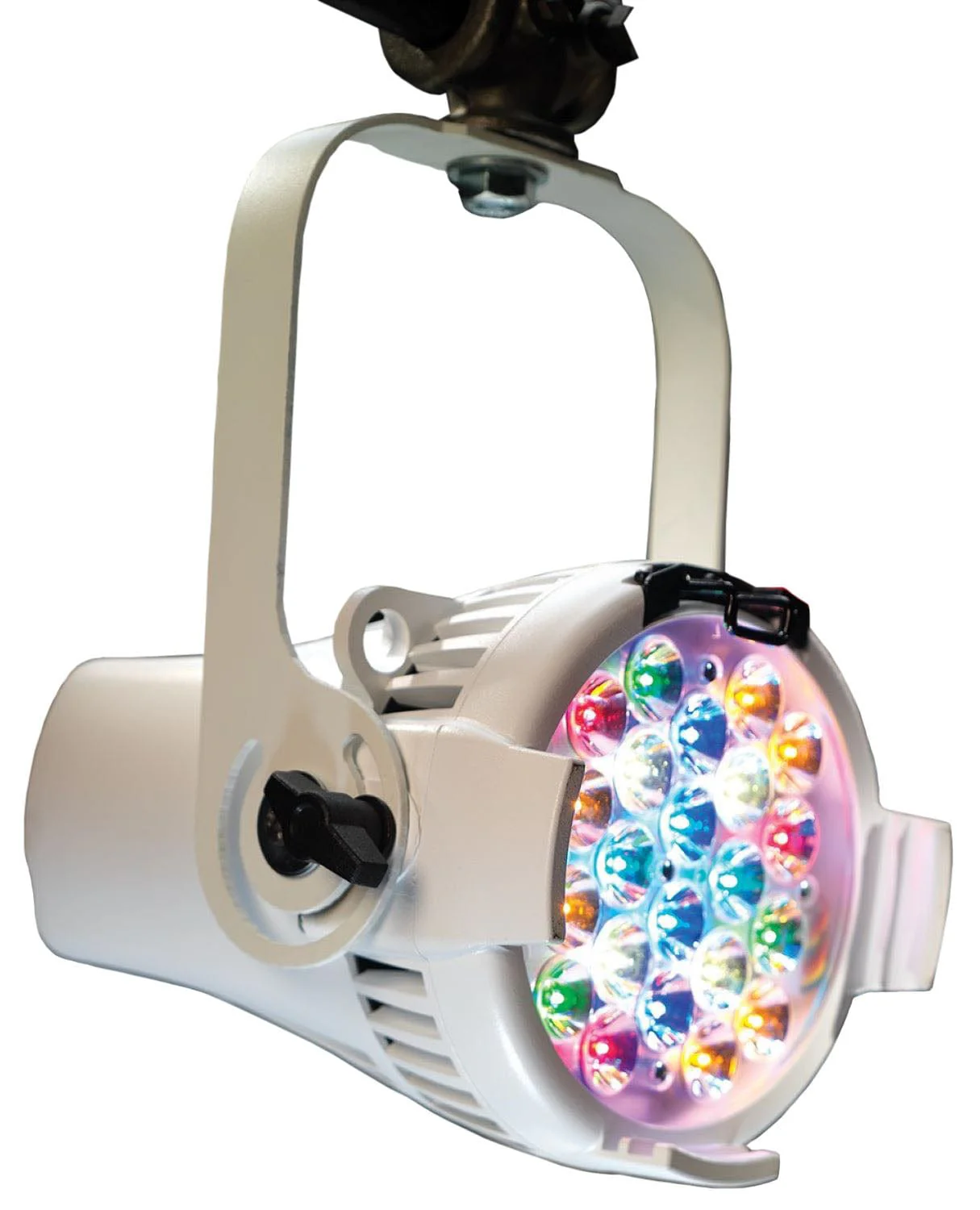

ETC’s Selador Desire D22 luminaire puts the x7 Color System into a compact, round washlight. Highly efficient primary lenses and careful color choices make the D22 fixture ideal for stage, studio, architecture and anywhere vibrant color and high intensity are requirements. The x7 Color System produces the widest range of spectrally-balanced saturated and tinted color choices available, while the static-white options provide an impressive punch. D22’s rugged die-cast enclosure, noiseless fan-free operation, multiple lens options, convenient size and advanced user interface make it an ideal addition to the Desire family of LED luminaires.
Specifications:
- Source:
- LED details: 22 Lumileds LUXEON® Rebel LED
- Max lumens: 1,499
- Lumens per watt: 31
- L70 rating (hours to 70% output): 50,000 hours
- Color:
- Colors used: Red, Amber, Green, Cyan, Blue, Indigo, White
- Color temperature range: 2,700–6,500 K
- Calibrated array: Yes
- Red shift: Yes
- Optical;
- Beam angle: 8°–71°
- Aperture size: 6 in
- Pattern projection: No
- Camera flicker control/Hz range: Yes - 900–25,000 Hz
- Notes: Secondary lenses available for multiple beam-spread options
- Control:
- Input method:
- DMX512 via 5-pin XLR (portable only)
- Permanent power input cable
- Protocols: DMX-512/RDM
- RDM configuration: Yes
- UI type: LCD
- Local control: Yes
- Onboard presets: Yes
- Onboard sequences: Yes
- Onboard effects: No
- Fixture-to-fixture control: Yes
- Notes: 15-bit virtual dimming engine
- Input method:
- Electrical:
- Voltage range: 100–240 VAC 50/60 Hz
- Input method:
- Requires power from a non-dimmable source
- Portable: Edison, Schuko or UK13A connector
- Inrush (over first half-cycle):
- 17 A at 120 V
- 25 A at 240 V
- Fixtures per circuit: 20 (R20 module or similar)
- Wattage typical: 56.5
- Current draw:
- 0.00 A at 110 V
- 0.48 A at 120 V
- 0.00 A at 230 V
- 0.288 A at 240 V
- Thermal:
- Ambient operating temp: 0°–40° C (32°–104° F)
- Fan (controllable): No
- Droop compensation: Yes
- dB range: N/A
- BTUs/hour: 192.778
- Physical:
- Materials: Die-cast, all metal housing
- Color: White
- Mounting option: Install canopy
- IP rating:
- IP20 for portable and canopy versions
- IP40 for track version
- Weight: 3.13 kg (6.9 lb)
- Included accessories: Hanging yoke
