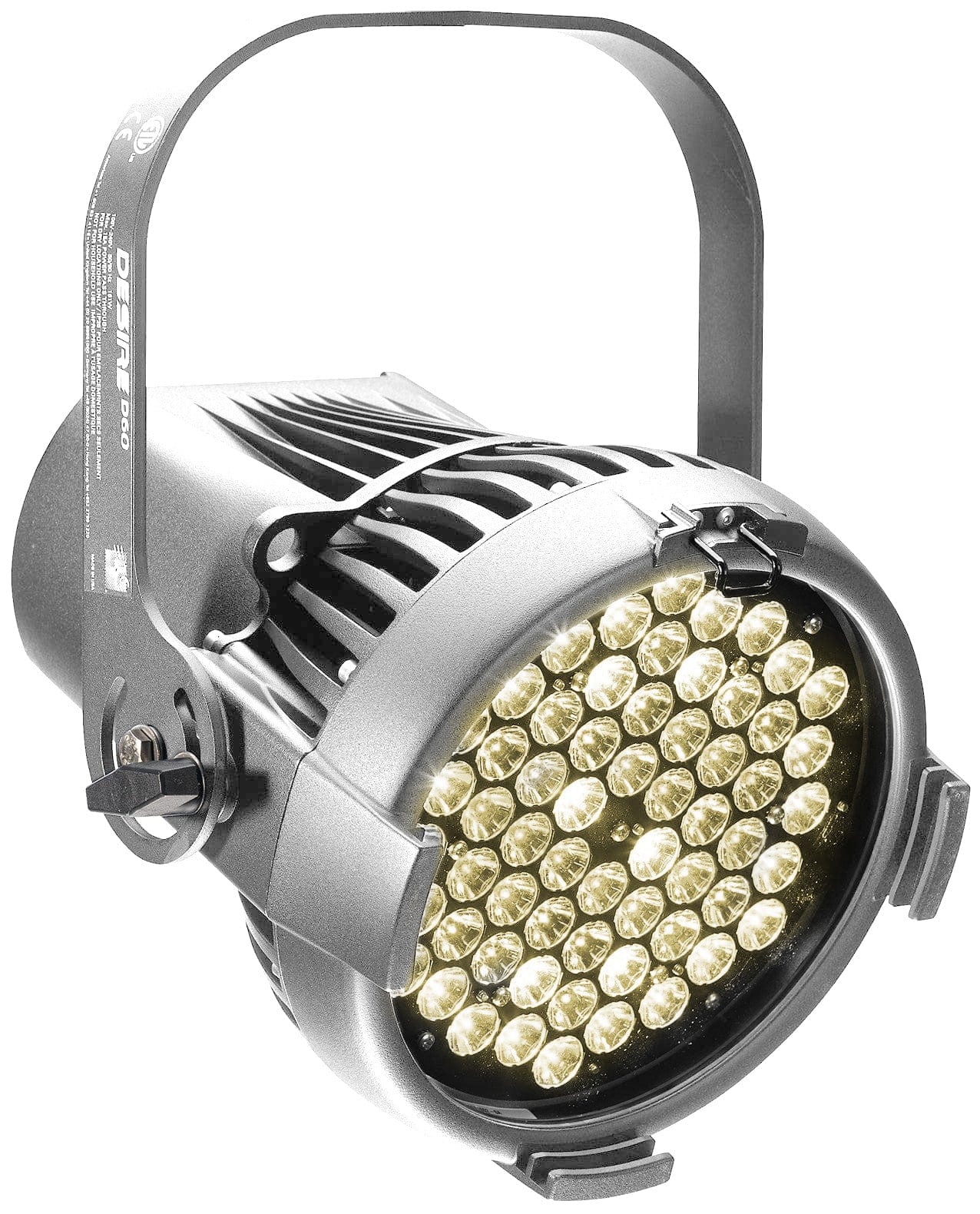

ETC Desire D60 Studio HD LED Par
ETC Desire D60 Studio HD LED Par
The Desire D60 Studio HD LED Par delivers white-light output with three selectable LED options to match your specific colour temperature requirements.
The LED Par hosts a rugged die-cast construction and quiet fan cooling.
The fixture supports both console-controlled operation and standalone mode. It also uses advanced optics, including multiple lens options and the x7 Colour System, which provides five LED colours to fill spectral gaps in white-light output.
The Desire D60 Studio HD LED Par is available in black, silver or white.
Specifications:
- Source
- LED details- 60 Lumileds LUXEON® Rebel 2.5 W LED
- Max lumens- Studio HD: 4,532
- Lumens per watt- Studio HD: 30.9
- L70 Rating Hours to 70% output- 50,000 hours
- Colour
- Colours used- Studio HD: Red, Amber, Green/Cyan, Blue, Warm White, Cool White
- Colour temperature range- Studio HD: 2700–5600 K
- Calibrated array- Studio HD: Yes
- Optical
- Beam angle range- 8-71°
- Gate size- N/A
- Aperture size- 9 in
- Pattern projection- No
- Pattern size- N/A
- Camera flicker control/Hz range- Yes: 900–25,000 Hz
- Notes- Secondary lenses available for multiple beam-spread options
- Control
- Input method- DMX512 via 5-pin XLR
- Protocols- DMX512/RDM
- RDM configuration- Yes
- UI type- LCD
- Local control- Yes
- Onboard pre-sets- Yes
- Onboard sequences- Yes
- Onboard effects- No
- Fixture-to-fixture control- Yes
- Notes- 15-bit virtual dimming engine
- Electrical
- Voltage range- 100–240 VAC 50/60 Hz
- Input method- Neutrik powerCON® in and thru / Requires power from non-dimmable source
- Inrush-
- 15 A at 120 V (First half-cycle)
- 40 A at 240 V (First half-cycle)
- Fixtures per circuit (Note: All measurements are for 120 V, 60 Hz. Results may vary in different regions.)-9 (15 A via power thru connector)
- Wattage typical- 161 W
- Current draw-
- 1.43 A / 120 V
- 0.58 A / 240 V
- Thermal
- Ambient operating temp- -20°–40° C (4°–104° F)
- Fan (controllable)- Yes (yes)
- Droop compensation- Yes
- dB range- 25 dBa average at 1 m
- BTUs/hour- 549
- Physical
- Materials- Die-cast, all metal housing
- Colour options- Black
- Mounting options- Yoke
- IP rating- IP20
- Weight- 8.7 kg (19.1 lb)
- Included accessories- Very Narrow Round diffuser, power cable (see page 7), optional yoke/floor stand
- Warranty
- Fixture- 5 years
- LED array- 10 years
- Regulatory and Compliance
- Approved regulatory standards
- UL 1573
- CSA C22.2 No. 166
- CE Compliant
- EAC Compliant
