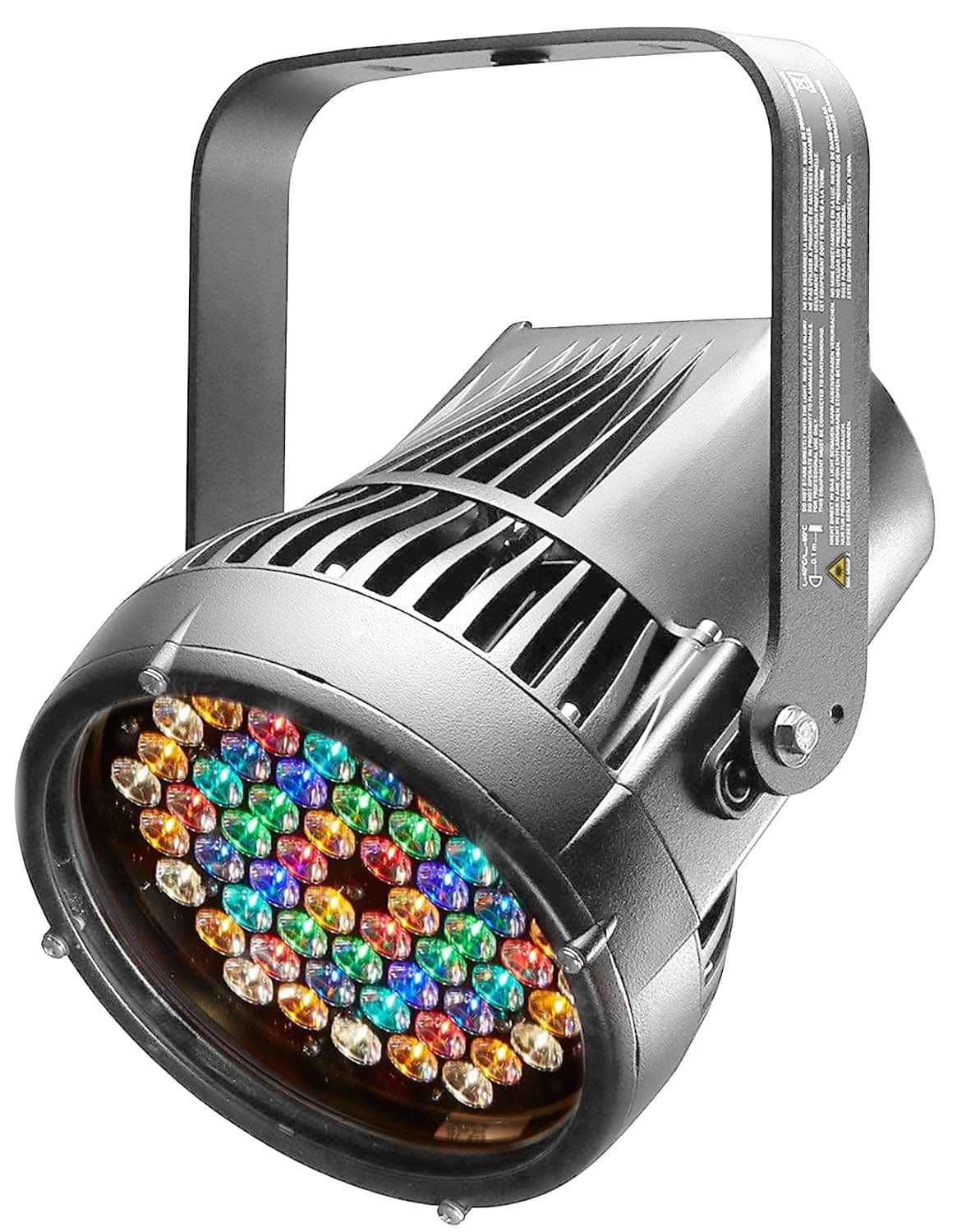

ETC Desire D60 Studio HD LED Par

ETC Desire D60 Studio HD LED Par

The D60 Studio HD brings the amazing control of the x7 Colour System and the long throw of a D60 to a portable, IP66 rated fixture.

This luminaire is ready for mounting inside or outside–wherever you need it.

The D60 Studio HD offers a rugged die-cast enclosure, noiseless fan-free operation and multiple lens options that can be changed on-site.

The D60 Studio HD combines warm white and cool white LEDs for variable colour temperature mixing. Added to this are five carefully chosen LED colours from the x7 Colour System to fill in the white LED spectral gaps.

The D60 Studio HD is available in black, silver or white.

Specifications:

• Source:
  • LED details: LED details
  • Max lumens: Studio HD: 4,532
  • Lumens per watt: Studio HD: 33.4
  • L70 rating (hours to 70% output): 50,000 hours
• Colour:
  • Colours used: Studio HD: Red, Amber, Green/Cyan, Blue, Warm White, Cool White
  • Colour temperature range: 2,700–6,500K
  • Calibrated array: Studio HD: Yes
  • Red shift- Yes (not available on static white)
• Optical:
  • Beam angle range: 8°–17°
  • Aperture size: 9 in
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range: Yes: 900–25,000 Hz
  • Notes: Secondary lenses available for multiple beam-spread options
• Control:
  • Input method: DMX512 via termination board
  • Protocols: DMX512/RDM
  • RDM configuration: Yes
  • UI type: None (configure via RDM)
  • Local control: No
  • Onboard presets: Yes
  • Onboard sequences: No
  • Onboard effects: No
• Control:
  • Onboard sequences: Yes
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Notes: 15-bit virtual dimming engine
• Electrical:
  • Voltage range: 100 VAC–240 VAC 50/60 Hz
  • Input method: Waterproof, 39 in power lead Requires power from non-dim source
  • Inrush: 46 A at 120 V (First half-cycle) 77 A at 240 V (First half-cycle)
  • Fixtures per circuit(All measurements are for 120 V, 60 Hz. Results may vary in different regions.)- 10 (15 A may be fed on same circuit)
  • Wattage typical: 124
  • Current draw: 1 A
• Thermal:
  • Ambient operating temp: -20°–40° C (-4°–104° F)
  • Fan (controllable): No
  • Droop compensation: Yes
  • dB range: N/A
  • BTUs/hour: 423.088
• Physical:
  • Materials: Die-cast, all metal housing
  • Colour options: Black
  • IP rating: IP66 for exterior wet-location
  • Weight: 10.43 kg (23 lb)
  • Included accessories: Hanging yoke
• Warranty:
  • Fixture: 5 years
  • LED array: 10 years
• Regulatory and Compliance:
  • Approved regulatory standards:
    • cETLus Listed
    • Conforms to UL1598
    • Certified to CSA C22.2 No. 250.0
    • CE Compliant
