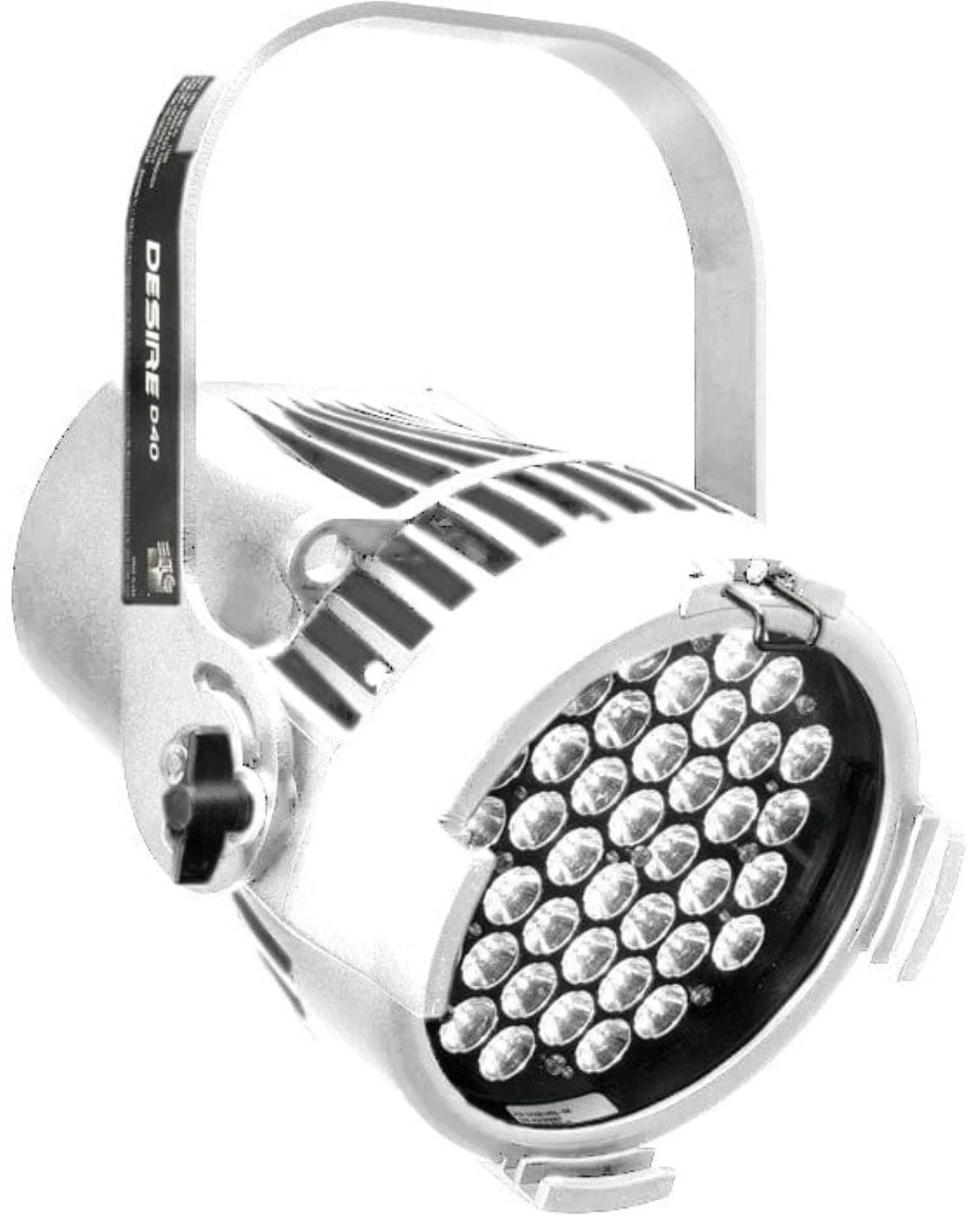

ETC Desire D40XTI LED Luminaire

ETC Desire D40XTI LED Luminaire

The D40 XTI offers three different LED options giving the user a choice for just the right white-light output for the job. The fixture can be configured to operate under console control for studio systems or in stand-alone ‘no console required’ mode for location lighting.

The ETC Desire D40XTI LED Luminaire combines warm-white and cool-white LEDs for variable colour temperature mixing, added to this are five carefully chosen LED colours from the Selador x7 Colour System to fill in the white LED spectral gaps.

ETC Desire D40XTI LED Luminaire is available in black, silver or white. Also, it is available in Studio Daylight or Studio Tungsten.

Specifications:

• Source:
  • LED details: 40 Lumileds LUXEON® Rebel LED
  • Max lumens: 3194
  • Lumens per watt: 33.2
  • L70 rating (hours to 70% output): 50,000 hours
• Colour:
  • Colours used: Studio HD: Red, Amber, Green/Cyan, Blue, Warm White, Cool White
  • Colour temperature range: Studio HD: 2700–5600 K
  • Calibrated array: Studio HD: Yes
  • Red shift: Yes (Studio HD)
• Optical:
  • Beam angle: 11°
  • Aperture size: 7.5 in
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range: Yes: 900–25,000 Hz
  • Notes: Secondary lenses available for multiple beam-spread options
• Control:
  • Input method: DMX512 via 5-pin XLR
  • Protocols: DMX512/RDM
  • Modes (footprint): See page 6
  • RDM configuration: Yes
  • UI type: LCD
  • Local control: Yes
  • Onboard presets: Yes
  • Onboard sequences: Yes
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Notes: 15-bit virtual dimming engine
• Electrical:
  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: :
    • Neutrik powerCON in and thru
    • Requires power from non-dim source
  • Inrush (first half-cycle): :
    • 15 A at 120 V
    • 40 A at 240 V
  • Fixtures per circuit: 10 (15 A via power thru)* (*Note: All measurements are for 120 V, 60 Hz. Results may vary in different regions.)
  • Wattage (typical): 104
  • Current draw:
    • 0.88 A at 120 V
    • 0.42 A at 240 V
• Thermal:
  • Ambient operating temp: -20°–40°C (-4°–104°F)
  • Fan (controllable): No
  • Droop compensation: Yes
  • dB range: N/A
  • BTUs/hour: 375.32
• Physical:
  • Materials: Die-cast, all metal housing
  • Colour: Black
  • Mounting options: Yoke
  • IP rating: IP20
  • Weight: 6.4 kg (14 lb)
  • Included accessories: Hanging yoke, optional yoke/floor stand
  • Notes: Easy access slots for secondary lenses and standard 7.5 inch PAR accessories
• Warranty:
  • Fixture: 5 years
  • LED array: 10 years
• Regulatory and Compliance:
  • Approved regulatory standards: :
    • UL 1573
    • CSA C22.2 No. 166
    • CE Compliant
    • EAC Compliant
