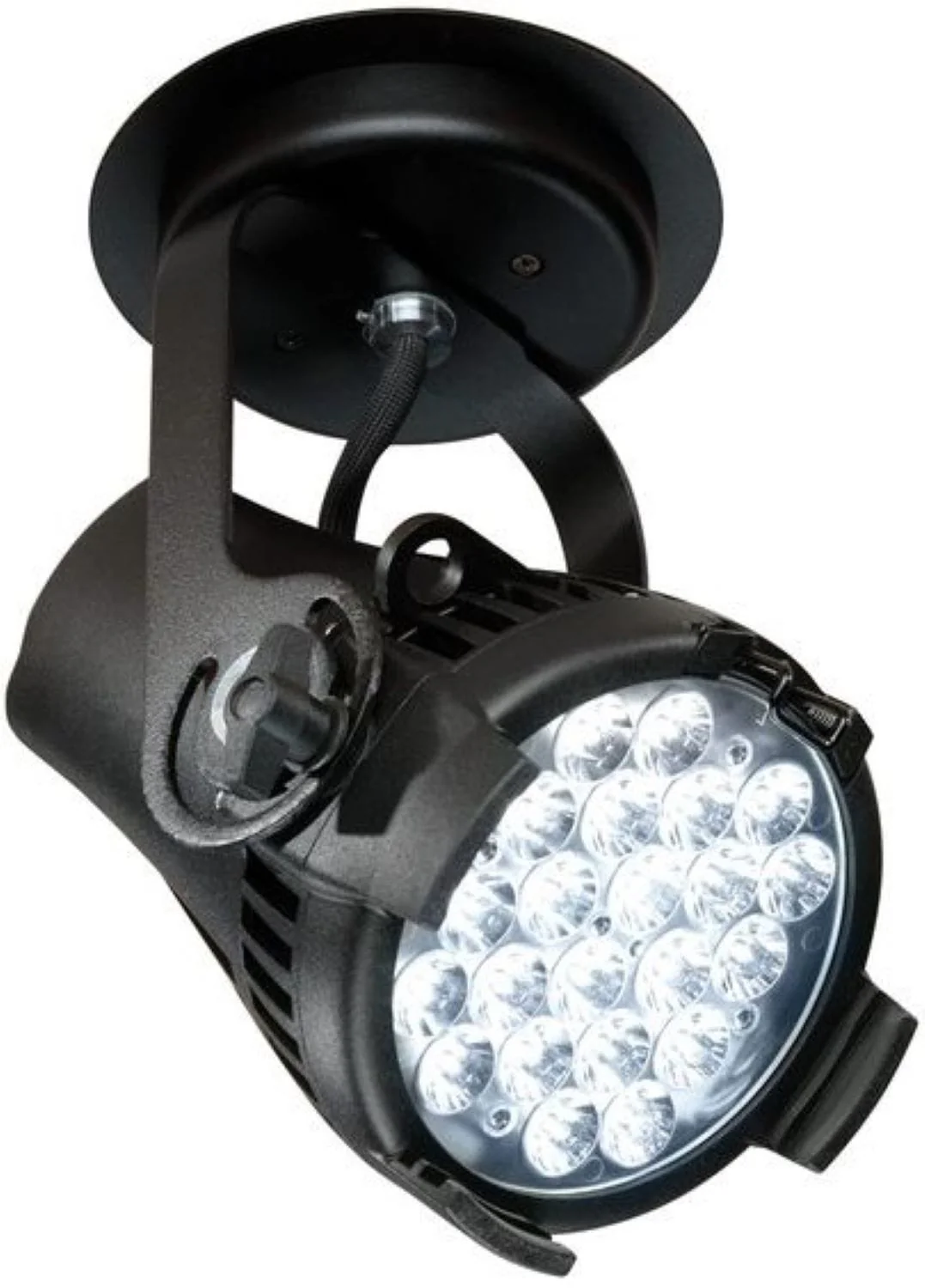

ETC Desire D22 LED Luminaire

ETC Desire D22 LED Luminaire

The Desire D22 LED Luminaire brings lighting control to a remarkably compact form factor.

This rugged wash light integrates the advanced x7 Colour System into a sleek, round design built on a die-cast enclosure engineered for durability in demanding environments.

The wash light operates silently without a fan, and can deliver consistent 3,000K warm-white output, making it an efficient replacement for traditional tungsten fixtures while consuming significantly less power.

The Desire D22 LED Luminaire is available as portable LED, or ceiling-mount canopy configurations to integrate seamlessly into your rig. It is also available in black, silver or white. Plus, choose from Studio Daylight, Studio Tungsten or Studio HD arrays.

Specifications:

• Source:
  • LED details: 22 Lumileds LUXEON® Rebel LED
  • Max lumens: 2,096
  • Lumens per watt: 41
  • L70 rating (hours to 70% output): 50,000 hours
• Colour:
  • Colours used: White
  • Colour temperature range: 2,700–6,500 K
  • Calibrated array: No
  • Red shift: Yes
• Optical;
  • Beam angle: 8°–71°
  • Aperture size: 6 in
  • Pattern projection: No
  • Camera flicker control/Hz range: Yes - 900–25,000 Hz
  • Notes: Secondary lenses available for multiple beam-spread options
• Control:
  • Input method:
    • DMX512 via 5-pin XLR (portable only)
    • Permanent power input cable
  • Protocols: DMX-512/RDM
  • RDM configuration: Yes
  • UI type: LCD
  • Local control: Yes
  • Onboard pre-sets: Yes
  • Onboard sequences: Yes
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Notes: 15-bit virtual dimming engine
• Electrical:
  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method:
    • Requires power from a non-dimmable source
    • Portable: Edison, Schuko or UK13A connector
  • Inrush (over first half-cycle):
    • 17 A at 120 V
    • 25 A at 240 V
  • Fixtures per circuit: 20 (R20 module or similar)
  • Wattage typical: 56.5
  • Current draw:
    • 0.00 A at 110 V
    • 0.48 A at 120 V
    • 0.00 A at 230 V
    • 0.288 A at 240 V
• Thermal:
  • Ambient operating temp: 0°–40° C (32°–104° F)
  • Fan (controllable): No
  • Droop compensation: Yes
  • dB range: N/A
  • BTUs/hour: 192.778
• Physical:
  • Materials: Die-cast, all metal housing
  • Colour: Black
  • Mounting option: Install Canopy
  • IP rating:
    • IP20 for portable and canopy versions
    • IP40 for track version
  • Weight: 3.13 kg (6.9 lb)
  • Included accessories: Hanging yoke
