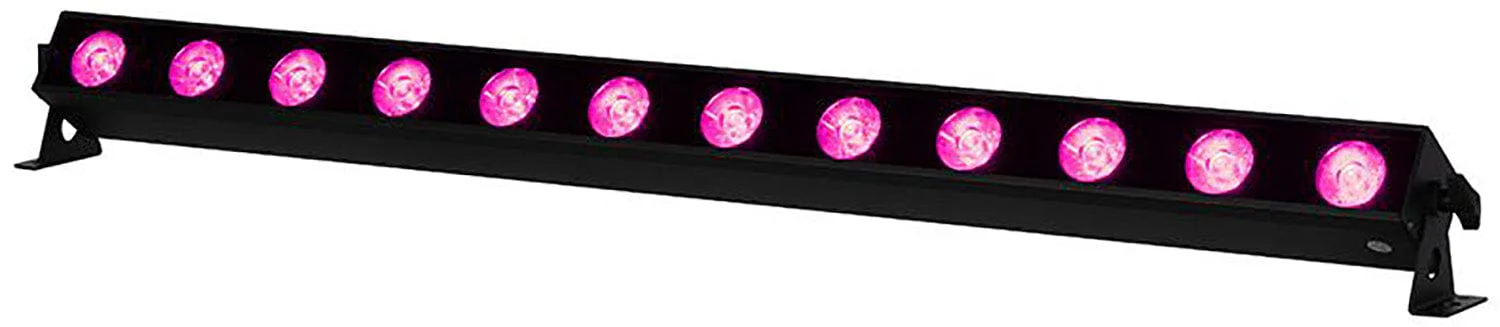

Eliminator UBL12H RGBAL+UV LED Bar Fixture with Wired Digital Communication Network

Eliminator UBL12H RGBAL+UV LED Bar Fixture with Wired Digital Communication Network

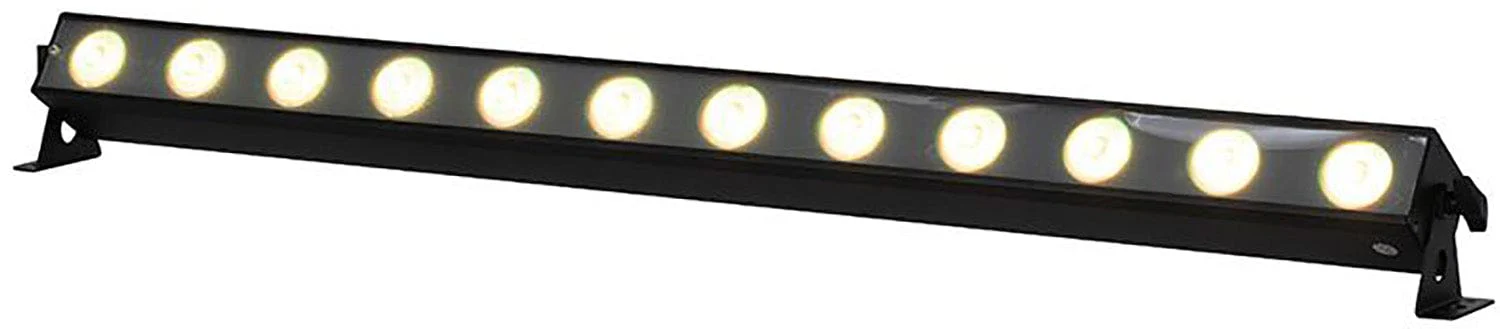

The ADJ Ultra Series has long provided lighting designers and event producers the creativity to create event linear wash lighting for walls, floors and ceilings. The UBL12H incorporates a lime-infused HEX LED with twelve (12) 20-Watt (Red, Green, Blue, Amber, Lime and UV) LEDs. The added lime chip offers a higher caliber of color indexing with a high CRI of over 90 along with tunable white light control from 2,300K to 9,900K.

Features:

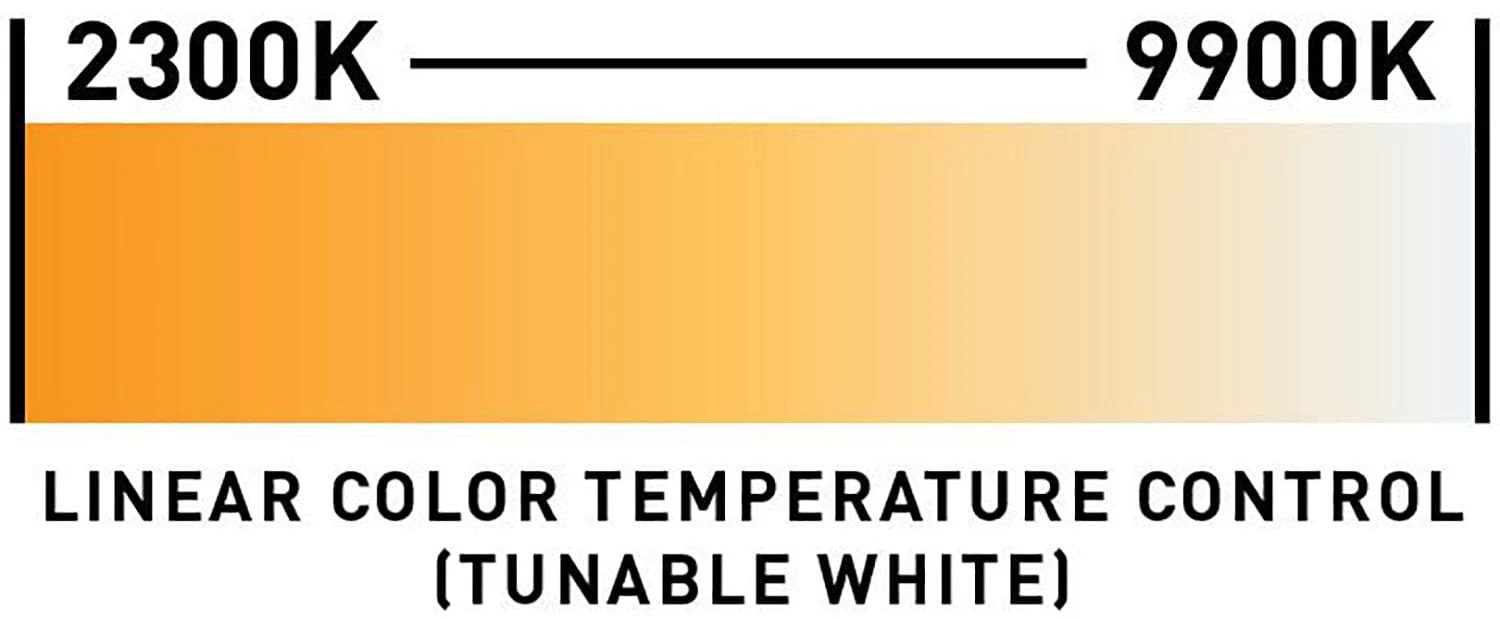

• Linear Color Temperature Control (2,300K to 9,900K)
• Smooth RGBAL+UV color mixing

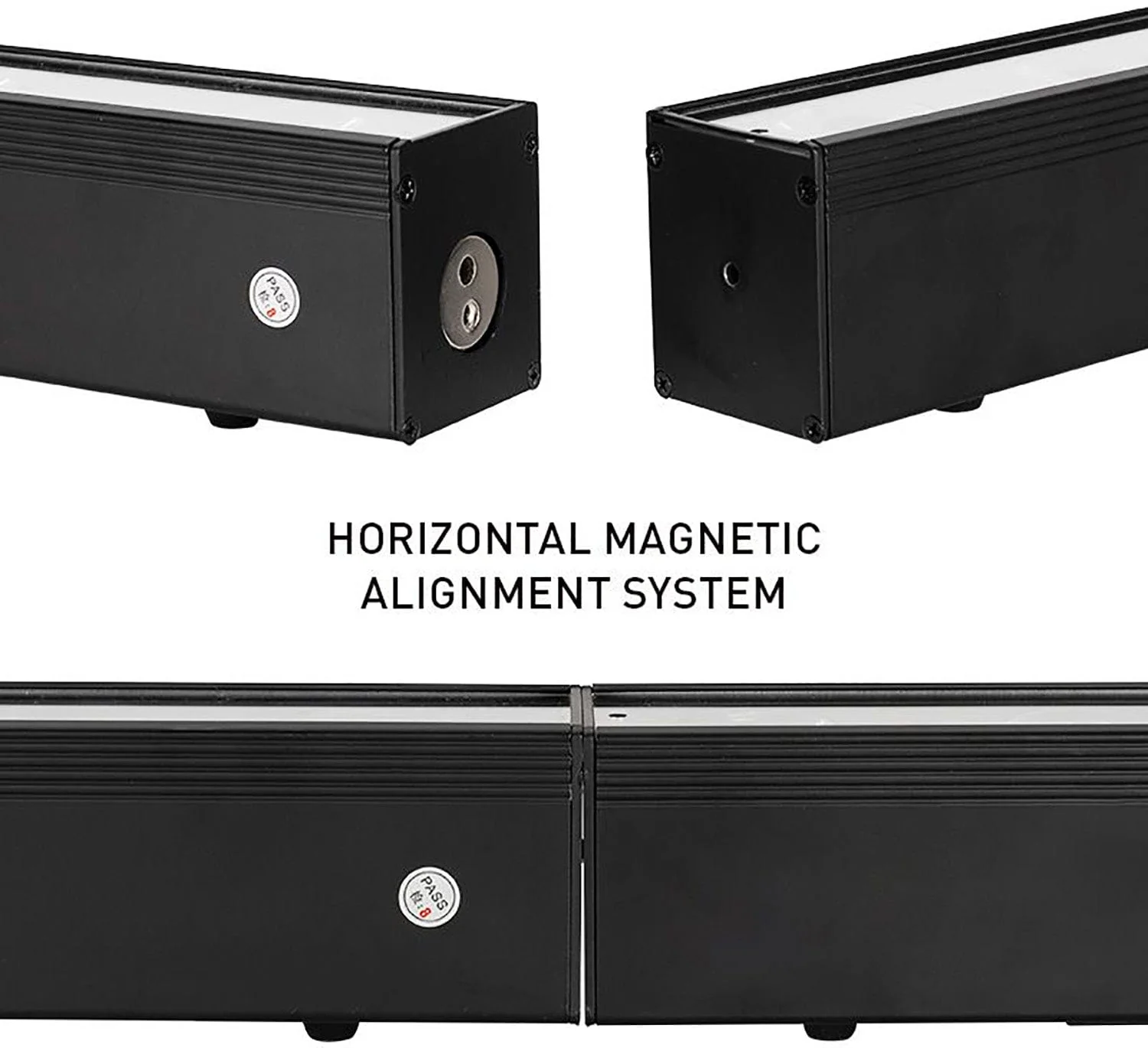

• Horizontal Magnetic Alignment feature (Built-In)

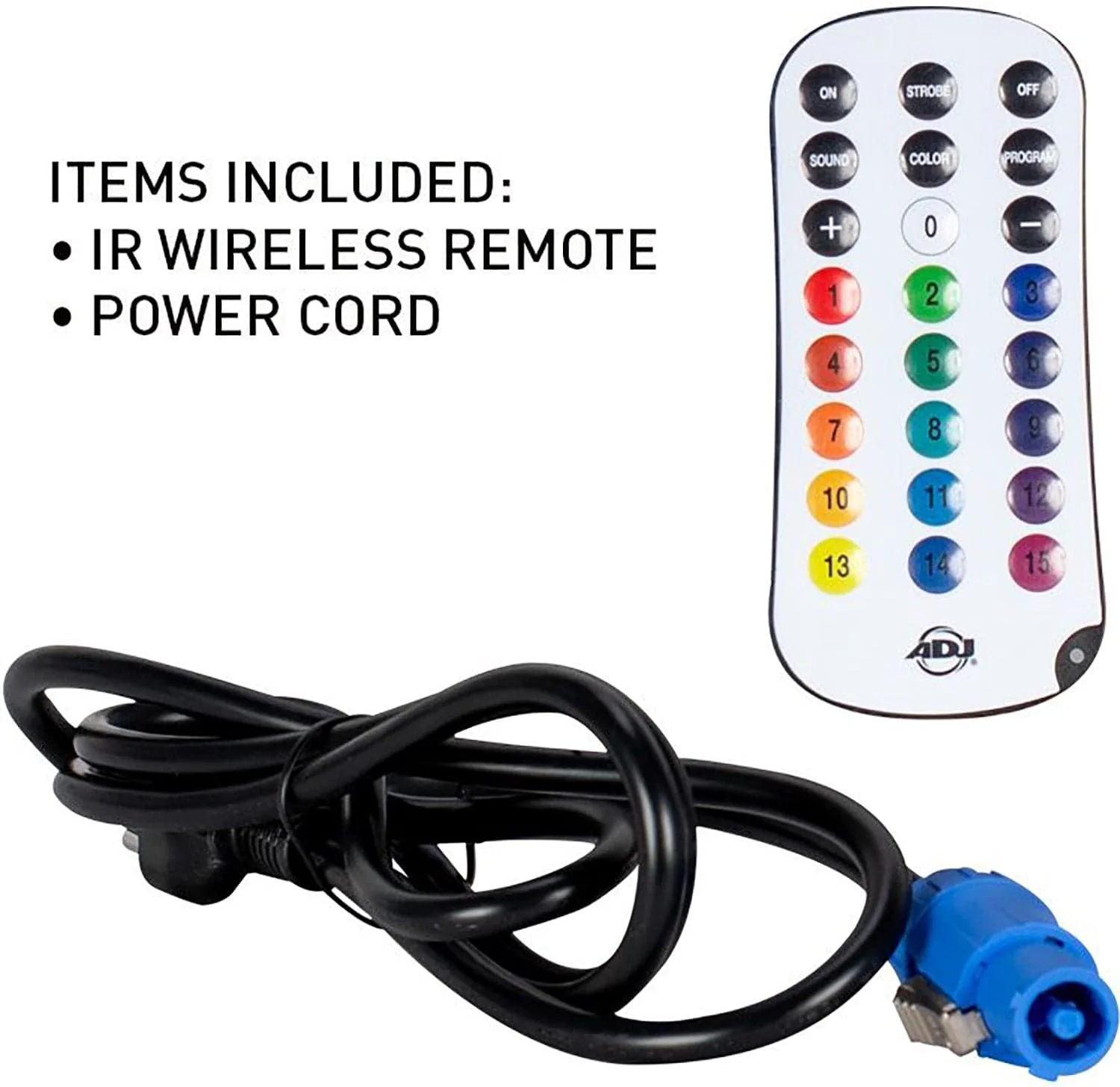

• Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
• RDM Compatible

Specifications:

• Light Source:
  • 12 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
  • Long Life LEDs (Rated at approximately 50,000 hrs.)
  • 17° beam angle
  • CRI >90
  • Pixel Pitch: 85.5mm
• Control:
  • Linear Color Temperature Control (2,300K to 9,900K)

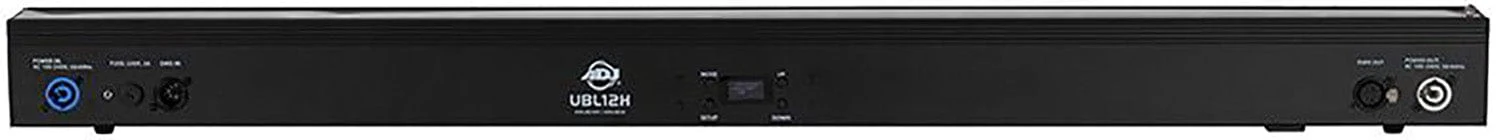

  • OLED Display with 4-buttons
  • 7 DMX Channel Modes: 6, 11, 13, 16, 36, 43, & 46 Channels
  • 6 Groups x2 RGBAL+UV LED pixels controllable via DMX in 36, 43 & 46 channel modes
  • 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
  • LED Refresh Rate: 1.9KHz
  • 64 built-in Color Macros
  • 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
  • Built-In Microphone for sound trigger
  • LED pulse and strobe effect
  • Electronic Dimming: 0-100
• Connections:
  • Linkable: DMX via 5-pin XLR cable
  • Indoor Locking power In/Out to daisy chain power
• Electrical:
  • Multi-voltage operation: AC 100V-240V 50/60Hz
  • Power Draw: 61W
  • Daisy-chain power link (Up to 17 UBL12H's can be linked @120V and up to 32 UBL12H's can be linked @230V)
• Dimensions / Weight:
  • Dimensions (LxWxH): 2.96" x 42.60" x 4.2" (75x1082x106.7mm)
  • Weight: 7.50 lbs./ 3.4kg.
• Certifications / IP Rating:
  • cETLus (Control # 4002034)
  • CE
  • FCC
  • IP20
• Environment:
  • Operational Temperature Range: -1°F ~ 113°F (-20°C ~ 45°C)
  • Storage Temperature: -22°F ~ 113°F (-20°C ~ 45°C)
