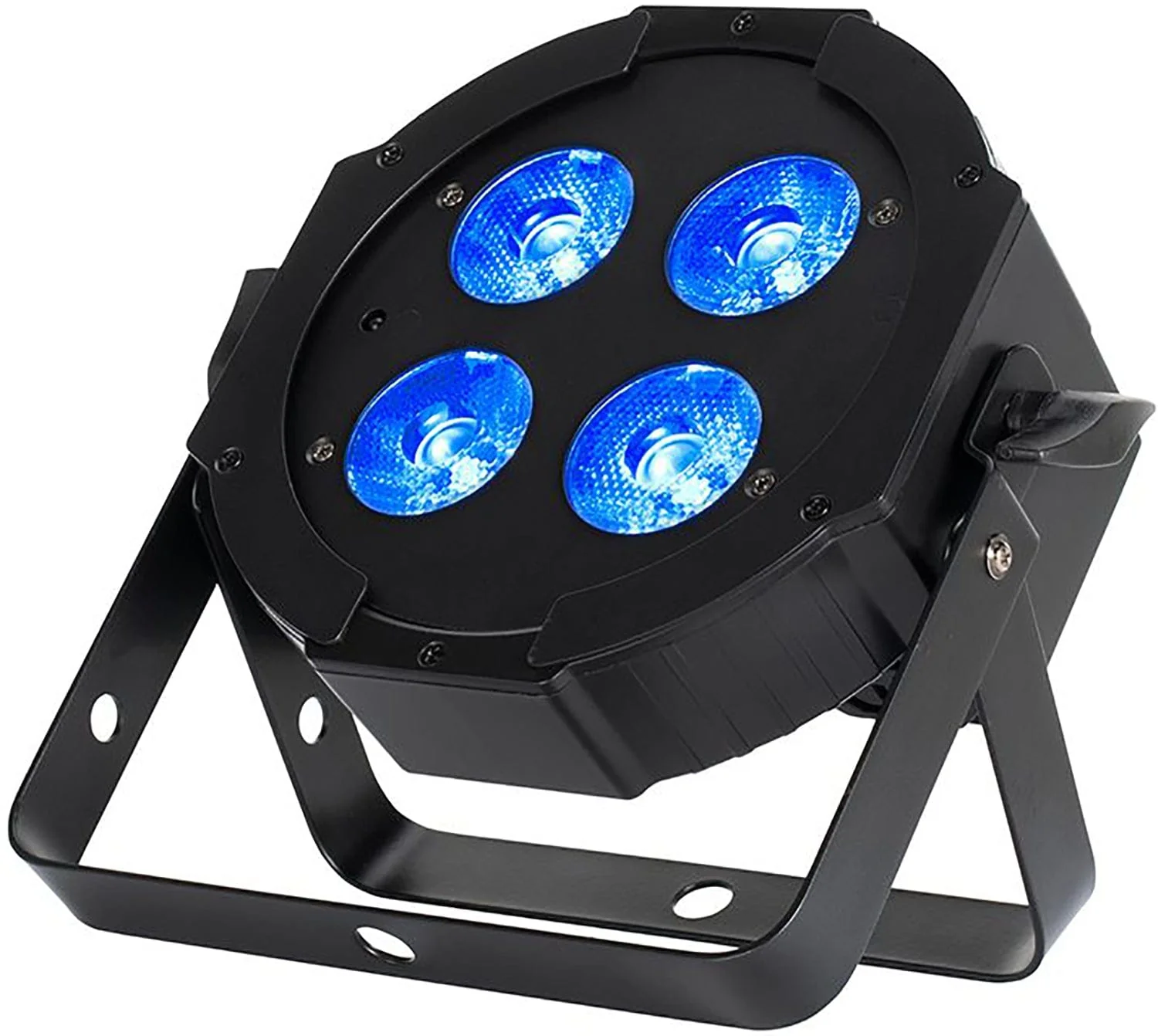

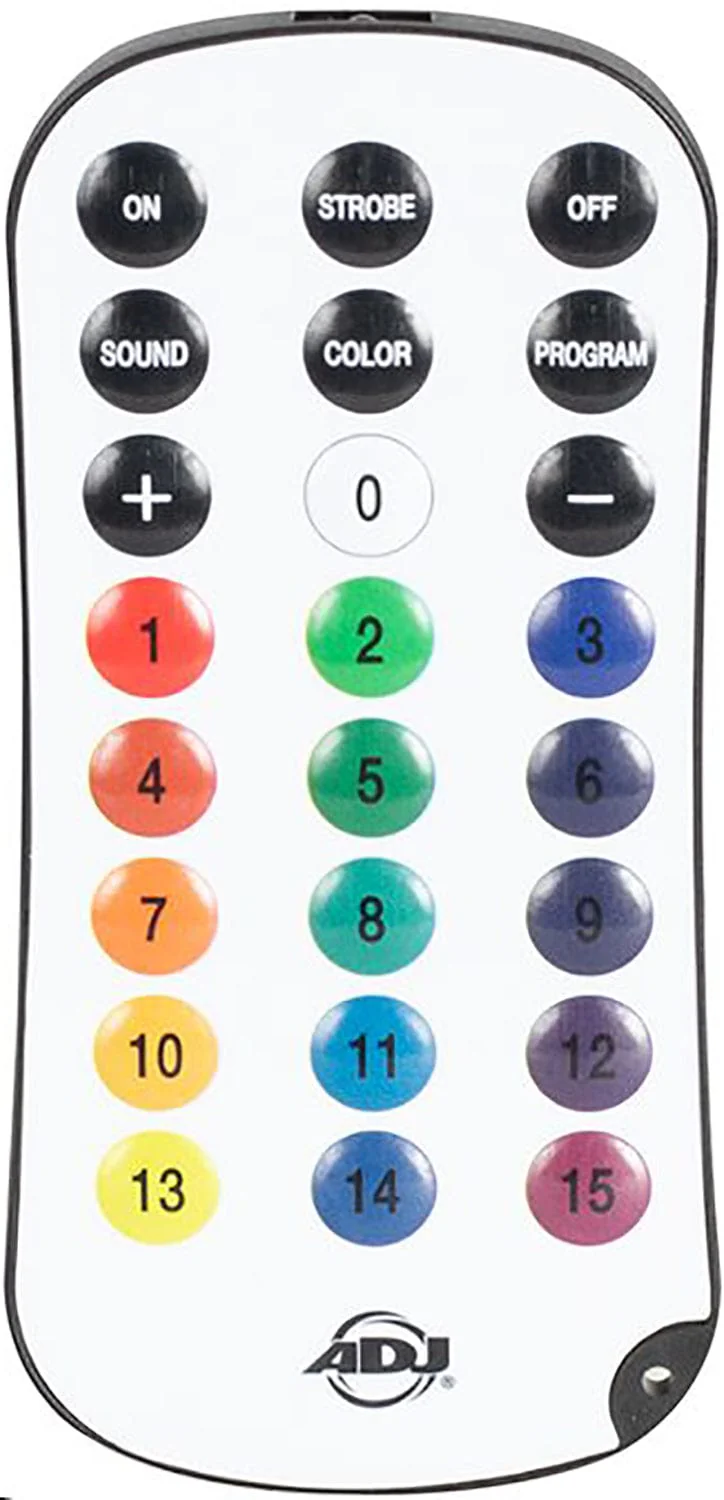

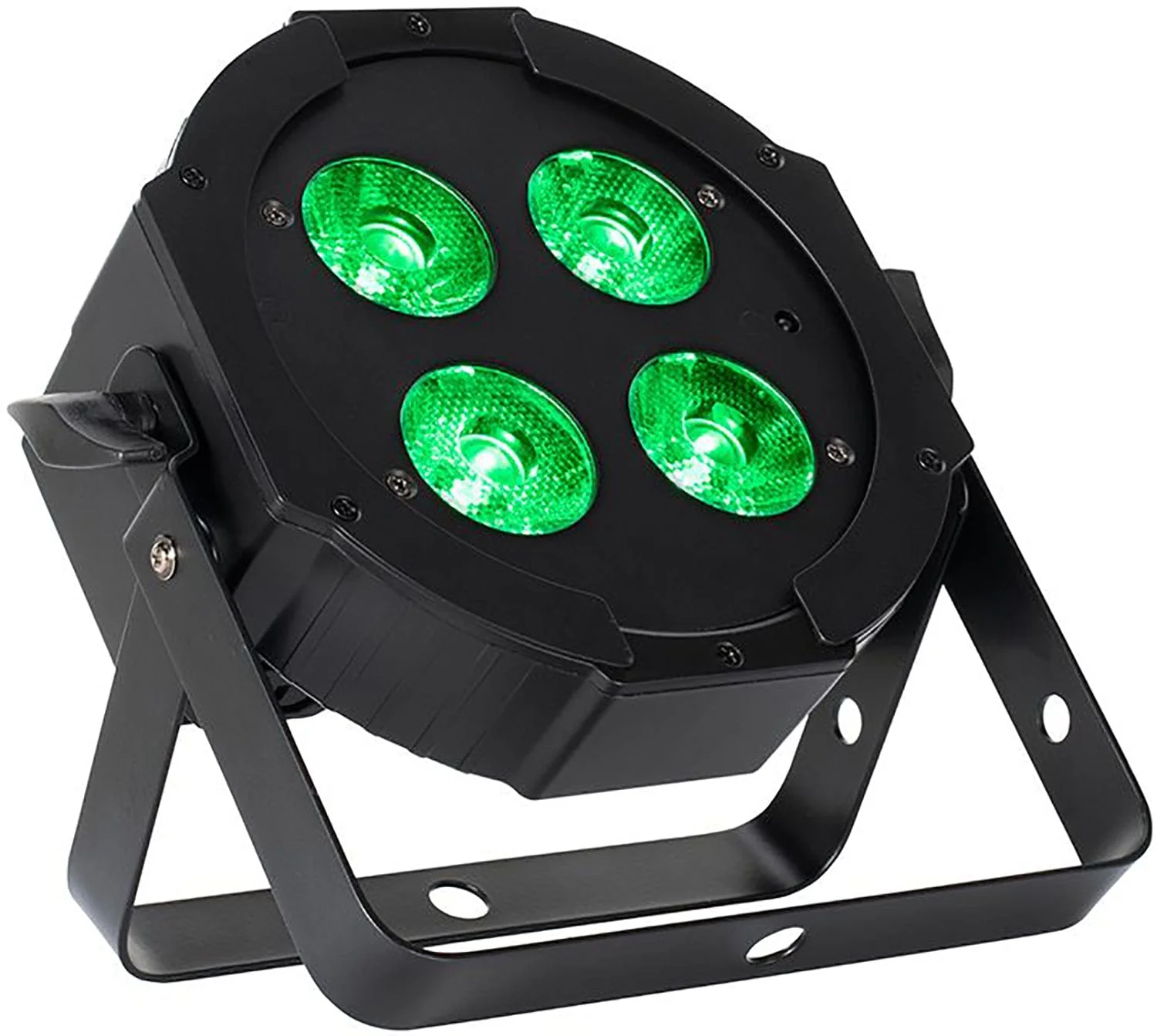

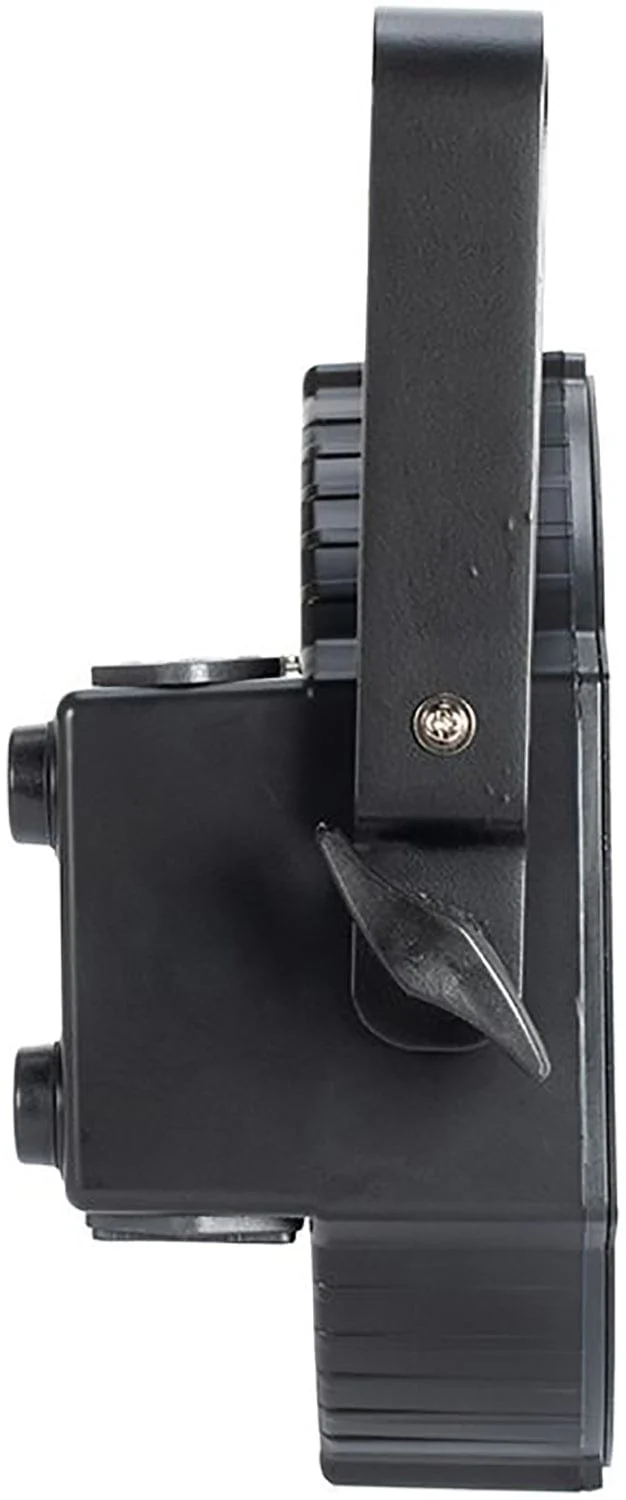

The Eliminator Mega Hex L Par is a compact and lightweight LED Par with 4 x 20-Watt, 6-IN-1 (RGBLA + UV) LEDs and Eliminator's patented “sit-flat” design so that it may sit directly on the ground or inside truss. It includes the UC IR24 wireless IR remote control. The addition of the Lime LED chip creates a high CRI output and allows users to control the white color temperature of this fixture. It's a HEX LED par with a twist of lime!

Specifications:

• Source:
  • 4 x 20-Watt, 6-IN-1 Hex (RGBLA+UV) LEDs (50,000 hrs.)
  • CRI: >90
  • Lumens: 1100
  • Beam Angle: 17-degrees (native); 20-degree (with frost filter)
• Effects:
  • White Color Temperature Control (2300K – 9900K)
  • 15 White Color Temperature Presets
  • 63 built-in Color Macros
  • 13 built-in programs
  • Flicker Free
  • Electronic Dimming: 0-100%
  • 6 Dimmer Curve Modes
  • Color strobe effect
• Control:
  • 7 DMX Channel modes: 6, 8, 9, 12, 14, 15 and 17 channel modes
  • 5 Operational modes: Auto Run Mode (16 Color Change Mode, 16 Color Fade Modes, & 1 Combined Mode), Sound Active Mode (16 Modes), RGBLA + UV Dimmer Mode, Static Color Mode (63 Colors), and DMX Controlled

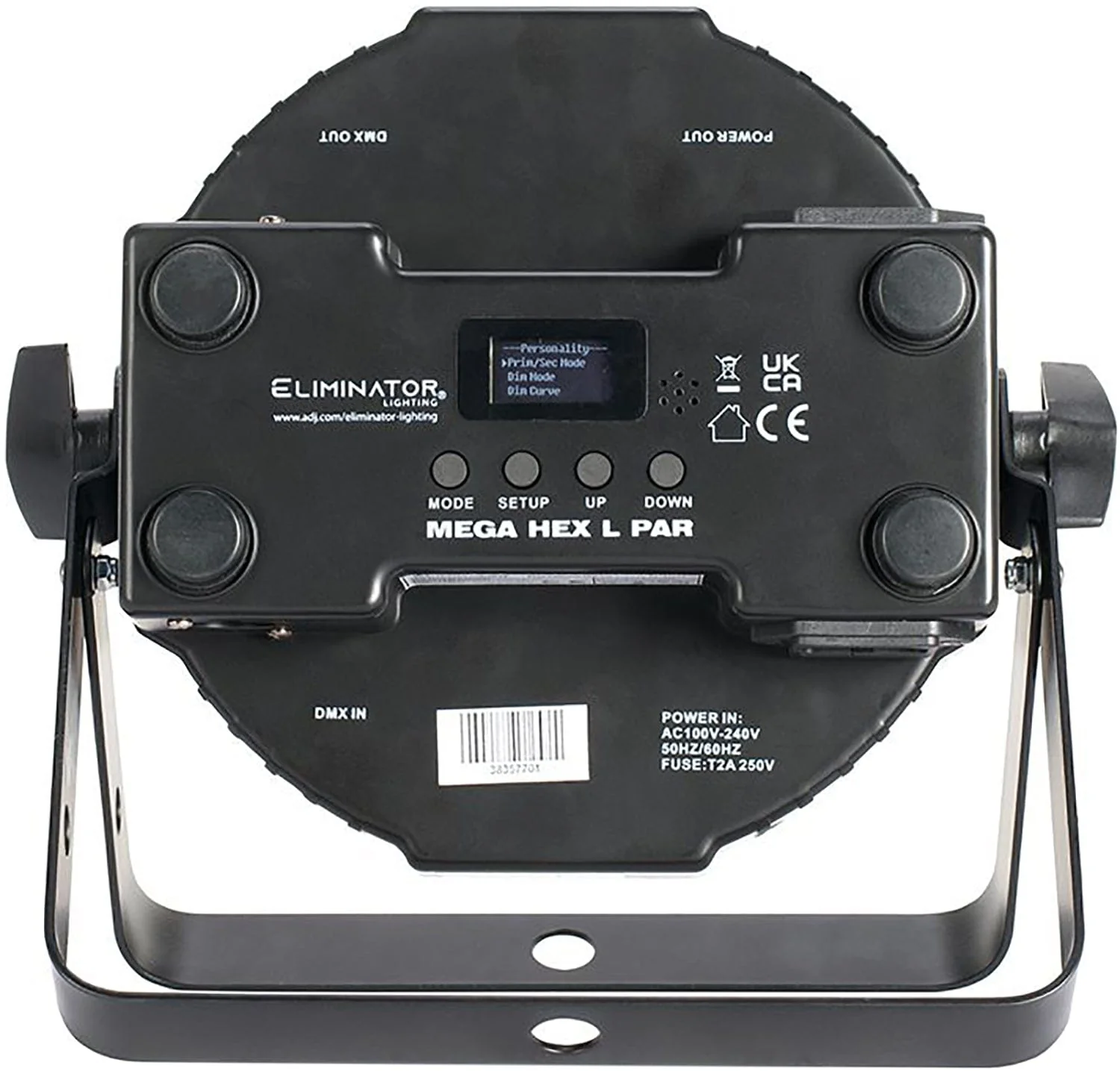

  • 4-button with OLED display menu for easy navigation
  • Stand Alone or Primary/Secondary Configuration
  • DMX-512 protocol
• Connections:

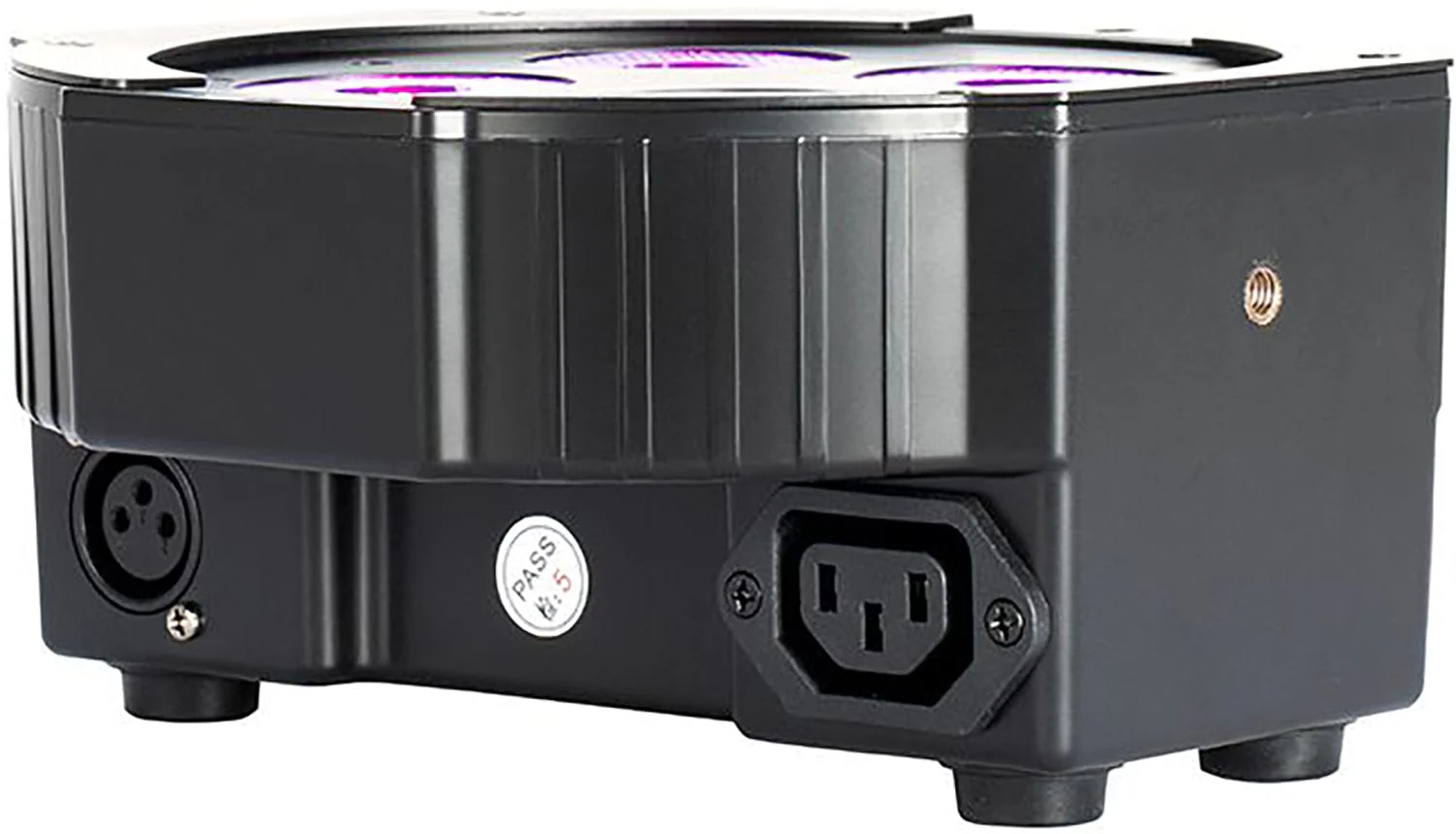

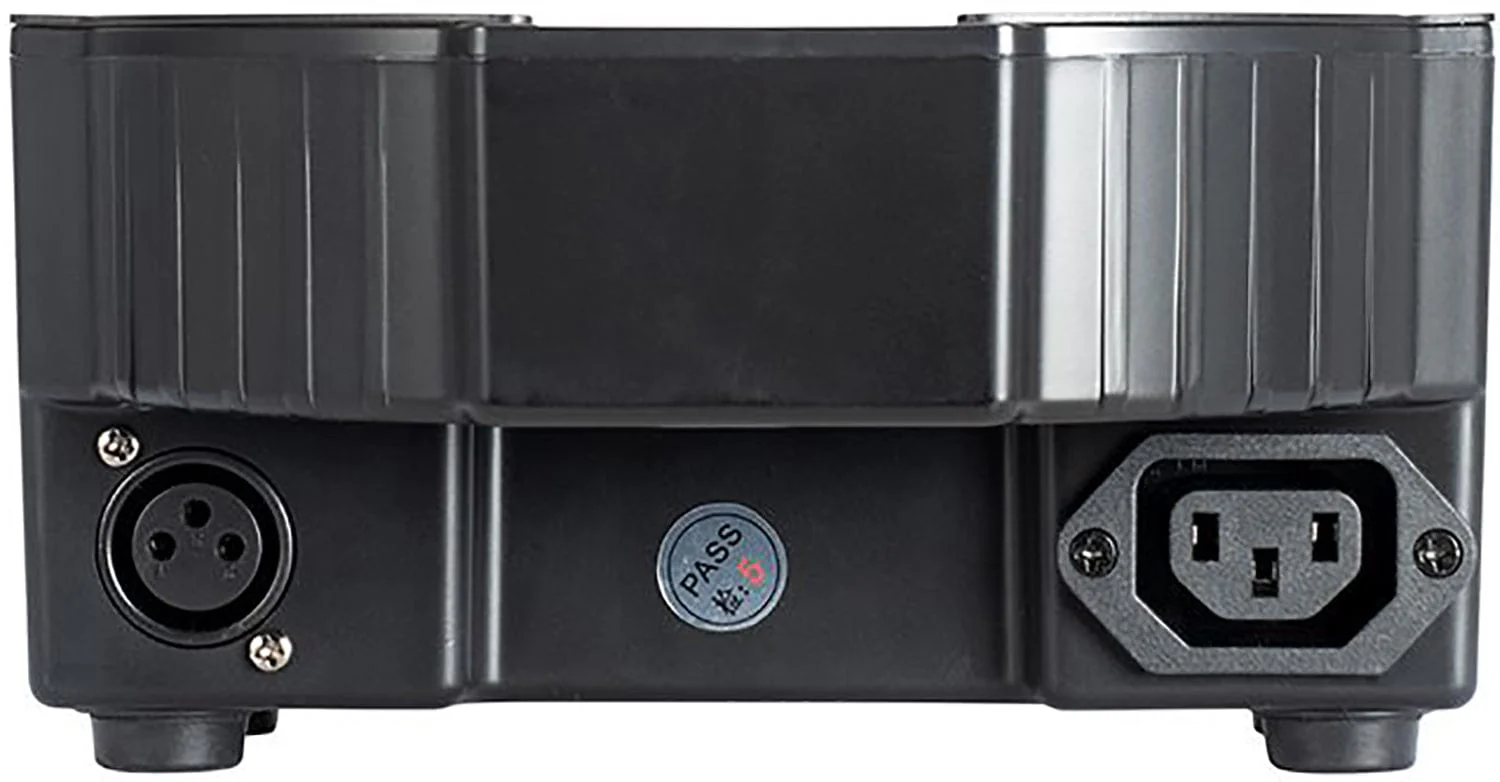

  • 3-pin DMX Inputs/Outputs

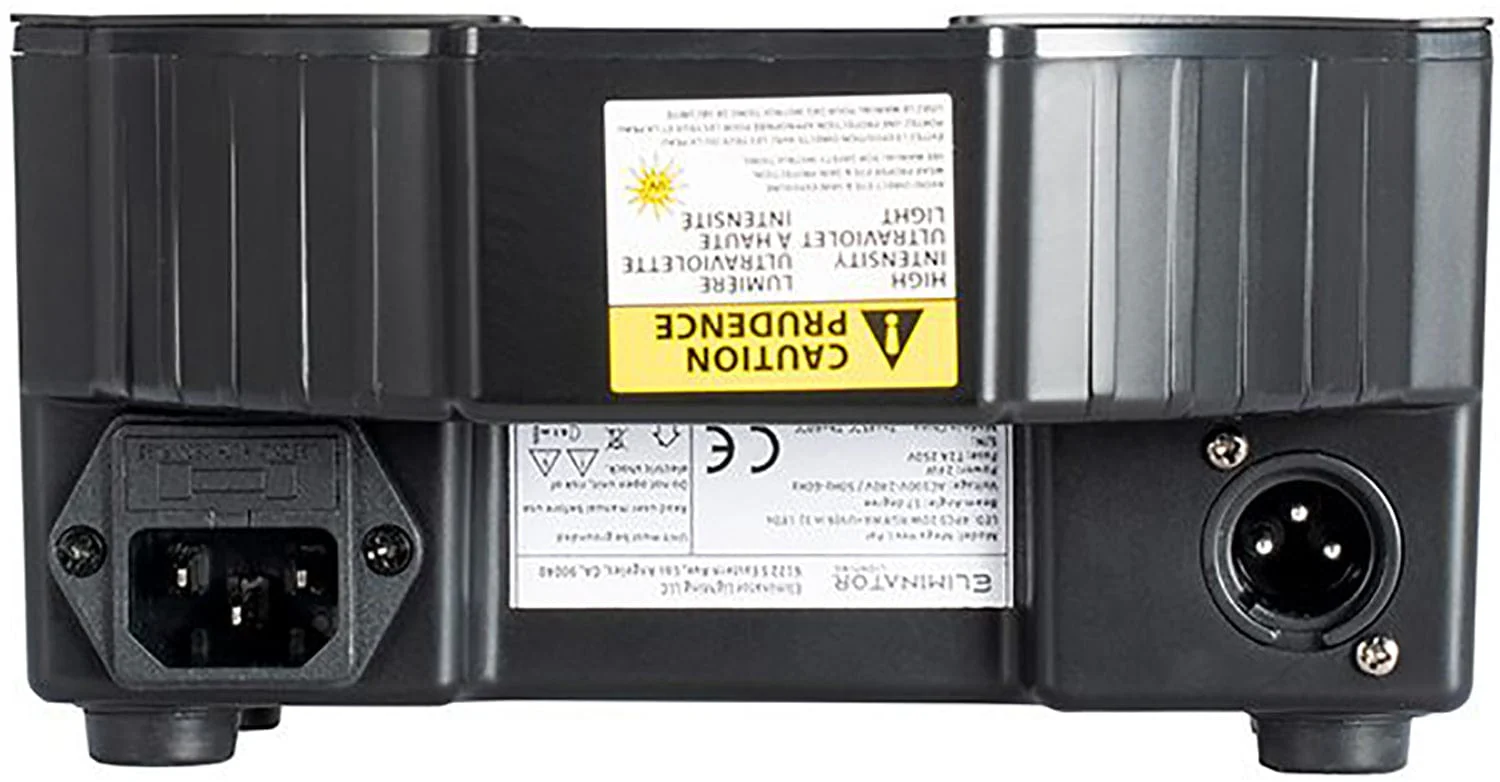

  • IEC AC input and output on the side of the fixture to daisy chain the power (link up to 20 fixtures @120V, up to 40 fixtures @230V)
  • With Wired Digital Communication Network
• Electrical:
  • Multi-voltage operation: AC 100V-240V 50/60Hz
  • Power Draw: 24W Max
• Dimensions / Weight:
  • Dimensions (LxWxH): 10.25”x 10.25”x 4.25”/ 261x260x110mm
  • Weight: 4 lbs./ 1.87 kg.
