Electro-Voice ELX115 Loudspeaker

Electro-Voice ELX115 15" Passive Loudspeaker

A powerful step up from the ELX112, the 15" woofer and 1000 W amplifier in the EV ELX115P Powered Speaker delivers extended lower frequencies and room-filling volume.

Features:

• Designed for House of Worship, Pro Music, and other applications.
• 15" woofer and 1.5" high-frequency titanium compression driver
• 44 Hz – 20 kHz frequency range; 134 dB max SPL
• 1000 W Class D lightweight amplifier — runs cool without fans
• Easy to connect and control with versatile input and output options

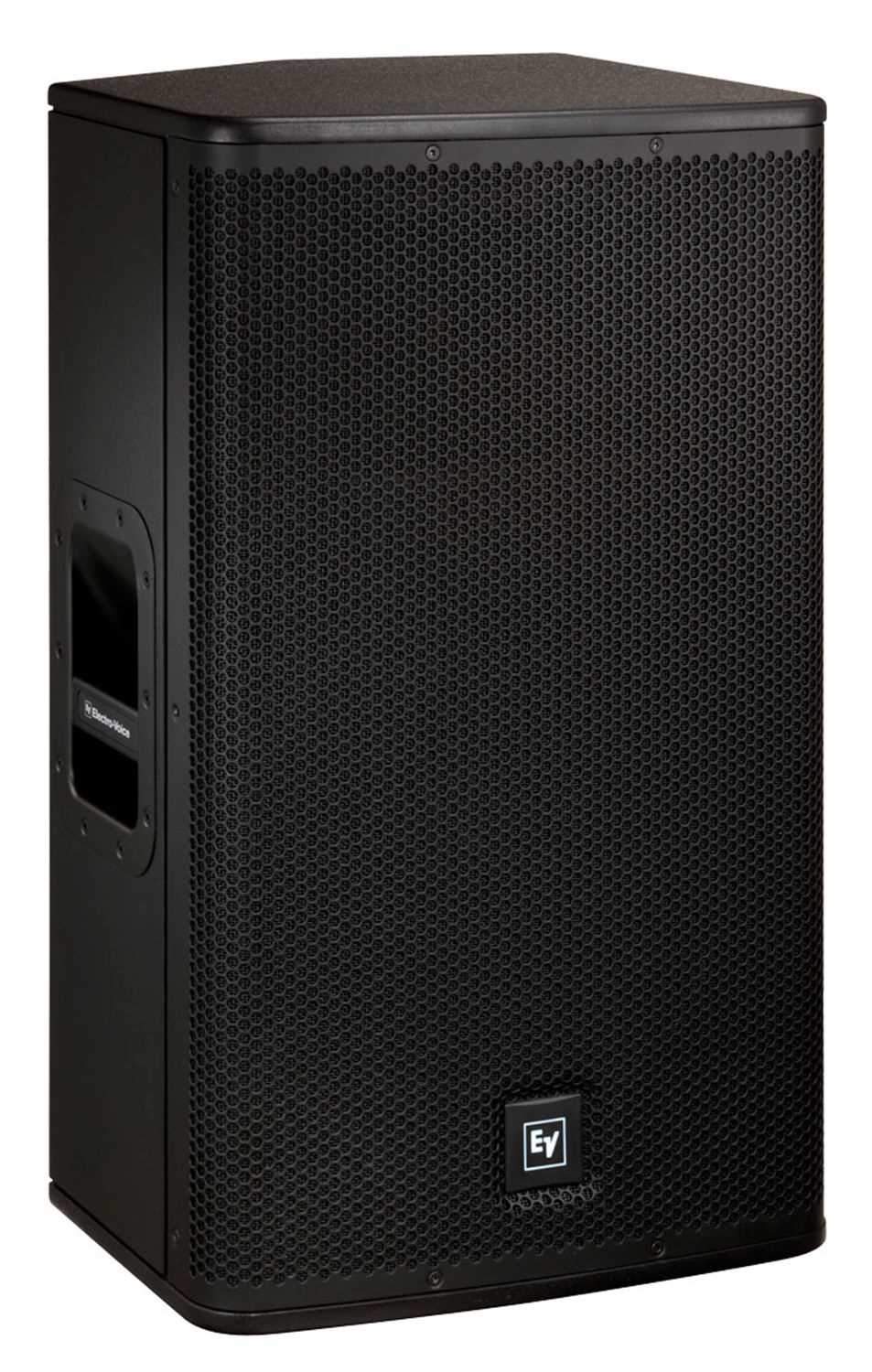

• Rugged wood cabinet — pole mounts or stacks with Live X Subwoofers

Specifications:

• Case Material: 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
• Frequency Response (-3 dB): 56 Hz - 18 k Hz
• Frequency Response (-10 dB): 44 Hz - 20 k Hz
• Max. SPL/1m (calc): 134 dB
• Coverage (Nominal -6 dB): H° 90 °
• Coverage (Nominal -6 dB): V° 50 °
• LF Transducer: (1) EVS-15K, 381mm (15") Woofer
• HF Transducer: DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
• Crossover Frequency: 1.7 k Hz

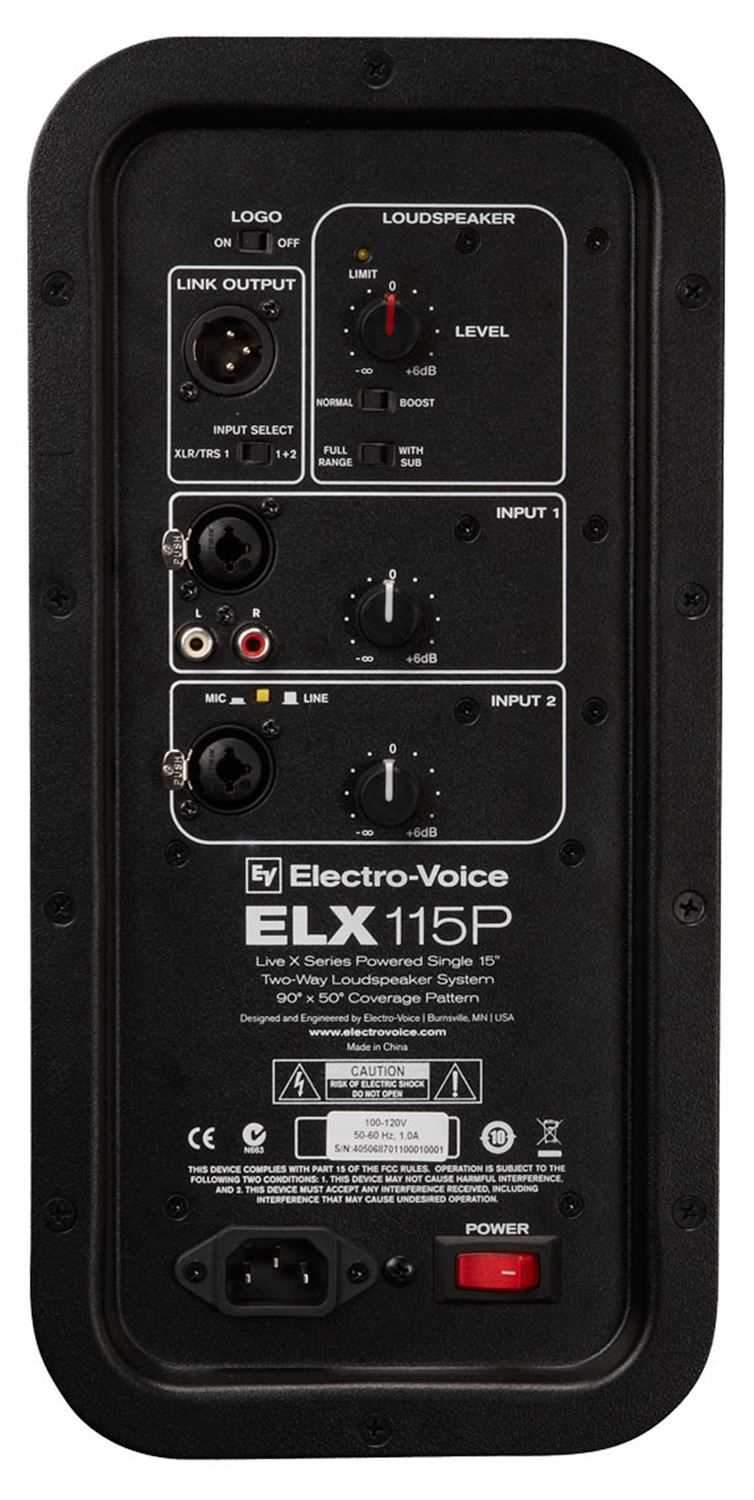

• Connector Type: (2) XLR/TRS Combo Jacks, (1) Stereo RCA, (1) XLR Link Output
• Grill: 18GA Steel with Black Powdercoat
• Height: 708 mm (27.87")
• Width: 432 mm (17.01")
• Depth: 382 mm (15.04")
• Weight Net: 24.3 kg (53.57 lbs)
• Shipping Weight: 29.5 kg (65.04 lbs)
