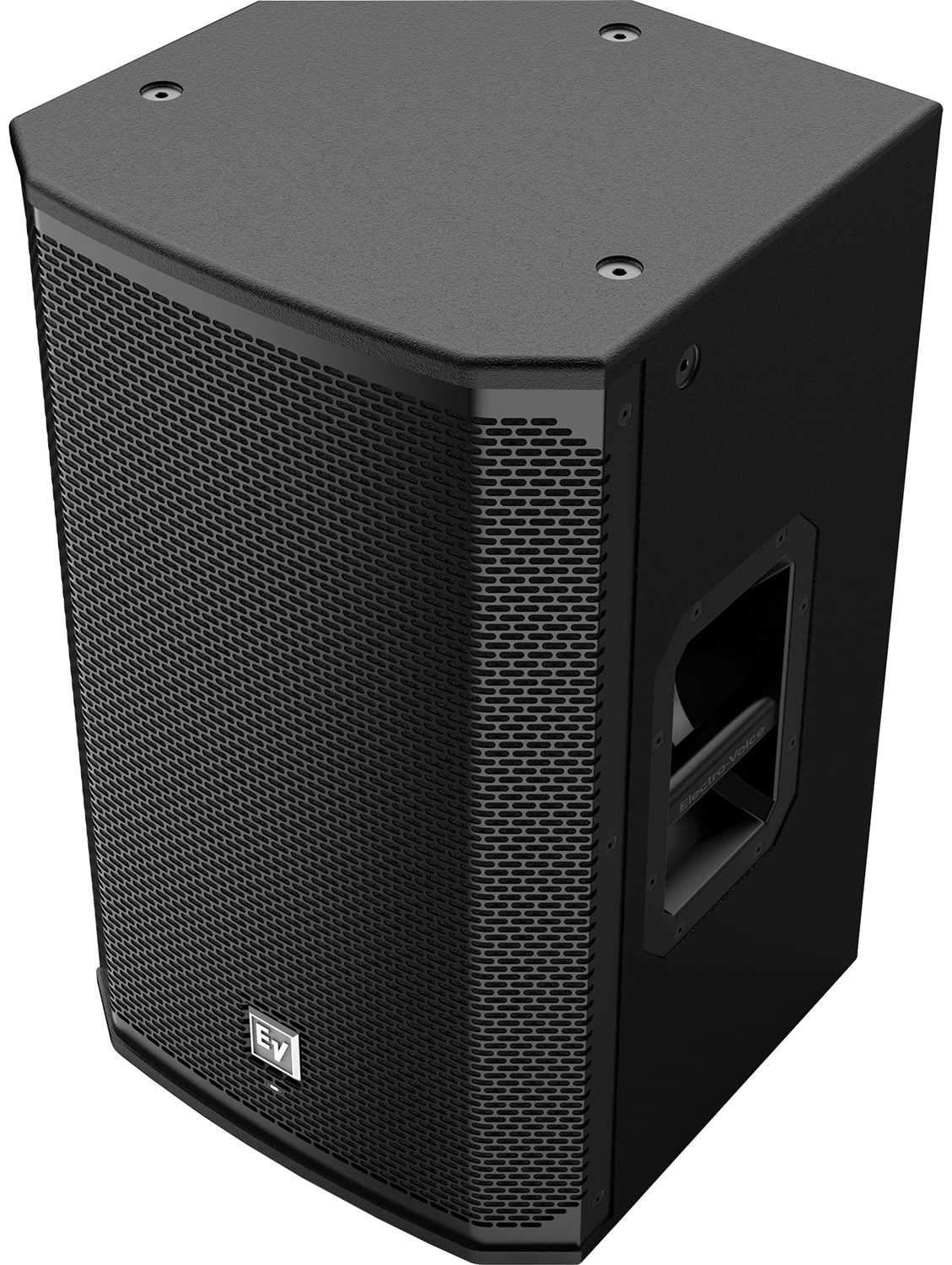

Electro-Voice EKX-12P 12-Inch Powered Speaker

Electro-Voice EKX-12P 12-Inch 2-Way 1500 Watt Powered PA Speaker

This item is only sold in pairs.

Features:

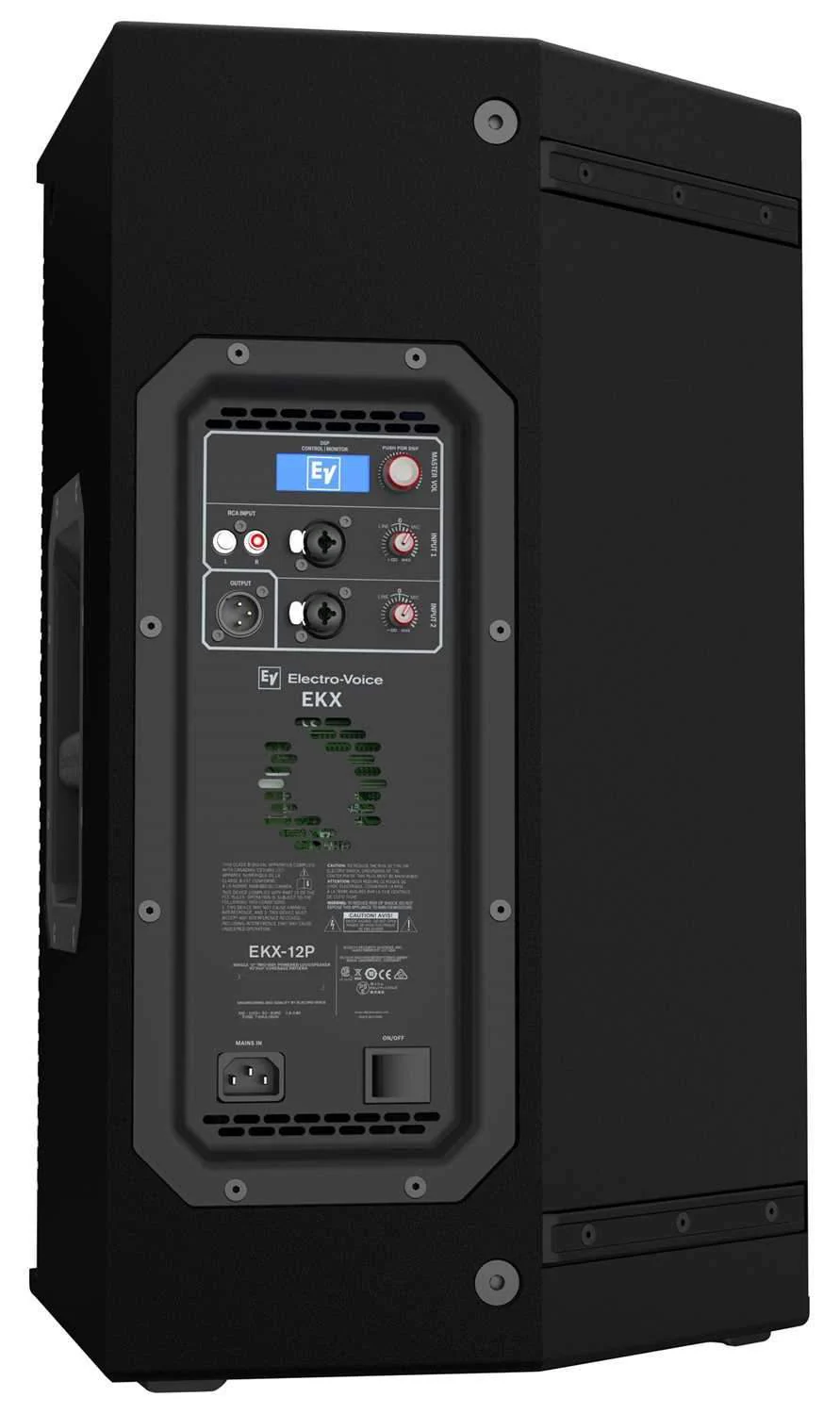

• QuickSmartDSP features best-inch-class processing, EV's signature single-knob user interface, and intuitive menu navigation via LCD.
• High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
• Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.

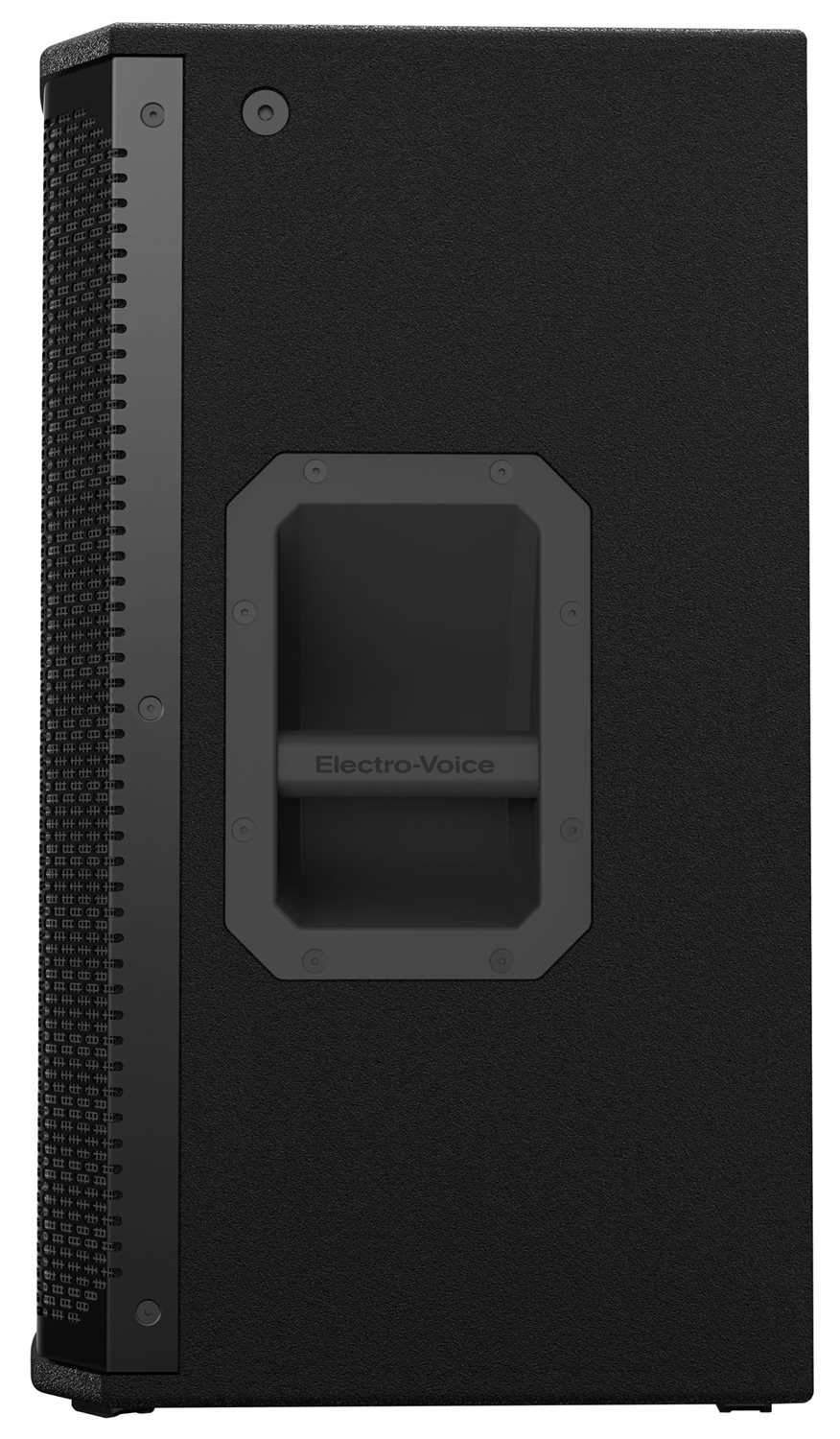

• Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

Specifications:

• Connector Type: (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
• Coverage (Nominal -6 dB) H: 90°
• Coverage (Nominal -6 dB) V: 60°
• Crossover Frequency: 1.7 k Hz
• Enclosure Material: 15 mm, plywood with EVCoat
• Frequency Response (-10 dB): 50 Hz - 20 kHz Hz Full space measurement using the music DSP preset.
• Frequency Response (-3 dB): 60 Hz - 18 kHz Hz Full space measurement using the music DSP preset.
• Grill: 18 AWG steel with powdercoat
• HF Transducer: DH-1M 1-inch titanium compression driver
• LF Transducer: EVS-12M 300 mm (12 in)
• Maximum SPL: 132 dB dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
• Power Consumption: 1.8 A Current rating is 1/8 power
• Power Rating: 1500 W
• Suspension: (8) M10 threaded mounting points
• Height: 14RU 607 mm (23.9")
• Width: 375 mm (14.76")
• Depth: 356 mm (14.02")
• Weight: 18.8 kg (41.45 lbs.)
