ELC Lighting DLN8SFI 2 Ethernet-In 8 DMX-Out Node

ELC Lighting DLN8SFI 2 Ethernet-In 8 DMX-Out Node

DMX to Ethernet/Ethernet to DMX node with 8 fully programmable DMX ports. This comprehensively-featured node offers data splitting, merging, softpatching, and backup when programmed using ELC’s dmXLAN freeware. DLN8S-FI has fully isolated DMX ports.

Features:

• DMX to Ethernet & Ethernet to DMX conversion
• Remote programming and monitoring using ELC dmXLAN (free download)
• DMX input options: normal or backup
• DMX output options: normal, merging in HTP, LTP, channel custom, priority merging, full softpatch (channel by channel), programmable merging with DMX channel control
• Remote capture and control of fixture parameters
• Local control via backlit display, rotary encoder/ selector pushbutton
• Support for WYSIWYG, ESP, Capture
• Fully-isolated version available

Specifications:

• Dimensions: 19” x 1U x 160mm, 2.5kg (box size: 570 x 280 x 72mm, 2.9kg gross)
• Power: 100-240VAC 50/60Hz, fixed mains lead

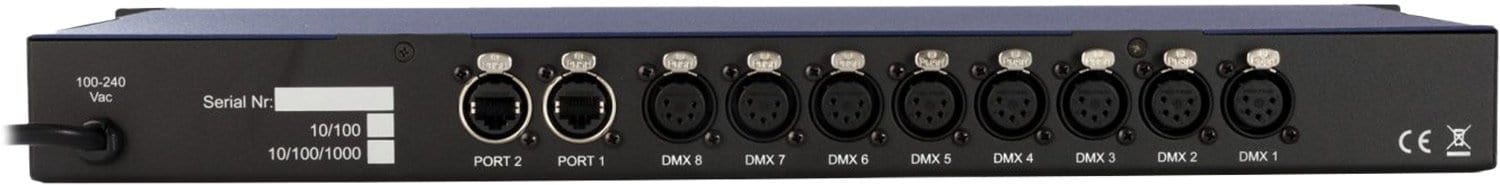

• Connections:
  • 8 x XLR5 (F) programmable for input or output
  • 2 x 10/100Mbit Ethernet connection on Neutrik
  • Ethercon
• Controls Dual purpose rotary selector with push button ‘enter’ switch, backlit LCD display, setup push buttons, LED indication of power on and network activity, mains on/off switch
• Options:
  • ELC dmXLAN software (free download from www.elclighting.com)
  • Connections options: 3-pin or 5-pin XLR, M or F to special order
• Supplied: dmXLAN8S, fitted mains cable, operator leaflet
• Versions:
  • DLN8S: dmXLAN node with 2 Ethernet ports & 8 in/out
  • DMX ports
  • DLN8S-FI: dmXLAN node with 2 Ethernet ports & 8 fully isolated in/out DMX ports
• Related products:
  • DLN8GB: dmXLAN node with 8 DMX in/out ports and 2 Gigabit Ethernet ports
  • DLS8LX range of 8 port Ethernet switches
