DirectOut DOMIO0006 64-Channel MADI Optical SC I/O Card for PRODIGY

DirectOut DOMIO0006 64-Channel MADI Optical SC I/O Card for PRODIGY

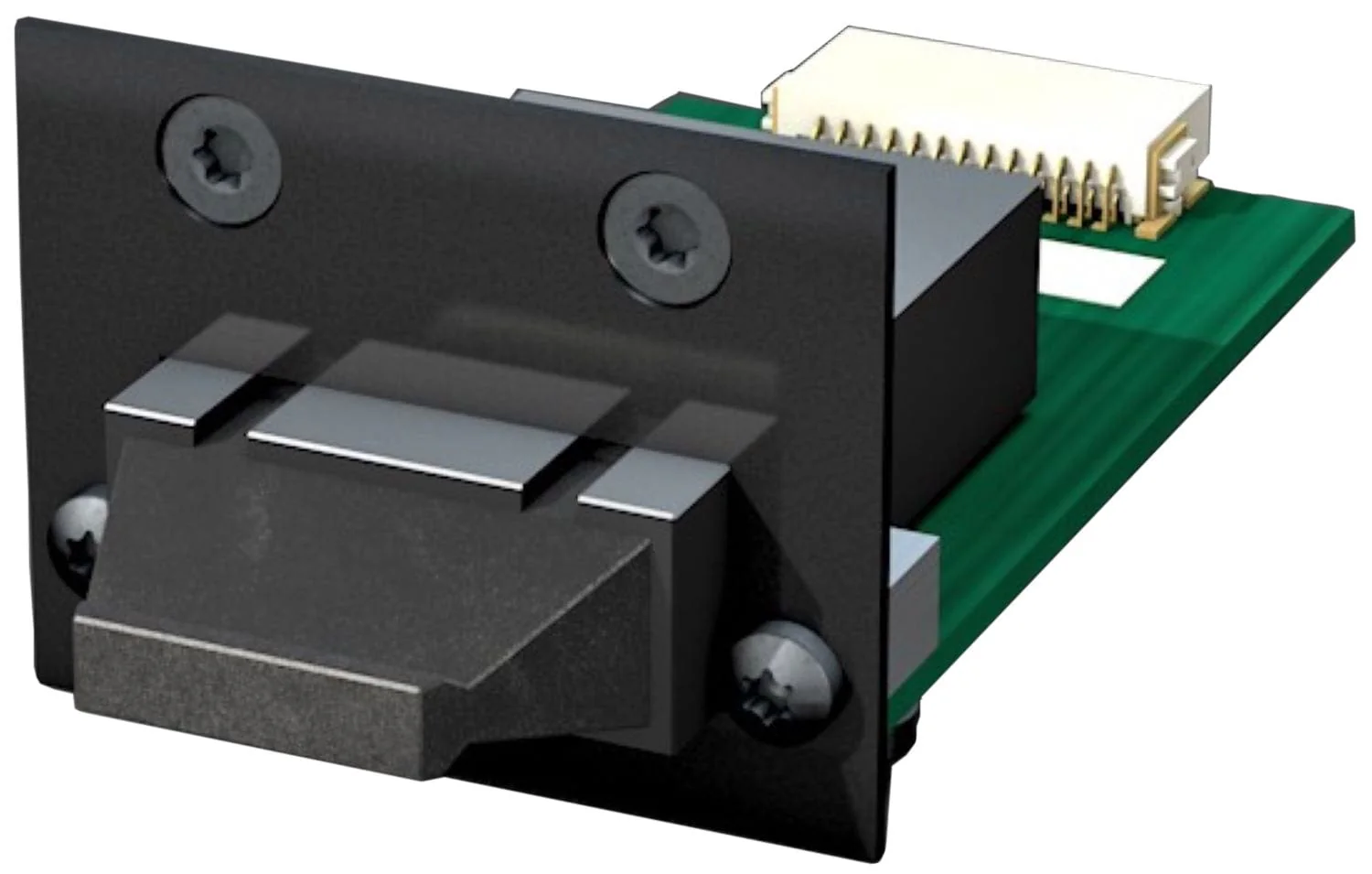

SC.IO is a MADI module for the PRODIGY and EXBOX Series. The MADI port connects 64 audio channels of digital input and output signals via a SC socket. The socket is available for multi-mode cabling. A version for single-mode cabling is available on request. The amount of audio channels is reduced at higher sample rates - 32 channels @ 2 FS or 16 channels @ 4 FS. The transmission via fibre cable typically allows for long distance connections depending on the fibre mode (up to 2000 m, multi-mode or 10000 m, single mode) and the sender / receiver device. The fibre modes of transceiver and cabling are required to match. The PRODIGY Series offers low latency sample rate conversion (FastSRC™) for input and output.

Specifications:

• 64 channels (1 FS), 32 channels (2 FS), 16 channels (4 FS)
• Sample Rate 44.1 kHz up to 192 kHz
• 48k / 96kFrame
• 56 / 57 / 64 channel mode
• AES10 compliant
• 1 x SC socket, multi-mode* (input/output)
• ISO/IEC 9314-3
• Wave length 1310 nm
• Multi-Mode 62.5/125 or 50/125
• Out level: -19 dBm / max -14 dBm
• In level: > -30 dBm / max -14 dBm
