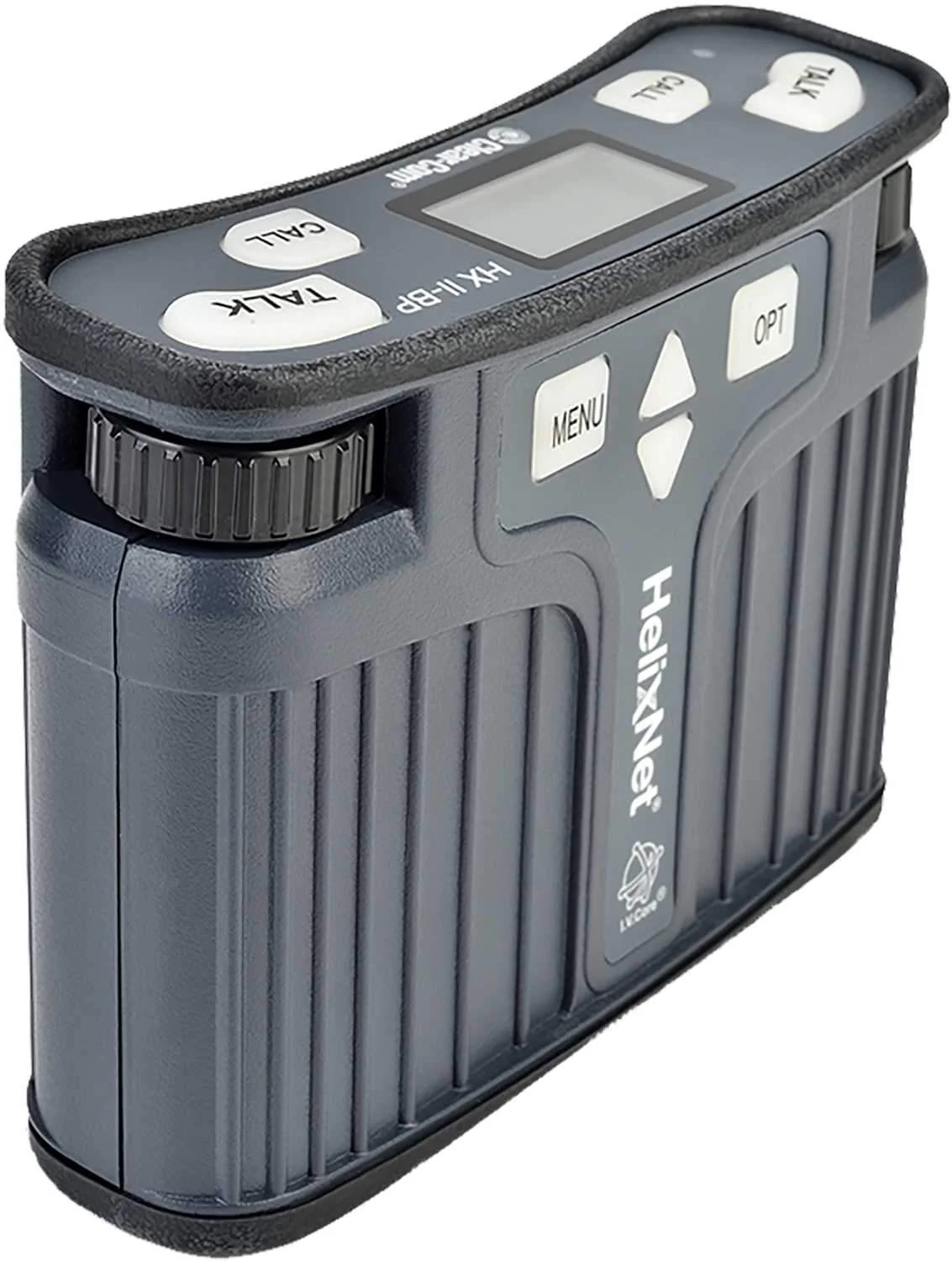

Clear-Com HXII-BP-4KN Beltpack
Clear-Com HXII-BP-4KN Beltpack
Single Cable Operation
All networked intercom channels and power for beltpacks or a combination of user devices can be transmitted over a single shielded twisted-pair cable (mic cable for powerline, CAT5/6 for Power-over-Ethernet).
Stackable Keys
Multiple channels can be assigned to a single key, allowing one key to address many channels with a single push of a button.
Power and Audio Over a Single Cable
Carry power and audio over Power-over-Ethernet (PoE) or a single twisted-pair XLR cable to deliver up to 2 of any 24 available channels and program feed audio to the beltpack.
Turn USB Port into a Call Assignment
When a USB light is connected to the beltpack via the USB Micro-AB port, the beltpack can be configured to blink the light or keep the light on for assigned channels.
Features:
- 2-Channel Full-duplex Digital Beltpack
- Access to any 2 channels from up to 24 available channels of audio
- Assign to a pre-defined role to make sure multiple devices are configured identically
- Power and audio over a Power-over-Ethernet (PoE) or single XLR cable
- Program audio with separate program level control
- Stacked key assigns multiple channels to a single key

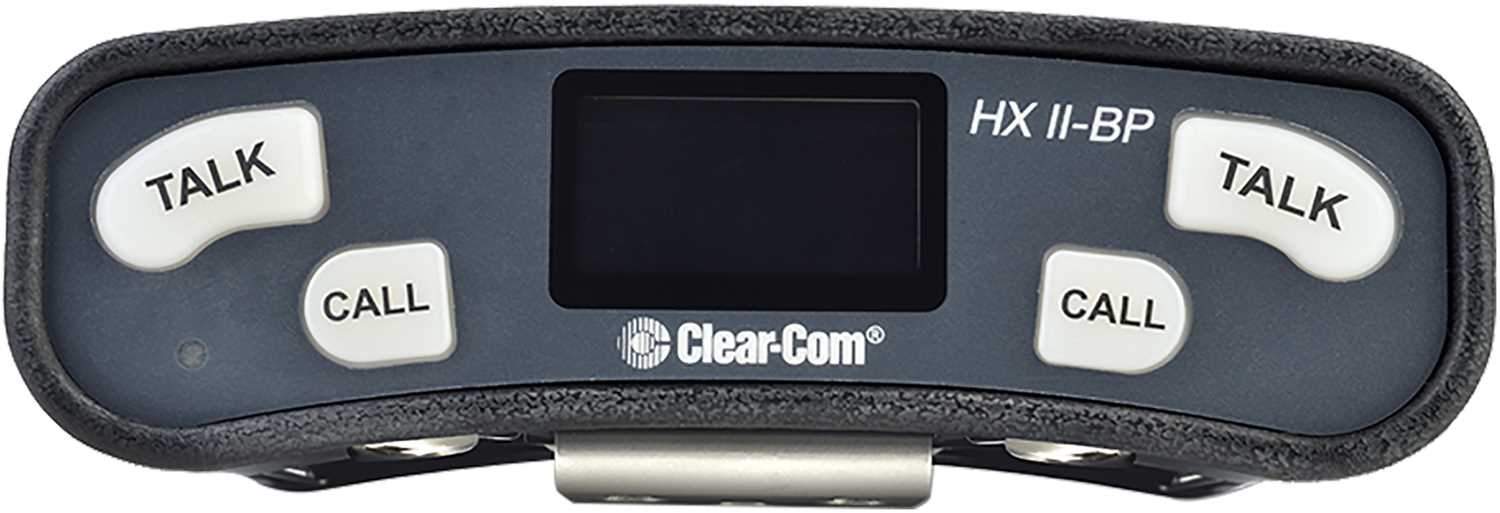

- 10-character yellow OLED label display
- USB flasher mode
- USB Micro-AB port

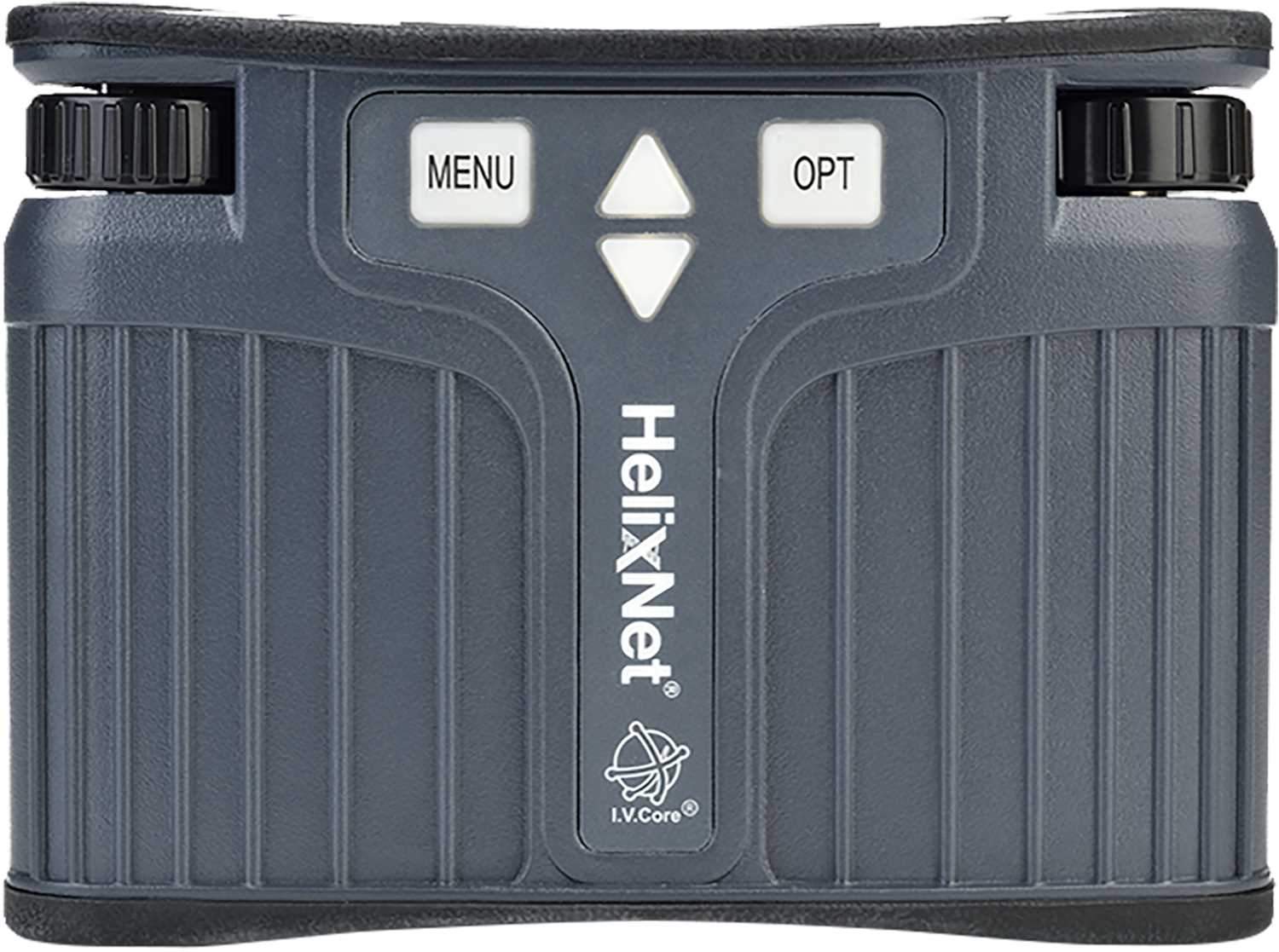

- Pushbutton menu access

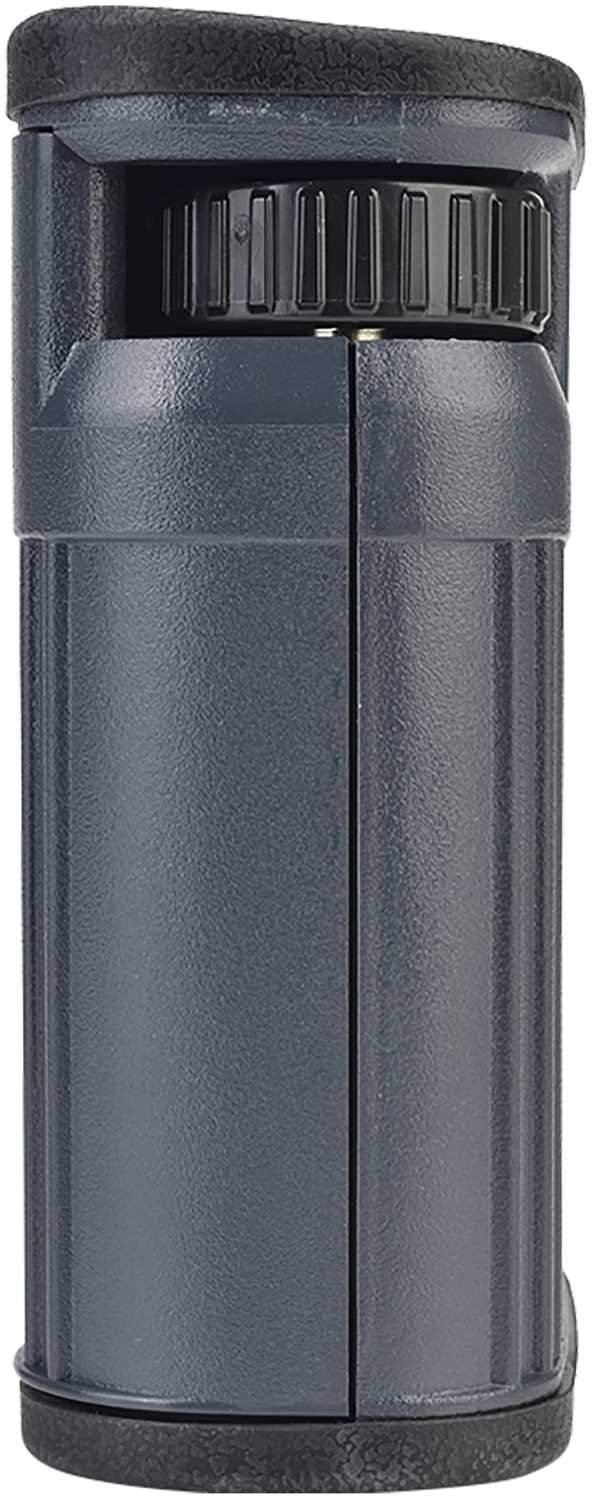

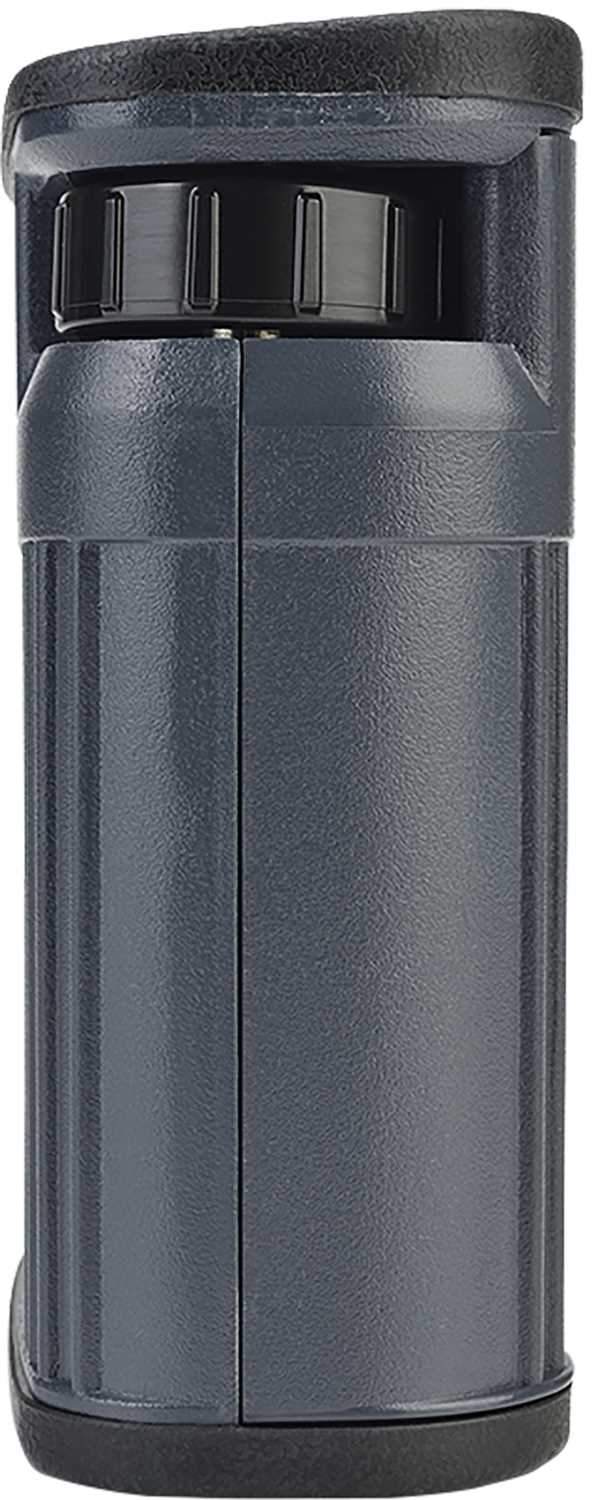

- Recessed level rotary knob controls
- XLR-4M headset jack
- Rugged, light-weight poly-carbonate casing
- IP-53 environmental rating for weather-proofing
Specifications:
Channels
- Two intercom channels (Selectable) Program Audio (Assignable from Main Station)

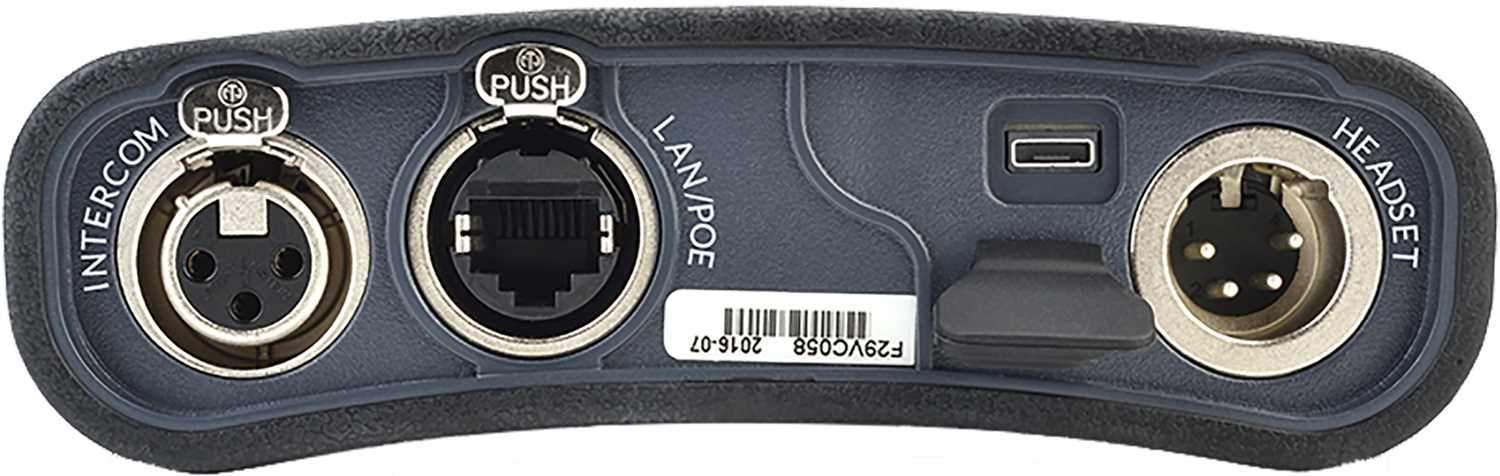

Connectors
- Intercom Line: 3-pin XLR–F
- LAN/PoE: RJ-45 etherCON
- Headset: 4-pin XLR–or 5-pin XLR-F
- USB: Micro AB
Microphone Pre-Amplifier
- Headset Mic Impedance: 200? (Dynamic)
- Headset Mic Voltage: 1.7V (Electret selectable)
- Limiter: +23dB
- The following specified for a route to four-wire output at 0dBu out
- Mic Gain: 60dB (Dynamic), 45dB (Electret)
- Frequency Response: 300Hz – 10 kHz ±3dB, contoured for Intelligibility
- Distortion: <0.2% THD @ 1kHz
- Noise: <-55dBu (Dynamic) <-65dBu (Electret)
Headphone Amplifier
- Load Impedance: >32?
- Output Level: +12dBu before clipping
- Sidetone: -12dBu (selectable)
- The following specified for a route from a four-wire input at 0dBu in
- Max Gain: 0dB
- Frequency Response: 40Hz – 10kHz ±3dB
- Distortion: <0.2% THD @ 1kHz
- Noise: -65dBu
- Headphone Limiter: 0dBu (selectable)
Power Requirements
- 4W DC Voltage Range: 30-60 volts 4W
- Power-over-Ethernet (PoE)
Environmental
- 32°F to +104°F (0°C to +40°C)
- 0 – 90% relative humidity
Dimensions
- 5.3 x 3.9 x 1.7 in (HxWxD)
- (135 x 99 x 43 mm)
Weight
- 12.2 oz (0.35 kg)
Description
