Chauvet DJ 4BAR Hex ILS RGBAW Plus UV Lighting System
Chauvet DJ 4BAR Hex ILS RGBAW+UV Lighting System

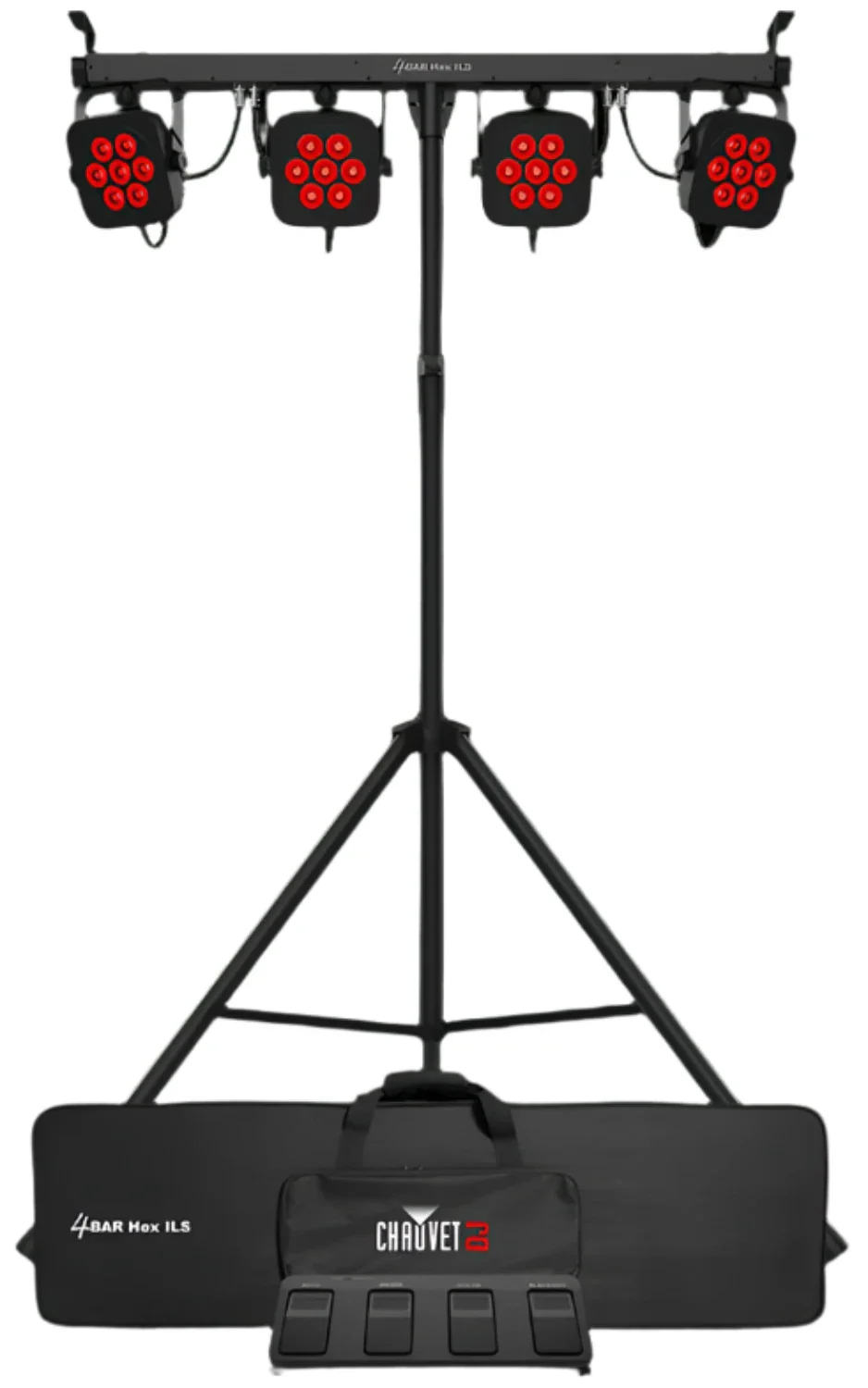

4BAR Hex ILS is a complete wash lighting solution fitted with high-intensity hex-color (RGBAW+UV) LEDs that can be controlled wirelessly right out of the box using the included footswitch or optional IRC-6 remote. ILS compatibility offers ultimate control flexibility and makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology. A tripod and carry bag are included for effortless setup and quick tear down.
Highlights
- Complete wash lighting solution fitted with high-intensity, hex-color (RGBAW+UV) LEDs
- ILS compatibility for use in the ILS ecosystem
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology
- Update the unit’s software from the built-in USB port
- Out of the box wireless control with included footswitch or optional IRC-6 controller
- Easily set up and tear down in minutes with the included tripod stand and carrying bags
- Achieve total room or stage coverage with 4 individually adjustable heads
- Increase mounting options by safely mounting to truss using built-in bolts
Specifications
- DMX Channels: 6, 8, or 27
- DMX Connectors: 3-pin XLR
- Max Unobstructed Distance: (foot switch): 100 ft (30.5 m)
- Light Source: 42 LEDs (hex color RGBAW+UV) 5.1 W, (2 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 16°
- Field Angle: 25°
- Illuminance: 1570 lux @ 2 m (per pod)
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 97 W, 1.3 A @ 120 V, 60 Hz94 W, 0.7 A @ 230 V, 50 Hz
- Weight: 12.2 lb (5.5 kg)
- Size: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
- Approvals: CE, RoHS, UKCA
- Footswitch battery: 9 V
- Operating Frequency (D-Fi): 2.412 to 2.484 GHz
- Operating Frequency (foot switch): 433 MHz
- Stand Height: 7 ft 4 in (2.2 m)
- Fits Tripod Sizes: 1.5 in (36.80 mm)
- Bracket Mounting Hole: M10 (1.5 mm pitch)
- Weight (Controller): 1.2 lb (0.6 kg)
- Size (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
- Optional Controllers: IRC-6, ILS Command
Original: $1,040.00
-65%$1,040.00
$364.00
