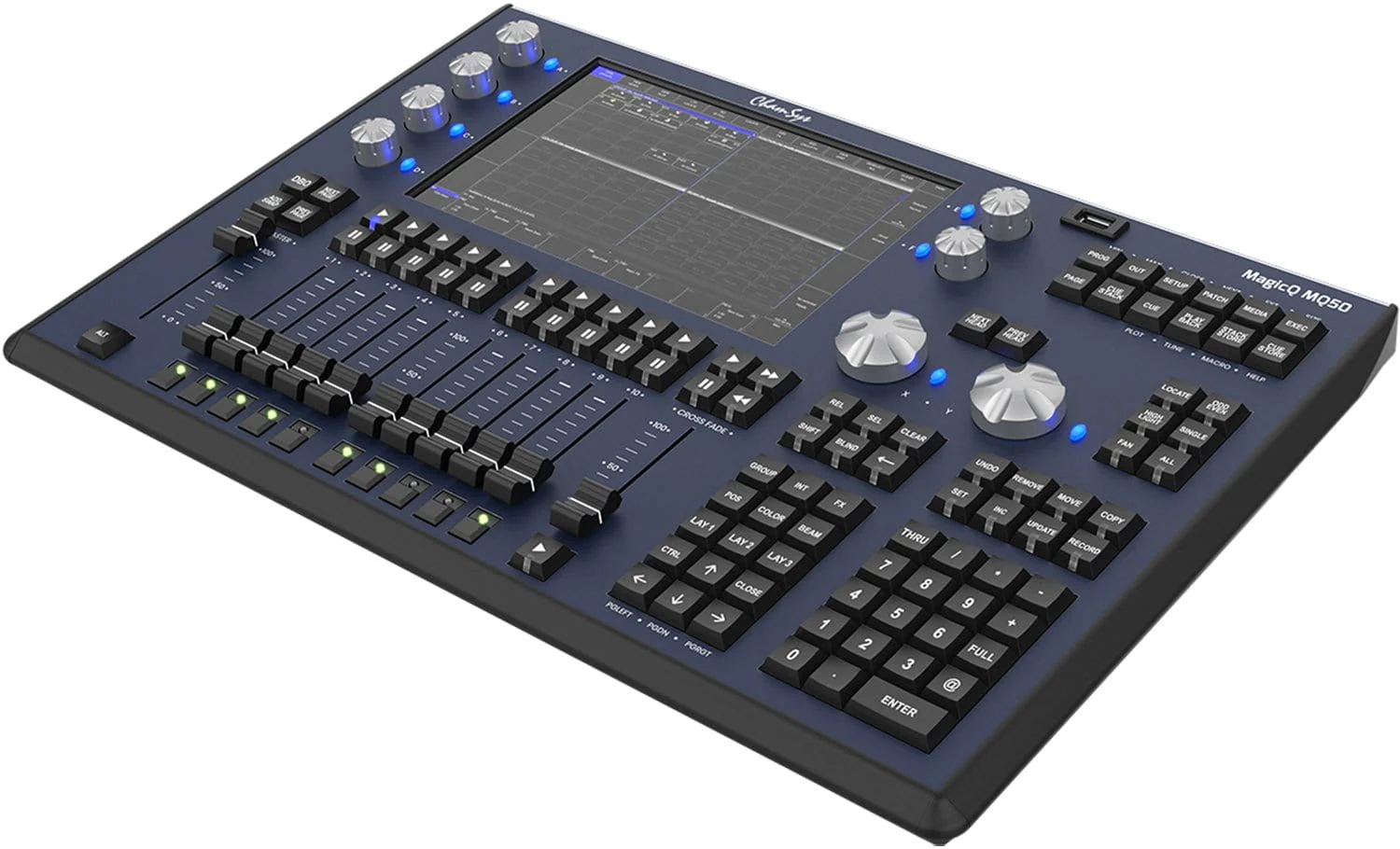

ChamSys MagicQ MQ50 Compact Console

ChamSys MagicQ MQ50 Compact Console

MagicQ MQ50 is part of the new generation of compact consoles, ideal for small to medium sized venues. The MQ50 features a 10.1” Multi touch display and ten full Cue Stack playbacks in a compact format. The console supports 6 universes, with 4 assignable physical DMX outputs supporting RDM and a network port for ArtNet and sACN output. This feature packed console also includes WIFI inbuilt to the console for quick and easy connection to ChamSys MagicQ Remote focus application without the need for external networking hardware or any networking knowledge. MagicQ MQ50 is simple and easy to use for installations, clubs and schools while still featuring advanced features such as MagicVis and MagicHD connectivity. It uses the same software and show formats, enabling compatibility between all products in the MagicQ range.

Features:

• 6 universes direct from the console
• High resolution 10.1" multi touch display
• In built WiFi for quick connection to MagicQ Remote App
• RDM support via direct DMX Ports and Network
• Silent operation, ideal for theatres

Specifications:

• Hardware Specifications:
  • Universes direct from the console (via Artnet/sACN/Pathport): 6
  • Direct DMX Outputs: 4
  • RDM Support: Yes
  • In-built WiFi: Yes
  • Playbacks: 10
  • Grand Master Fader: 1
  • Crossfade Master Fader: 1
  • Attribute Encoders: 8
  • Network Ports: 1
  • Inbuilt 10.1" HD Multi-Touch Display: 1
  • External Monitor up to 1920x1200 Resolution - HDMI: 1
  • USB Ports: 5
  • Audio Input (1 channel, 7 band): Yes
  • Audio Output: Yes
  • MIDI Ports: 1 in, 1 out (Notes Only)
  • Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
• Boxed Weights and Dimensions:
  • Width: 680mm (26.7 inches)
  • Depth: 290mm (11.4 inches)
  • Height: 500mm (19.6 inches)
  • Weight: 10kg (22 lb)
• Console Weights and Dimensions:
  • Width: 525mm (20.6 inches)
  • Depth: 350mm (13.7 inches)
  • Height: 60mm (2.3 inches)
  • Weight: 7kg (15.4lb)
• Software Specifications:
  • Max Number of DMX Channels: 3072
  • Max Number of Fixtures Supported: 3072
  • Max Number of Cues: 5000
  • Max Number of Cue Stacks: 2000
  • Max Number of Groups: 5000
  • Max Number of Palettes: 4096
  • Number of Media Server Layers Supported: 50 (each different content)
  • Numbers of Shows: Virtually unlimited
• Included Accessories:
  • Dual Colour Desk light: 1
  • Dust cover: 1
  • Neutrik powerCON TRUE1 Power Cable: 1
• Flight Cased Weights and Dimensions:
  • Width: 680mm (26.7 inches)
  • Depth: 290mm (11.4 inches)
  • Height: 500mm 19.6 inches)
  • Weight (console in flightcase): 17kg (37.4 lb)
