ADJ American DJ PAR-Z100-3K2 100 Watt 3K WW LED with Wired Digital Communication Network
ADJ American DJ PAR-Z100-3K2 100 Watt 3K WW LED Par with Wired Digital Communication Network

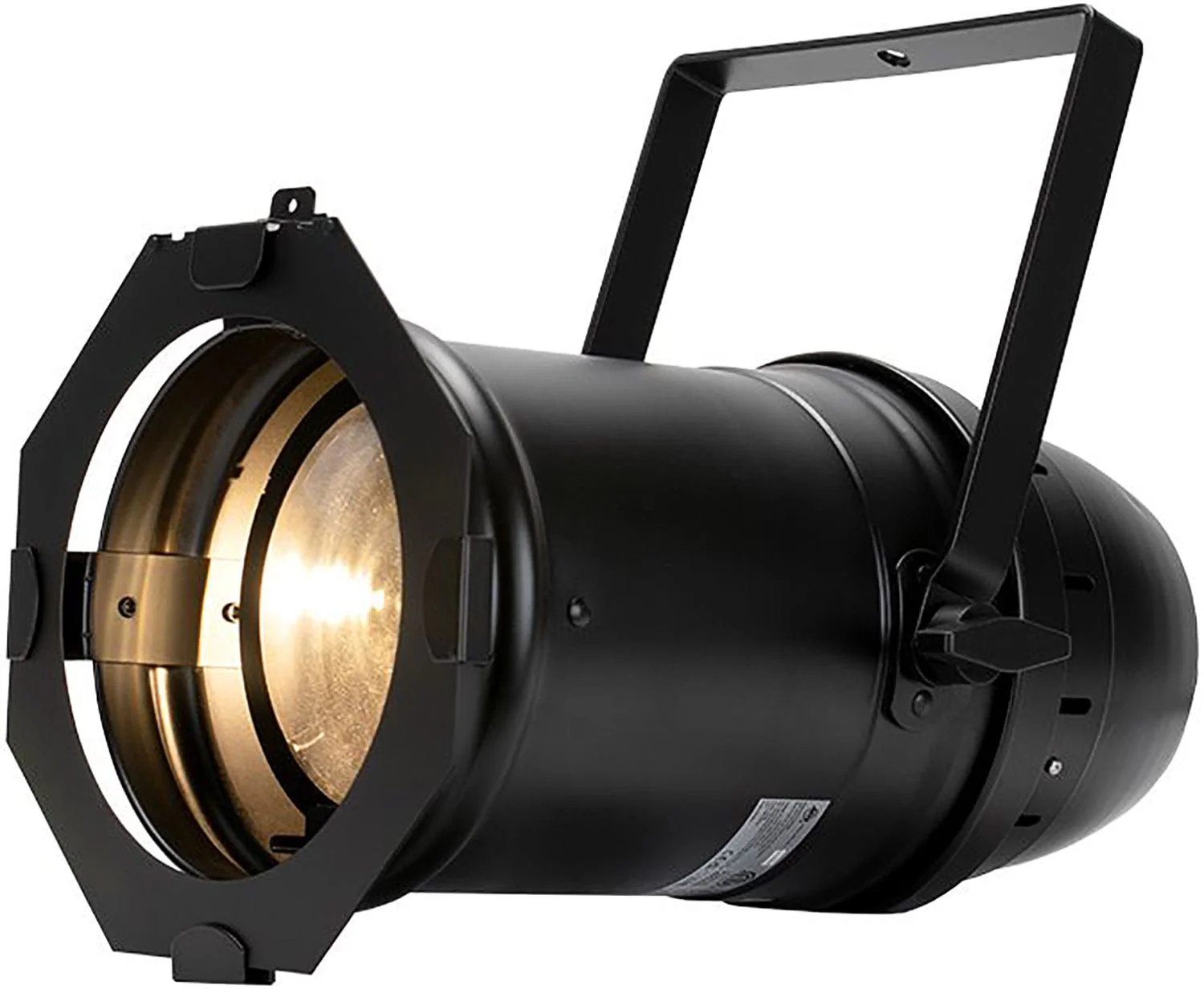

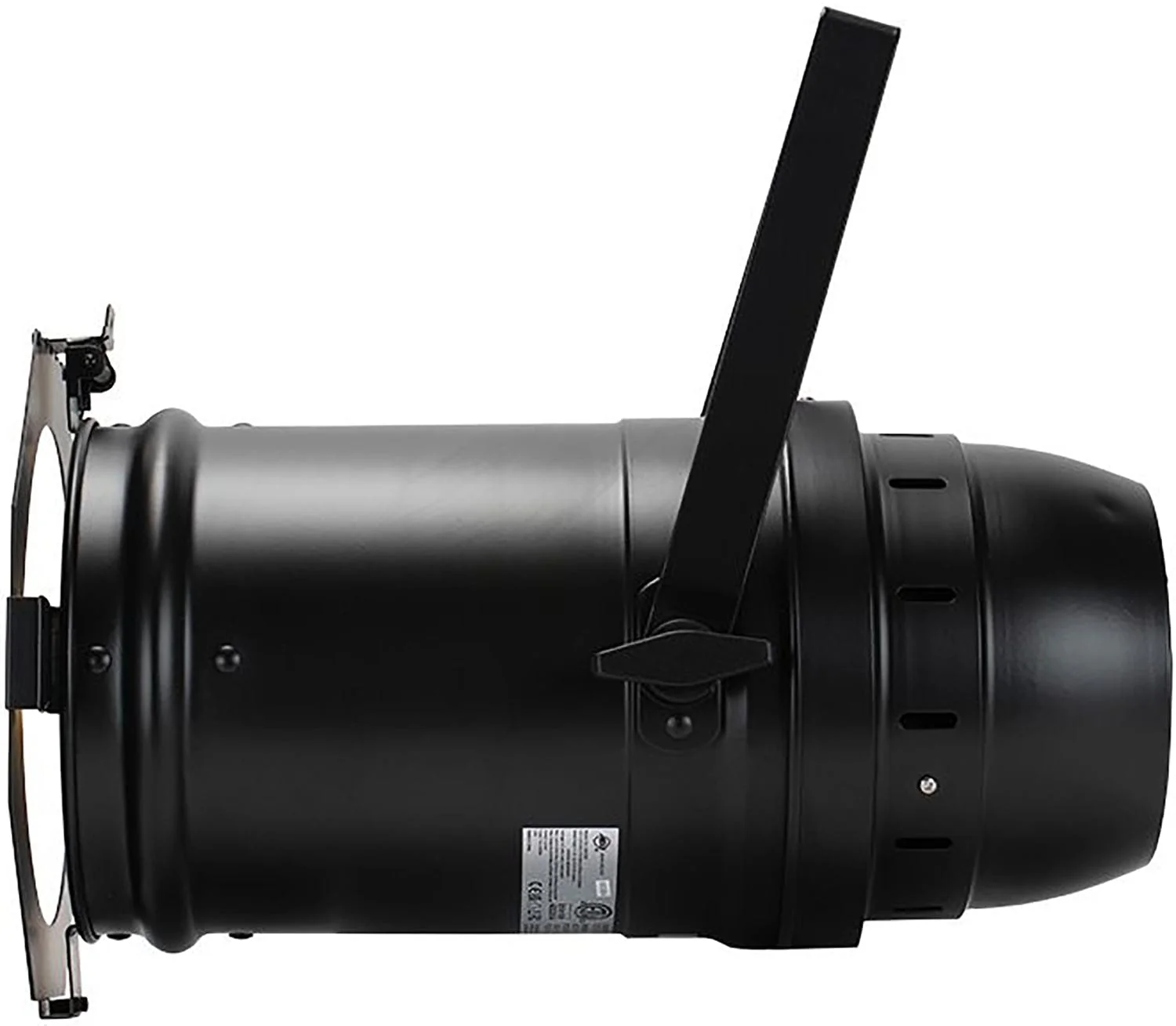

The Par Z100 3K2 combines the aesthetic appeal of a traditional stage par can with the contemporary advantages of LED technology. It runs on a 100-Watt, 3000K Warm White C.O.B. LED engine boasting a CRI exceeding 90. With 5 manually adjustable zoom beam angles, along with DMX In/Out and locking power In/Out, the fixture facilitates the seamless connection of multiple units for permanent or temporary use.
Features:

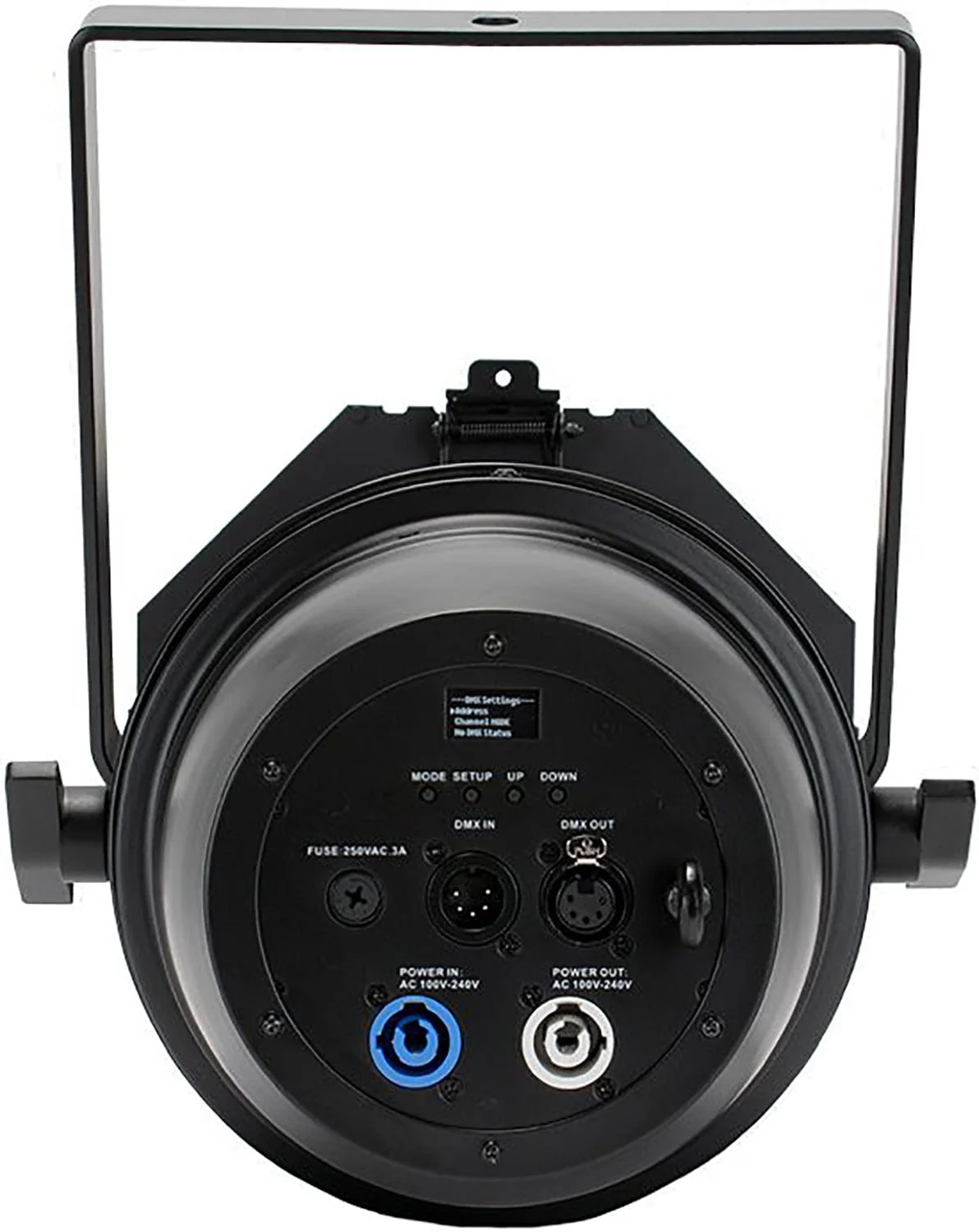

- 4-button DMX menu display on rear panel
- OLED display
- Adjustable latch to manually change beam angle

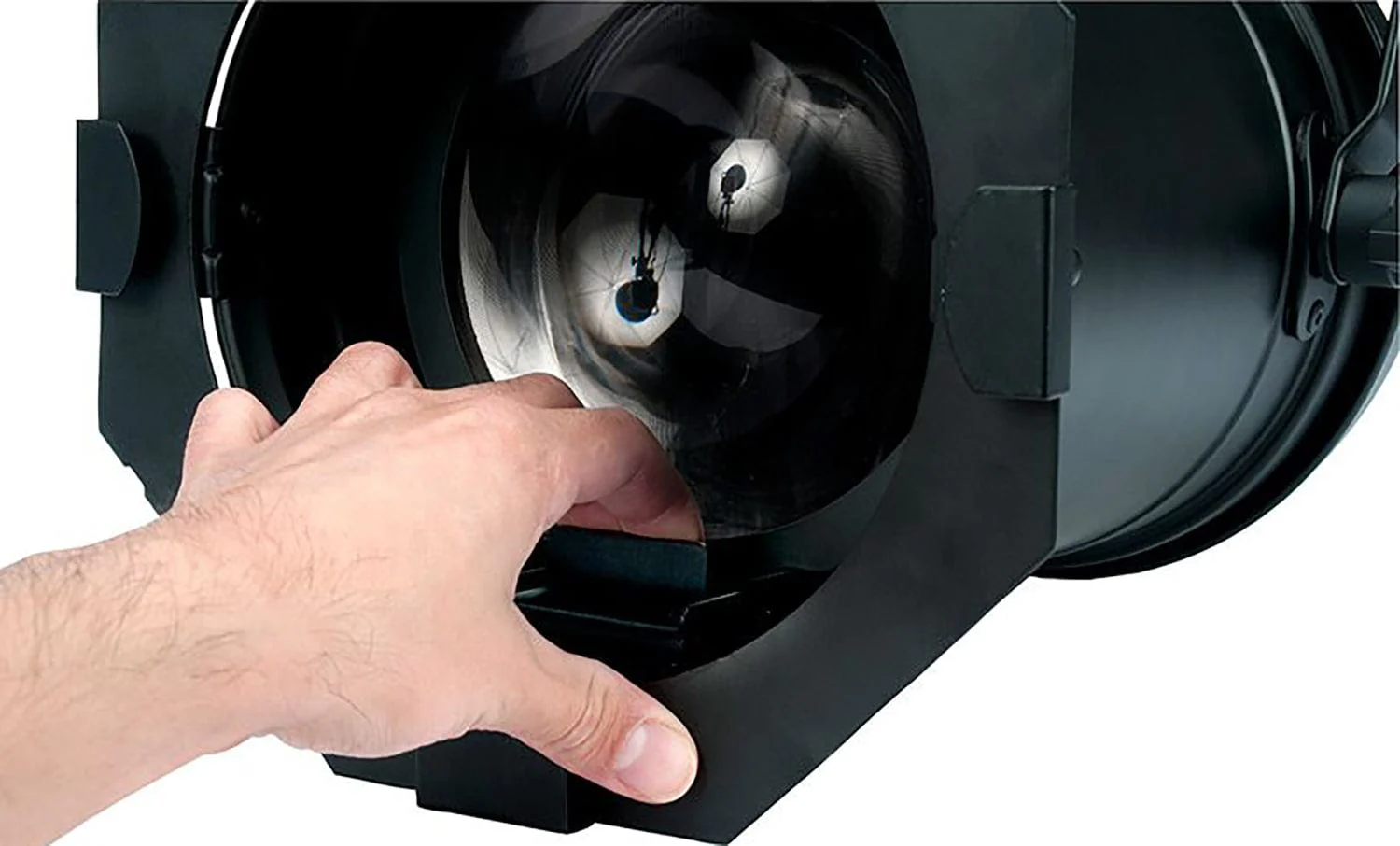

- Includes gel frame for diffusion filters (Diffusion filter sold separately)
- Strobe Rate: 0.6Hz to 7.5Hz
- Refresh Rate: 1.2KHz
- Electronic Dimming: 0 - 100%
- 6 Dim Modes
Specifications:
- Optical:
- 100-Watt, 3000K Warm White C.O.B. LED (Chip On Board)
- Life expectancy: rated at 50,000 hrs.
- Manual Zoom: 9°, 15°, 20°, 25° or 30°
- Zoom Ratio: 3.3:1
- Photometrics:
- 5885 Lux (Zoomed In to 9° @ 5 meters)
- 767 Lux (Zoomed Out to 25° @ 5 meters)
- CRI: >90
- Connection:
- DMX: 5-pin DMX In/Out
- With Wired Digital Communication Network
- Locking power In/Out connections
- Control:
- DMX-512
- 3 DMX control modes: (1, 3 & 4 Ch. modes)
- RDM and RDM Net Compatible
- Primary/Secondary, stand-alone mode
- On-board manual control mode
- Electrical:
- Power Draw Total (@ Full On): 115W
- Power Consumption: 0.964A @ 120V/60Hz ; 0.5A @ 220V/50Hz
- Multi-voltage operation: AC 100-240V, 50/60Hz
- Daisy chain: 12 fixtures @ 120V; 22 fixtures @ 230V
- Fuse protected: 3A/250V
- Ambient Temperature Range (For Use):
- -4° ~ 113°F (-20°C ~ 45°C)
- Storage Temperature Range:
- -22° ~ 113°F (-30°C ~ 45°C)
- Dimensions / Weight:
- Dimensions (LxWxH): 19.25” x 10.94” x 10.68” / 489 x 277.7 x 271.1mm
- Weight: 7.94lbs. / 3.6kg.
- IP Rating / Approvals:
- IP20
- CE & FCC
- ETL Approved (4002034)
