ADJ American DJ DS4QC1 Top Left Quarter Circle Video Panel
ADJ DS4QC1 Top Left Quarter Circle Video Panel

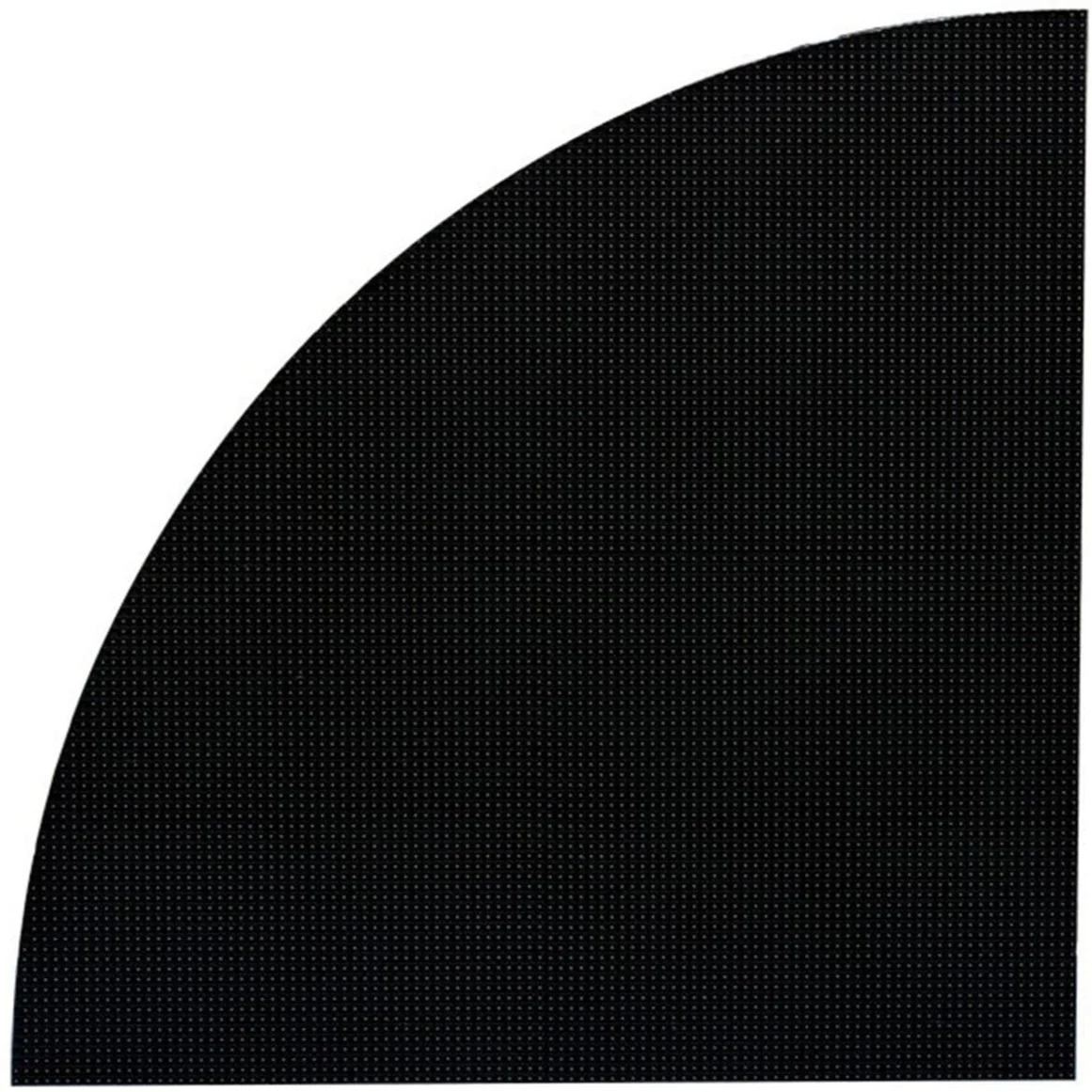

4.8 pixel pitch, 500x500mm, quarter circle LED section 1 for creative displays.

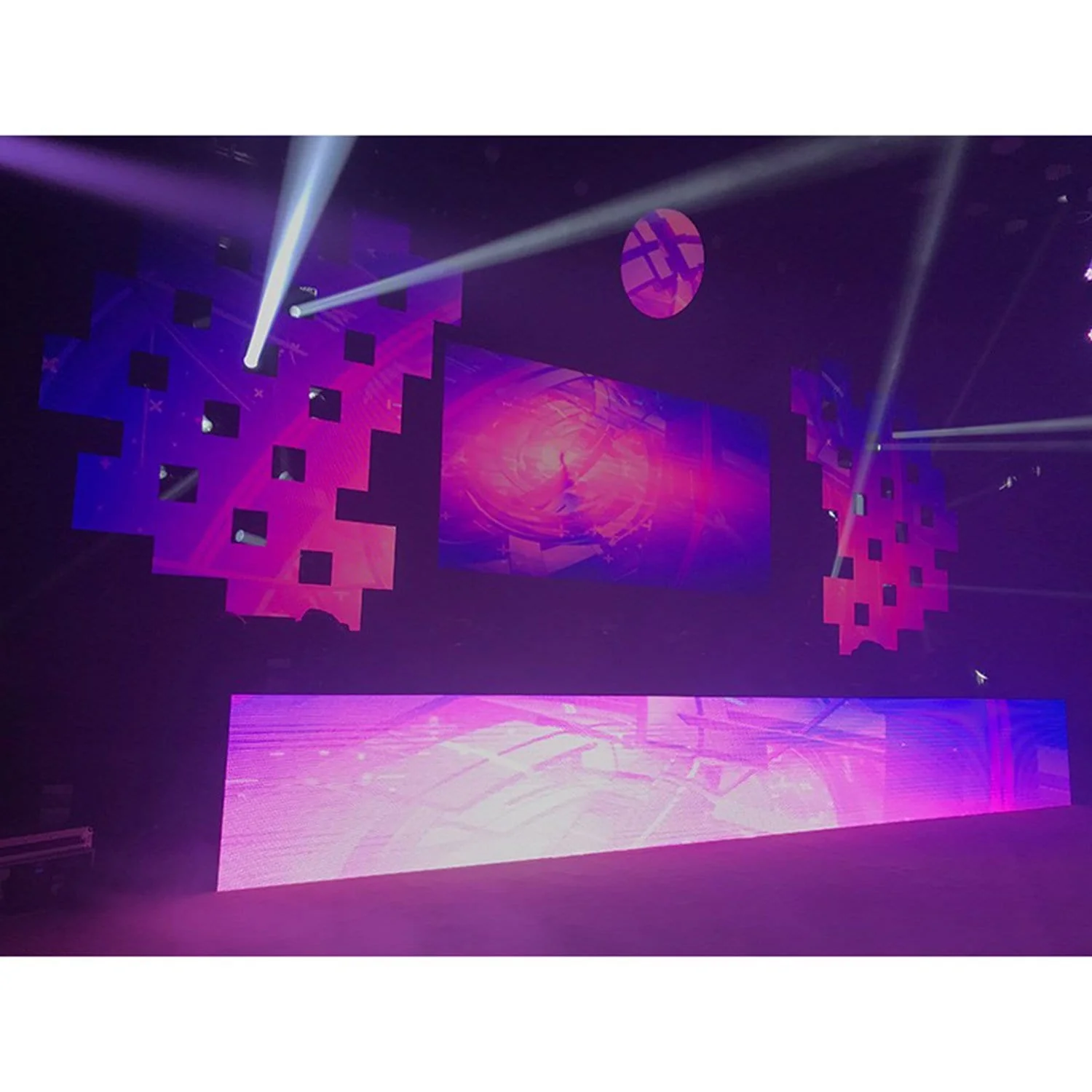

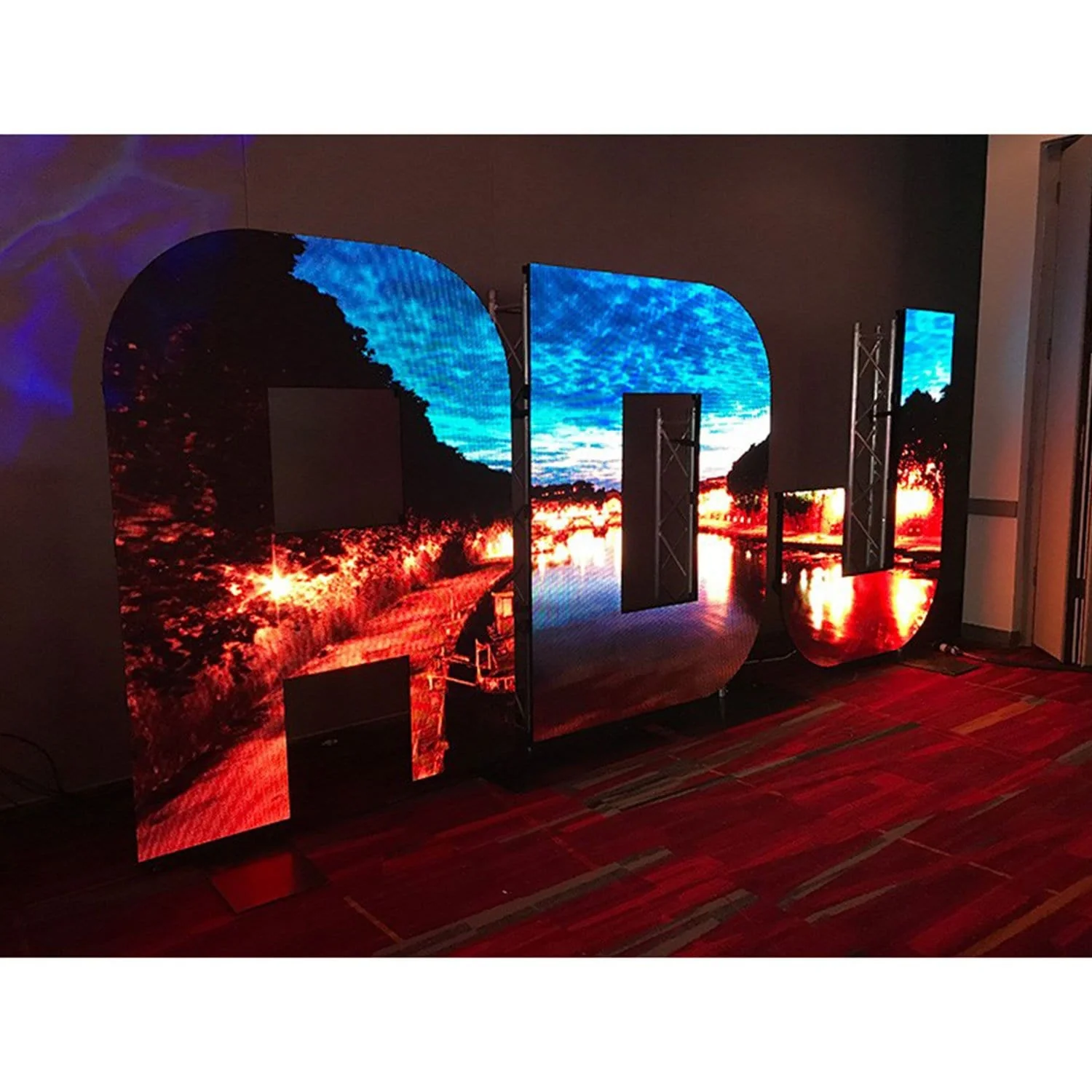

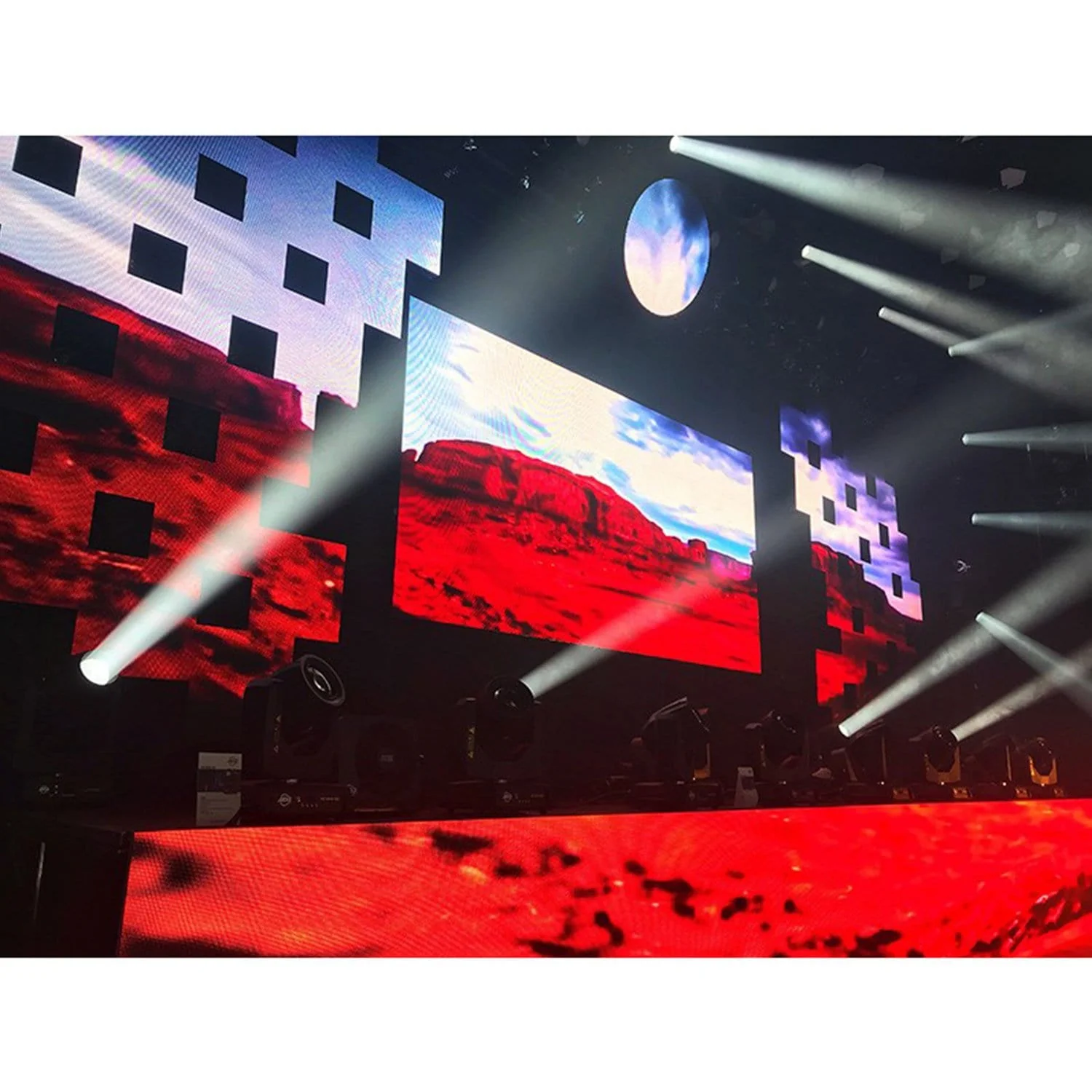

Having enjoyed huge success with the AV Series of LED video panels over the last few years, ADJ will use this year’s LDI to launch a brand new video panel range, the Design Series. This innovative system comprises four modular panels of different shapes that can be combined together to create video screens of almost any conceivable shape. The DS4 (square), DS4T (triangle), DS4QC (quarter circle) and DS4HC (rectangle) can be easily linked together, rigged and transported using an expansive collection of accessories, allowing unique and eye-catching screen configurations of any size to be created for fixed installations and touring productions. Each panel is lighter in weight than most panels currently on the market, offers a 4.8mm (0.19") pixel pitch and brightness of 1200 NITS as well as a wide viewing angle of 160-degrees (horizontal) and 120-degrees (vertical), making them ideal for a wide variety of applications.
-
SPECIFICATIONS:
- Pixel Pitch: 4.8mm (0.19")
- LED Configuration: 3-in-1 SMD2020 LED
- Pixel Density: 104x104; 43,264 per square meter
-
MECHANICAL RATINGS:
- Surface Flatness: Gaps±0.3mm
-
OPTICAL RATINGS:
- Brightness: 1200 NITS
- View Angle: Horizontal 160°/Vertical 120°
- Distance: 12.5ft. (3.8m)
- Gray Scale / Display Color: 14Bit
- Brightness Adjustment: 0~100% 100 Levels
- Processing: 14-bit
-
POWER SUPPLY:
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 157.5W/per panel
- Average Power Consumption: 52.5W/per panel

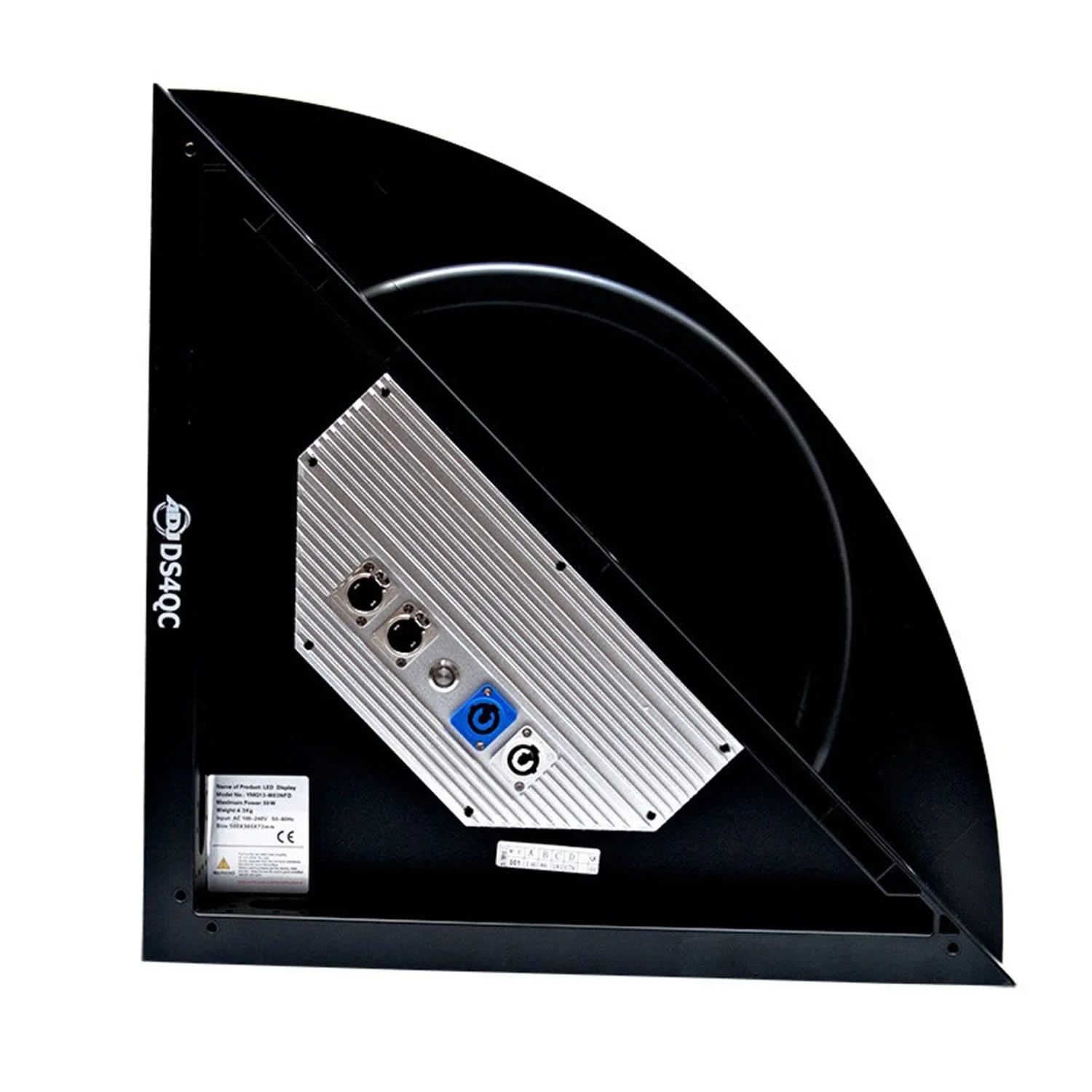

- Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out
-
CONTROL SYSTEM:
- Control Mode: Nova Star Synchronous System with Control via DVI
- Frame Update Frequency: 50-60Hz
- Scan Mode: 1/13 Duty
- Refresh Rate: 1920Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Control Distance: Ethernet Cable <100m or Fiber Optic>120m
- Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
- Brightness Correction: Pixel, Module, Cabinet
-
ENVIRONMENTAL:
- Operating Temp / Humidity: Fahrenheit: -20° + 45° / Celsius: 10-90% (No Condensation)
- Operating Life / MTBF: 80,000 Hours / 10,000 Hours
- Out of Control Rate: <0.003%
- Listings: CE, FCC, ETL
