RCF CR 16-ND Control Rack - 10 RU (Includes RDNet Control 8 / DX 1616 Matrix Audio Processor)

RCF CR 16-ND Control Rack - 10 RU

The CR 16-ND is a 10 Unit flight case designed to control the HDL 50-A line array system. The CR 16-ND includes one Control 8 that manages the RDNet connection to up to 256 devices, one DX 1616 matrix processor that takes care of audio signals routing and processing and one CP 16 control panel to bring audio and control signals to 4 x LK 25 multipin outputs. Each LK 25 has four audio channels, two RDNet channels and two spare sends. Each signal is doubled to XLR redundant outputs. Dual Switch not included.

RDNet Control 8

The RDNet Control 8 is a real-time monitor and control system capable of managing up to 256 devices linked in a bus or up to 128 devices in a ring topology. All data collected from the slaves are delivered to the sound engineer via USB in a local installation or through Ethernet from remote locations. The interface can be directly connected to the DSP on board of every TT+ line array module through the exclusive RDNet protocol, enabling the addressing of single cabinets or groups for specific presets or modification parameters in real-time.

The key feature of RDNet Control 8 is its ability to ensure minimal refresh time (at least 5 times per second) for all system data performance metrics, including RMS signals, compressor activity, temperature, fan speed, warnings, and more. Data transfer can also be routed through the provided XLR connectors, allowing control of the system via traditional multi-cored cables.

DX 1616 Matrix Audio Processor

DX 1616 AES-Dante remote software. This network-based software designed for Microsoft Windows and Mac OSX allows the management of the DX 1616 Matrix Sound Processor. -Pre-Amp configuration, selecting source types like analog, AES/EBU, Dante -Designing Input groups for festival applications -Input source processing with EQ, delay and compressor -Powerful 16x16 router to assign processing tasks to flexible output patches.

Features:

RCF CR 16-ND Control Rack - 10 RU:
- 10 RU flight case on shock mounts
- DX 1616 matrix audio processor
- CONTROL 8 master unit
- CP16 control panel
- 16 analog audio inputs, 16 analog audio outputs
- 8 AES/EBU inputs - 8 AES/EBU outputs
- Dante input
- 4 x LK 25 multicore audio/RDNet outputs
RDNet Control 8:
- Ethernet (remote control) and USB (direct control) PC connection to RDNet
- Control up to 8 SUB-NETS of up to 32 Slave Devices
- All devices are cyclically scanned (“POLLING”) 10 times a second
- Auto detect device placement
- Controlling slave devices status and functions
- Monitoring and displaying faults and warnings sent from slave devices
- Storing subnet user filters configuration in a removable memory card
DX 1616 Matrix Audio Processor:
- Hybrid architecture DSP
- 48 kHz sampling, 40-bit floating point engine
- 16 x 16 I/O matrix
- Dante-enabled network audio transport
- 8 AES/EBU inputs - 8 AES/EBU outputs
- Ethernet connectivity and control
- Maximum latency 3 ms
- Easy-to-use software GUI

Specifications:

RCF CR 16-ND Control Rack - 10 RU:
- Rack Unit: 10
- Analog Audio Inputs: 16
- Analog Audio Outputs: 16
- AES/EBU Inputs/Outputs: 8
- Dante Input: Yes
- Master Unit: 8
- RDNet: Yes
- Weight: 57 kg / 125.66 lbs
RDNet Control 8:
- Number of Subnets: 8
- Connectors: RJ 45, XLR
- Max Number of Devices (for each subnet): 32
- Configuration: PC software
- PC Connection: USB (Type B), Ethernet
- Data Storage: SD card (max. 4 GB)
- Operating Voltage: 90-240 V~ 50/60Hz
- Power Consumption (W): 15
- RDNet: Yes
- Cabinet/Case Material: Metal
- Color: Black
- Rack Mounting: 19", 1U
- Height: 44 mm / 1.73 inches
- Width: 482 mm / 18.98 inches
- Depth: 182 mm / 7.17 inches
- Weight: 2.71 kg / 5.97 lbs
DX 1616 Matrix Audio Processor:
- Audio Performance:
  - Frequency Response (-3dB): 20 Hz ÷ 22 kHz
  - Crosstalk (on the whole bandwidth): <-100 dB
  - Distortion (THD+N) @ 1 kHz nominal power: <0.001 %
  - Dynamic Range: >110 dB
  - Common Mode Rejection Ratio (50 Hz to 10 kHz): >100 dB
- Digital Audio Performance:
  - Resolution: 40-bit
  - Sampling Rate: 48 kHz
  - A/D - D/A Converters: 24-bit
  - Propagation Delay: 3 ms
- Input Section:
  - Total Number of Inputs: 17
  - Balanced: 17
  - Mono: 16
  - Mic+Line Inputs: 16
  - Mic+Line Connectors: Euroblock
  - Mic+Line Phantom: 21 V DC - 44 V DC
  - Digital Inputs: 1
  - Digital Connectors: RJ45
  - Digital Type: DANTE
- Output Section:
  - Signal Output Number: 16
  - Signal Output Connectors: Euroblock
- Processing:
  - DSP: Yes
  - EQ Filters: Yes
  - Delay: Yes
  - Tone Controls: Yes
  - High-pass Filter: 20 Hz ÷ 20 kHz
  - Crossover: 20 ÷ 20 kHz
- Controls:
  - Configuration: PC Software
  - Number of Programs/Presets: 70
- Protections:
  - Cooling: Convection/Forced
  - Fuses: Yes
- Power Requirement:
  - Operating Voltage: 90-240 V~ 50/60Hz
  - Power Consumption: 20 W
- Standard Compliance:
  - Safety Agency: CE compliant
- Physical Specifications:
  - Cabinet/Case Material: Metal
  - Color: Black
  - Rack Mounting: 19", 1U
  - Size
    - Height: 44 mm / 1.73 inches
    - Width: 483 mm / 19.02 inches
    - Depth: 229 mm / 9.02 inches
  - Weight: 3.31 kg / 7.3 lbs

Digital Snakes & Stage Boxes

PreSonus NSB 16.8 16x8 AVB Networked Stage Box

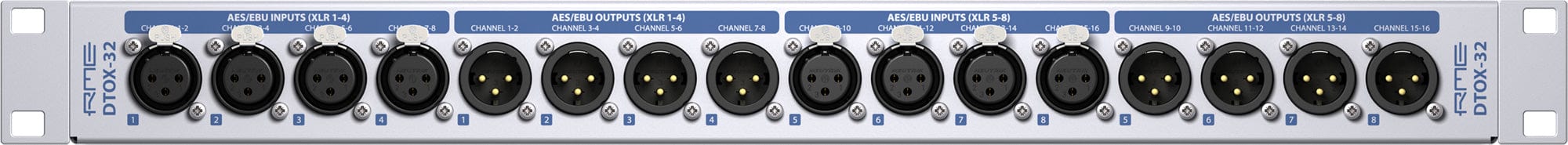

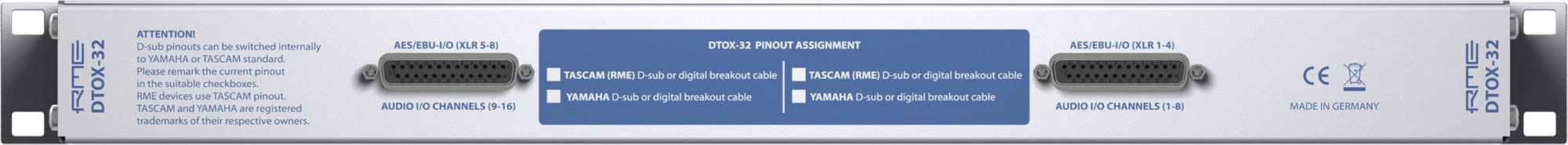

RME DTOX32 Digital AES/EBU Breakout Box- 8 XLR In / 8 XLR Out to 2xD-Sub

Presonus NSB32.16 32-Channel AVB Networked Stage Box

RCF CR 16-ND Control Rack - 10 RU (Includes RDNet Control 8 / DX 1616 Matrix Audio Processor)

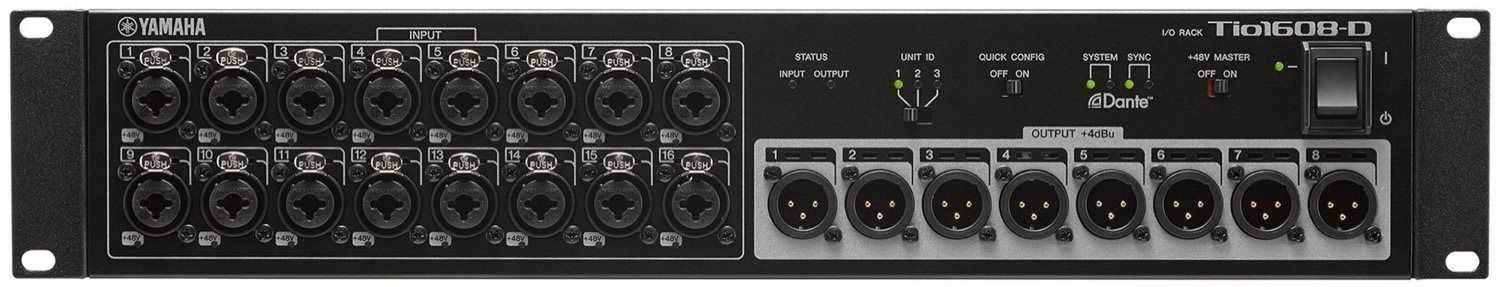

Yamaha Tio1608-DI/O Rack
