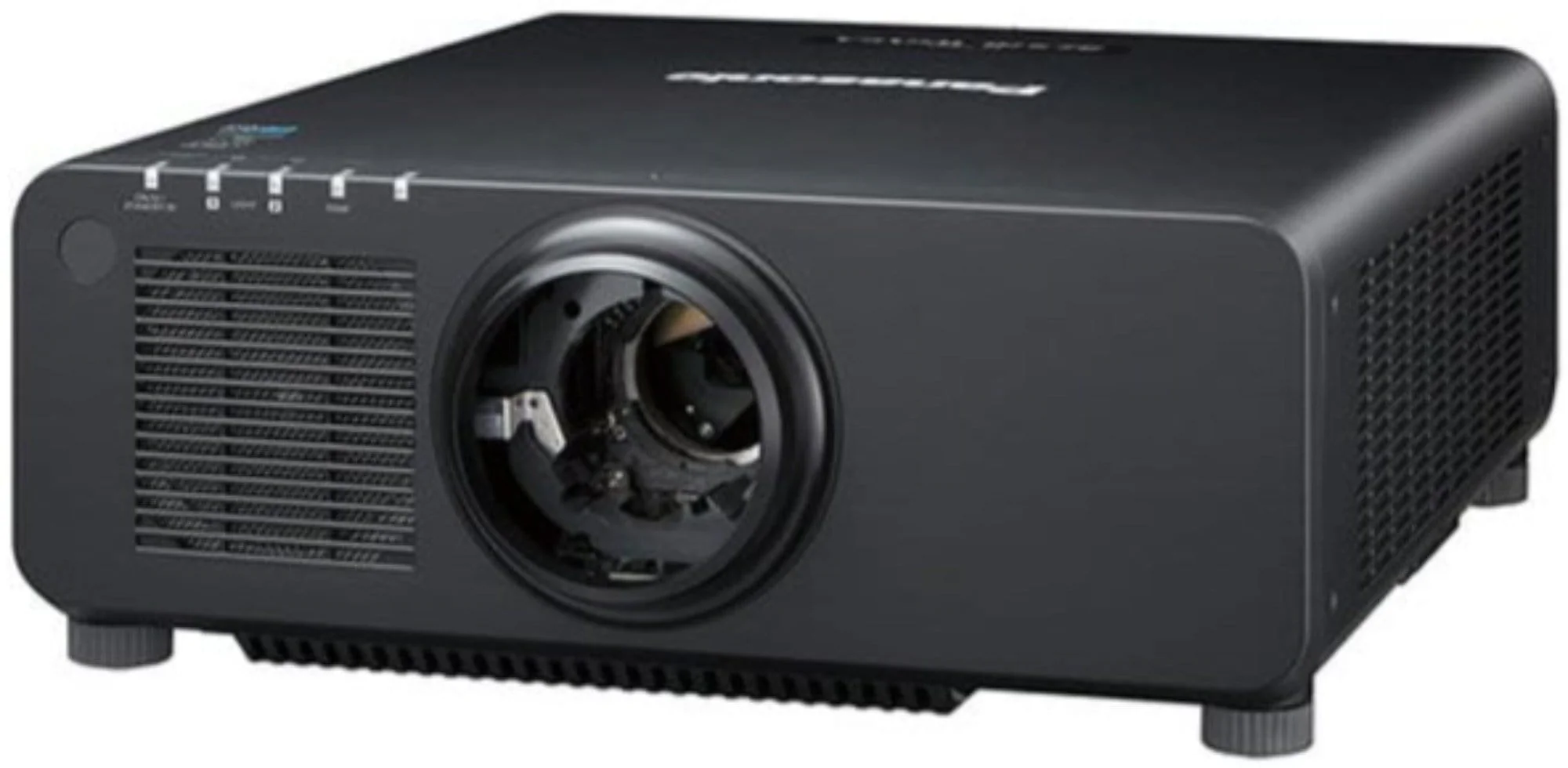

Panasonic PT-RZ970 10K DLP 16:10 Video Projector

Available from January 2027

10,000 lumens-class compact Solid Shine laser projector Designed for intensive usage and long lasting brightness in education, museums, exhibitions and digital signage applications.

Features:

Laser 1-chip DLP, 10000 lumens (centre), WUXGA
High brightness and excellent image quality with laser light source
Maintenance free up to 20000 hours with dust-resistant optical block and long lasting laser engine
Free 360 degrees installation and Geometric Manager Pro function
10,000:1 contrast ratio

Specifications:

Power Supply: AC100-240V 3.5A 50/60 Hz
Power Consumption:
- 1,050W
- NORMAL: 742W ECO: 617W LONG LIFE1: 410-588
- LONG LIFE 2: 375-588W LONG LIFE 3: 349-588W SHUTTER: 82W
- STANDBY MODE (ECO)*1: 0.2W STANDBY MODE (NORMAL): 3W
- STANDBY MODE (When the (QUICK STARTUP) function is enabled): Approx. 85 W
- *Operating Temperature: 25 °C (77 °F), Altitude: 700m (2,297 ft), ICE62087: 2008 Broadcast contents, Picture mode: Standard, Dynamic Contrast2
BTU Value: Max 3,584 BTU
Lens: Powered zoom/focus lenses (1.7-2.4:1), F 1.7-1.9, f 25.6-35.7 mm
Light Source:
- Laser Diode Laser class 1(Class3R for US models)
- Luminance life for set: 20,000 hours at half luminance (normal)/24,000 hours at half luminance (Eco)
- * Temperature: 30°C (86°F), Altitude 700m (2,297 ft), Dust: 0.15mg/m3
- Dynamic Contrast3
- 43,800 hours at constant luminance (LONG LIFE1)
- 61,320 hours at constant luminance (LONG LIFE2)
- 87,600 hours at constant luminance (LONG LIFE3)
Screen Size:
- 1.27- 15.24 m (50-600 inches) (16:10 aspect ratio)
- *1.27 - 5.08 m (50 - 200 inches) with the ET-DLE055 (16:10 aspect ratio)
- *2.54 - 7.62 m (100 - 350 inches) with the ET-DLE030 (16:10 aspect ratio)
Brightness*3:
- 10,000 lumens (Center)*2/ 9,400 lumens*3
- 9,400 lumens (Half luminance) (NORMAL)
- 7,500 lumens (Half luminance) (ECO)
- 3,700 lumens (Constant luminance) (LONG LIFE1)
- 3,100 lumens (Constant luminance) (LONG LIFE2)
- 2,500 lumens (Constant luminance) (LONG LIFE3)
Center-to-Corner Uniformity*3: 90%
Contrast*3: 10,000:1 (All White/All Black) (Dynamic Contrast3)
Resolution: 1920 × 1200 pixels
Scanning Frequency | SDI:
- 3G-SDI signal (RGB 4:4:4 12-bit/10-bit):
  - SMPTE ST 424 compliant: 1125(1080)/60i, 1125(1080)/50i,1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p,(2K/24p), (2K/25p), (2K/30p)
- 3G-SDI signal (YPBPR4:2:2 10-bit):
  - SMPTE ST 424 compliant: 1125(1080)/60p, 1125(1080)/50p,(2K/48p), (2K/50p),(2K/60p)
- HD-SDI signal (YPBPR4:2:2 10-bit):
  - SMPTE ST 292 compliant: 750(720)/60p, 750(720)/50p,1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p,1125(1080)/24sF, 1125(1080)/30p
- SD-SDI signal (YCBCR4:2:2 10-bit):
  - SMPTE ST 259 compliant: 525i(480i), 625i(576i)
Scanning Frequency | HDMI/DVI-D: fH: 15- 100kHz, fV: 24 - 120Hz, dot clock: 25 - 162 MHz 525i (480i)*4, 625i (576i)*4, 525p (480p), 625p (576p), 750 (720)/60p,750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/25p,1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/30p, 1125 (1080)/60p,1125 (1080)/50p, VGA (640 x 480) - WUXGA (1920 x 1200) compatible with non-interlaced signals only
Scanning Frequency | RGB: fH: 15- 100kHz, fV: 24 - 120Hz, dot clock: 20 - 162 MHz
Scanning Frequency | YPBPR (YCBCR): 525i (480i): fH 15.73 kHz; fV 59.9 Hz, 625i (576i): fH 15.63 kHz; fV 59.9 Hz, 525p (480p): fH 31.50 kHz; fV 60 Hz, 625p (576p): fH 31.25 kHz; fV 50 Hz, 750 (720)/60p: fH 45.00 kHz; fV 60 Hz, 750 (720)/50p: fH 37.50 kHz; fV 50 Hz, 1125 (1080)/60i: fH 33.75 kHz; fV 60 Hz, 1125 (1080)/50i: fH 28.13 kHz; fV 50 Hz, 1125 (1080)/25p: fH 28.13 kHz; fV 25 Hz, 1125 (1080)/24p: fH 27.00 kHz; fV 24 Hz, 1125 (1080)/24sF: fH 27.00 kHz; fV 48 Hz, 1125 (1080)/30p: fH 33.75 kHz; fV 30 Hz, 1125 (1080)/60p: fH 67.50 kHz; fV 60 Hz, 1125 (1080)/50p: fH 56.25 kHz; fV 50 Hz
Scanning Frequency | Video/S-Video:
- fH: 15.73 kHz, fV: 59.9 Hz (NTSC/NTSC4.43/PAL-M/PAL60)
- fH: 15.63 kHz, fV: 50 Hz (PAL/PAL-N/SECAM)
Optical Axis Shift:
- Vertical: +50%, -16%(powered),Horizontal: +30%, -10%
- (When using the ET-DLE085/DLE105, +28%, -10%) (powered)
- NOTE: Optical axis shift function cannot be operated when used with the ETDLE055.
- If using the ET-DLE030, the optical axis is fixed.
Installation: Ceiling/floor, front/rear, 360 degree free installation

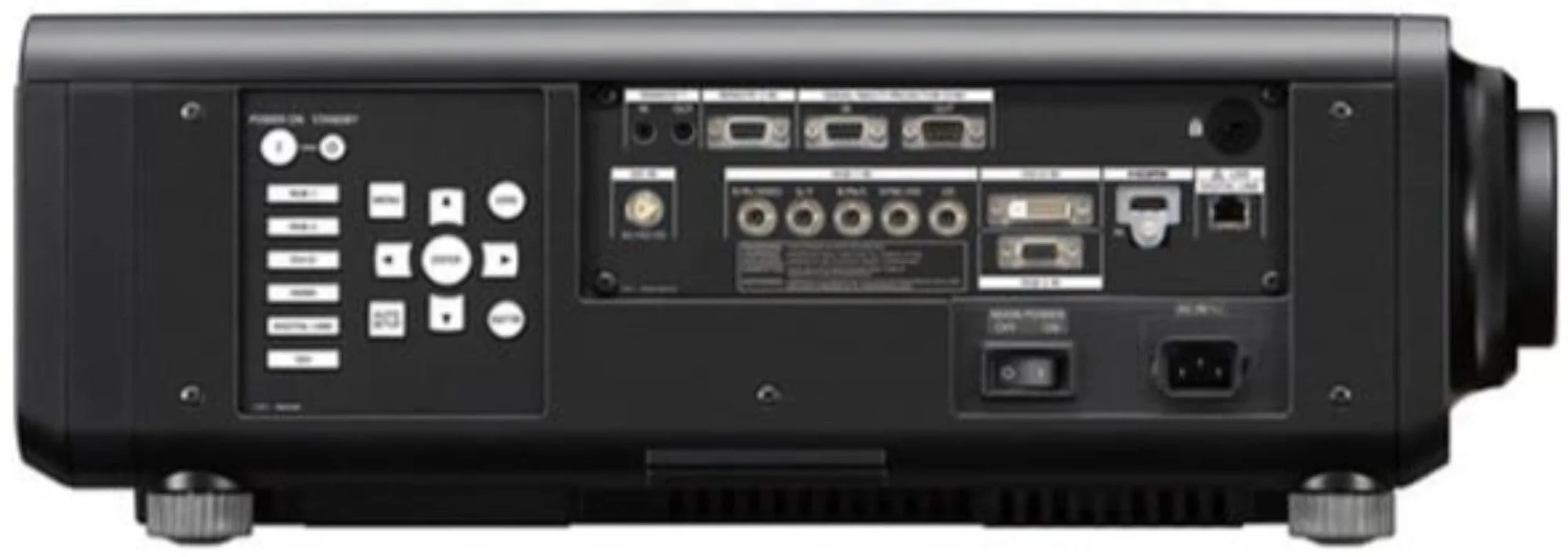

Terminals | SDI In:
- BNC × 1,
- 3G-SDI signal: SMPTE ST 424 compliant
- HD-SDI signal: SMPTE ST 292 compliant
- SD-SDI signal: SMPTE ST 259 compliant
Terminals | HDMI In: HDMI 19-pin × 1, Deep Color, compatible with HDCP
Terminals | DVI-D In: DVI-D 24-pin x 1, DVI 1.0 compliant, compatible with HDCP, for single link only
Terminals | RGB 1 In: BNC × 5
Terminals | RGB 1 In | R, G, B:
- R: 0.7 Vp-p, 75 ohms,
- G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms,
- B: 0.7 Vp-p, 75 ohms
- HD, VD/SYNC: TTL, high impedance, positive/negative automatic
Terminals | RGB 1 In | Y, PB, PR (Y, CB, CR): Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals | RGB 1 In | Y/C: Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
Terminals | RGB 1 In | Video: 1.0Vp-p, 75 ohms
Terminals | RGB 2 In: D-sub HD 15-pin (female) × 1
Terminals | RGB 2 In | R, G, B:
- R: 0.7 Vp-p, 75 ohms,
- G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms,
- B: 0.7 Vp-p, 75 ohms
- HD, VD/SYNC: TTL, high impedance, positive/negative automatic
Terminals | RGB 2 In | Y, PB, PR (Y, CB, CR): Y: 1.0 Vp-p (including sync signal), PB/PR(CB/CR): 0.7 Vp-p, 75 ohms
Terminals | Serial/Multi Projector Sync In: D-sub 9-pin (female) × 1 for external control (RS-232C compliant)
Terminals | Serial/Multi Projector Sync Out: D-sub 9-pin (male) x 1 for link control
Terminals | Remoter 1 In: M3 jack x 1 for wired remote control
Terminals | Remoter 1 Out: M3 jack x 1 for link control (for wired remote control)
Terminals | Remoter 2 In: D-sub 9-pin (female) x1 for external control (parallel)
Terminals | LAN/DIGITAL LINK: RJ-45 x 1 for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compliant with PJLink™(Class 1) Deep Color, HDCP
Power Cord Length: 3.0 m (9 ft 10 in)
Cabinet Materials: Molded plastic
Dimensions (W x H x D): 498 x 200*5 x 581mm (19-19/32 x 7-7/8*5 x 22-7/8in ) with supplied lens
Weight: Approx. 23.2kg (51.1lbs) with supplied lens
Operation Noise: 41dB (37dB(QUIET1) / 35dB(QUIET2))
Operating Temperature: 0-45 °C (32-113 °F) * 6
Operating Humidity: 10%-80% (no condensation)
Note:
- *1 When the STANDBY MODE is set to Eco, network functions such as power on over the LAN will not operate.
- *2 The value of the light output at the center region of the projected image is extracted based on the light output measurement method defined by the ISO/IEC 21118:2012 international standards. 21118 international standards.
- *4 Only compatible with dot clock frequency of 27 MHz (pixel repetition signal).
- *5 with legs at shortest position.
- *6 Limits the luminance when used in locations from 0m to 2,700m (0ft to 8,858ft) above sea level at ambient temperatures of 35°C (95°F) or higher, or from 2,700m to 4,200m (8,858ft to 13,780ft) above sea level at ambient temperatures of 25°C (77°F) or higher.
Brightness: 10.000 lumens (centre)/ 9.400 lumens
Technology: 1-Chip DLP Laser
DLP™ Chip | Panel Size: 17.0 mm (0.67 in) diagonal (16:10 aspect ratio)
DLP™ Chip | Display Method: DLP™ chip × 1, DLP™ system
DLP™ Chip | Pixels: 2,304,000 (1920 × 1200) × 1, total of 1,024,000 pixels
